Exhaust Manifold-LH: Installation

    NOTE: Tighten in the sequence shown.

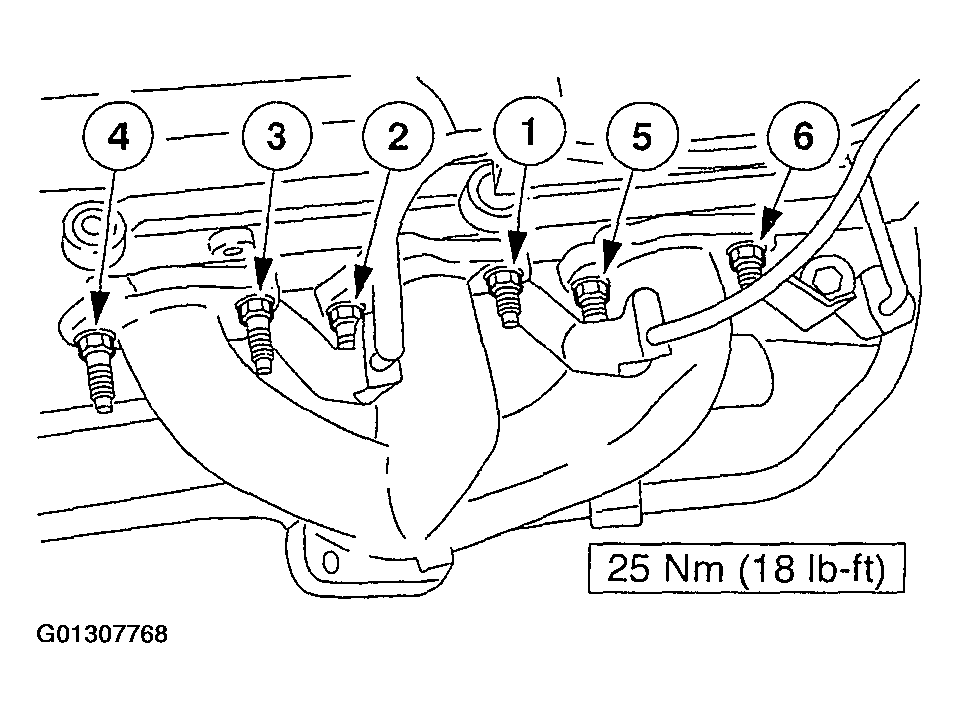

    Fig 1: Exhaust Manifold Bolt Tightening Sequence
    G01307768Courtesy of FORD MOTOR CO.

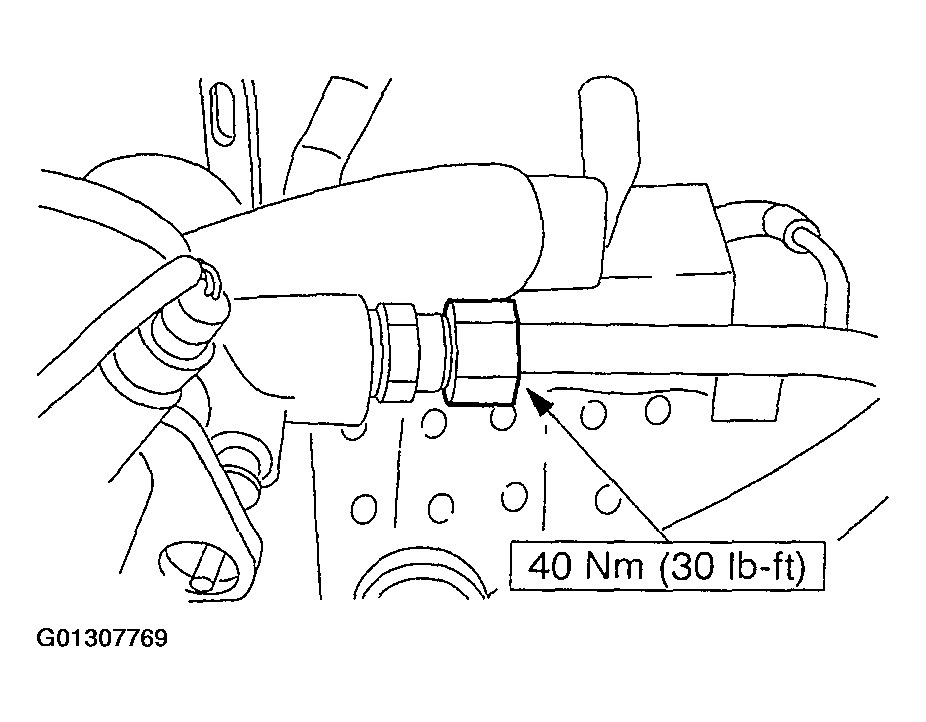

    Fig 2: EGR Tube Tightening Torque
    G01307769Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
