Home › Ford › 2003 › Windstar Limited › Repair and Diagnosis › Engine Mechanical › Mechanical › Engine › In-Vehicle Repair › Exhaust Manifold-RH › Installation

Exhaust Manifold-RH: Installation

  1. To install, reverse the removal procedure.
    NOTE: Tighten in the sequence shown.

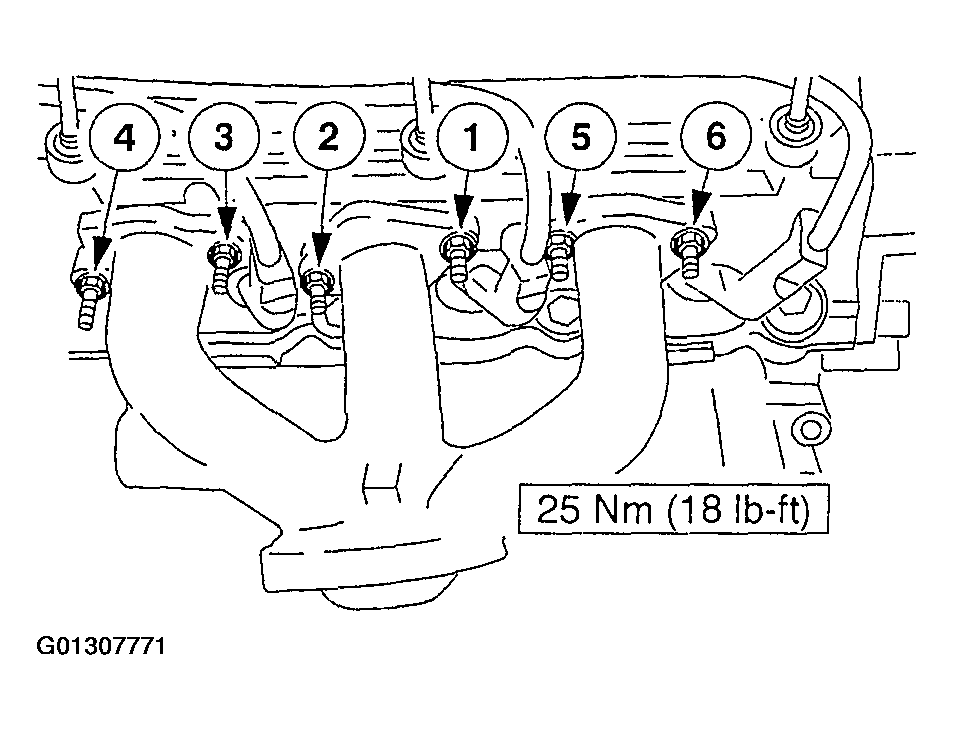

    Fig 1: RH Exhaust Manifold Nut Tightening Sequence
    G01307771Courtesy of FORD MOTOR CO.
