Engine-Upper Components

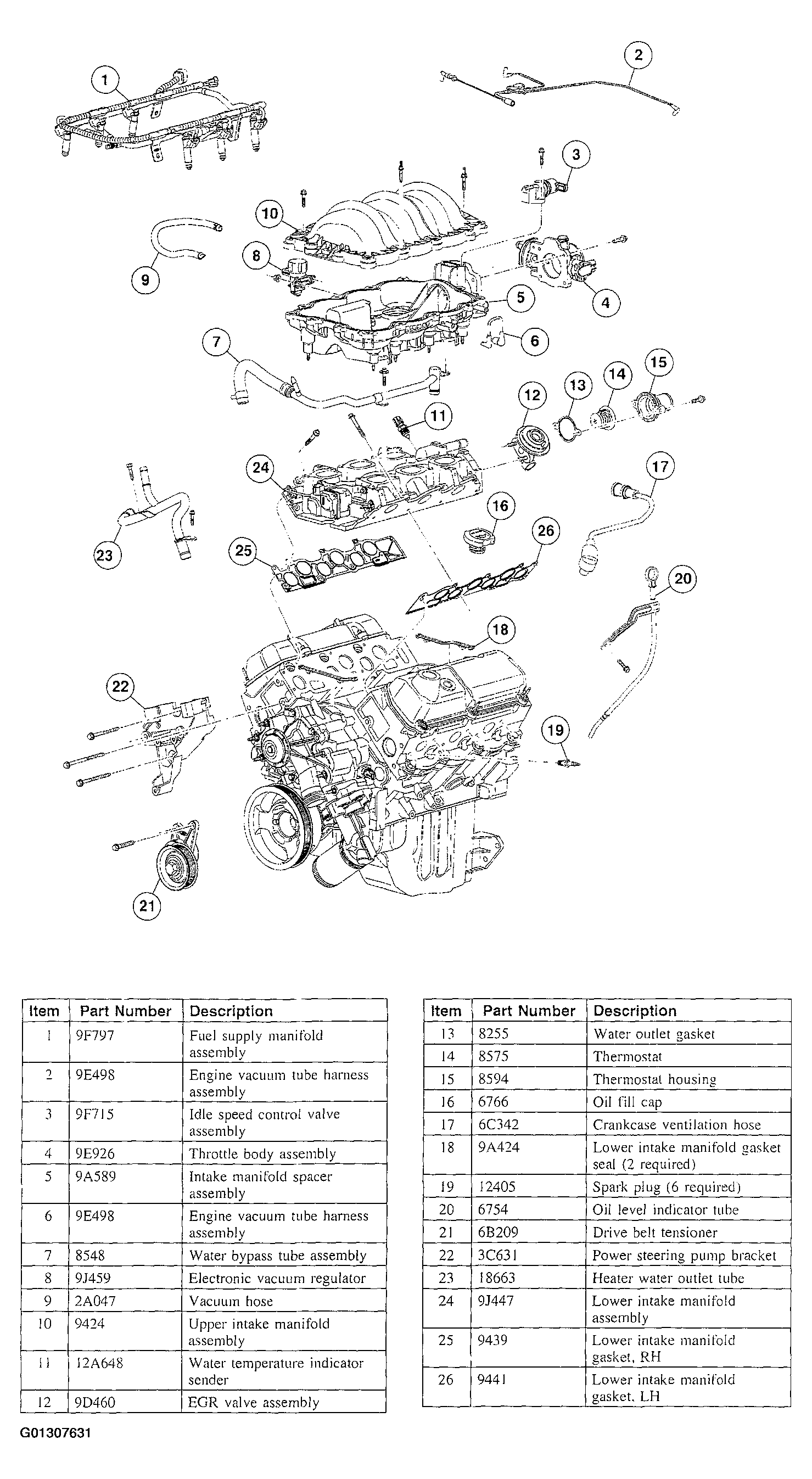

Fig 1: Exploded View Of Engine-Upper Components
G01307631Courtesy of FORD MOTOR CO.
