Electronic Component Locator

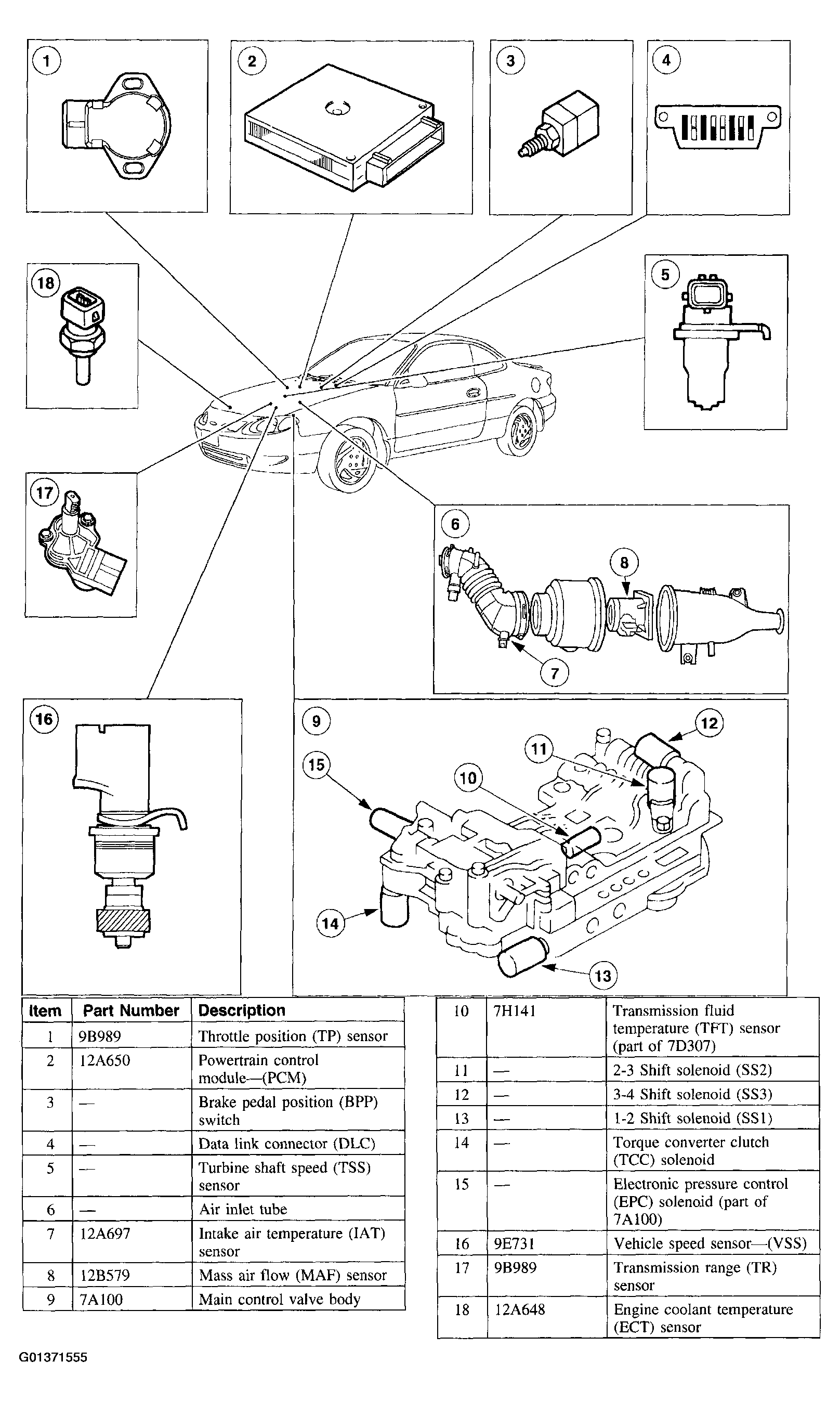

Fig 1: Locating Electronic System Components
G01371555Courtesy of FORD MOTOR CO.

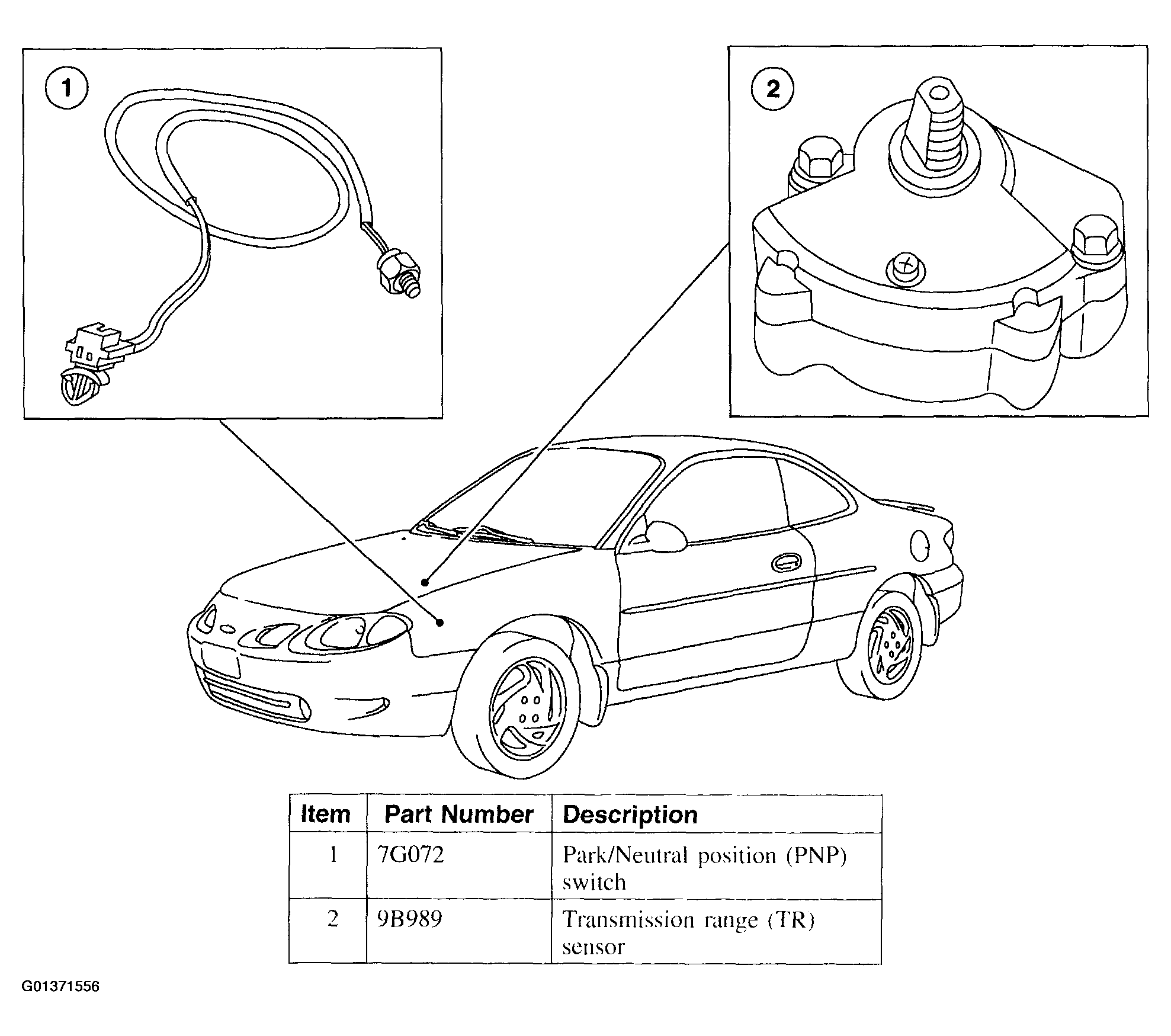

Fig 2: Locating Starter Interrupt Inhibitors
G01371556Courtesy of FORD MOTOR CO.
