Home › Ford › 2003 › ZX2 Automatic › Repair and Diagnosis (Single Page) › Transmission › Automatic Trans › Automatic Transaxle/Transmission › Specifications › General Specifications › Clutch/Band Application Charts

Clutch/Band Application Charts

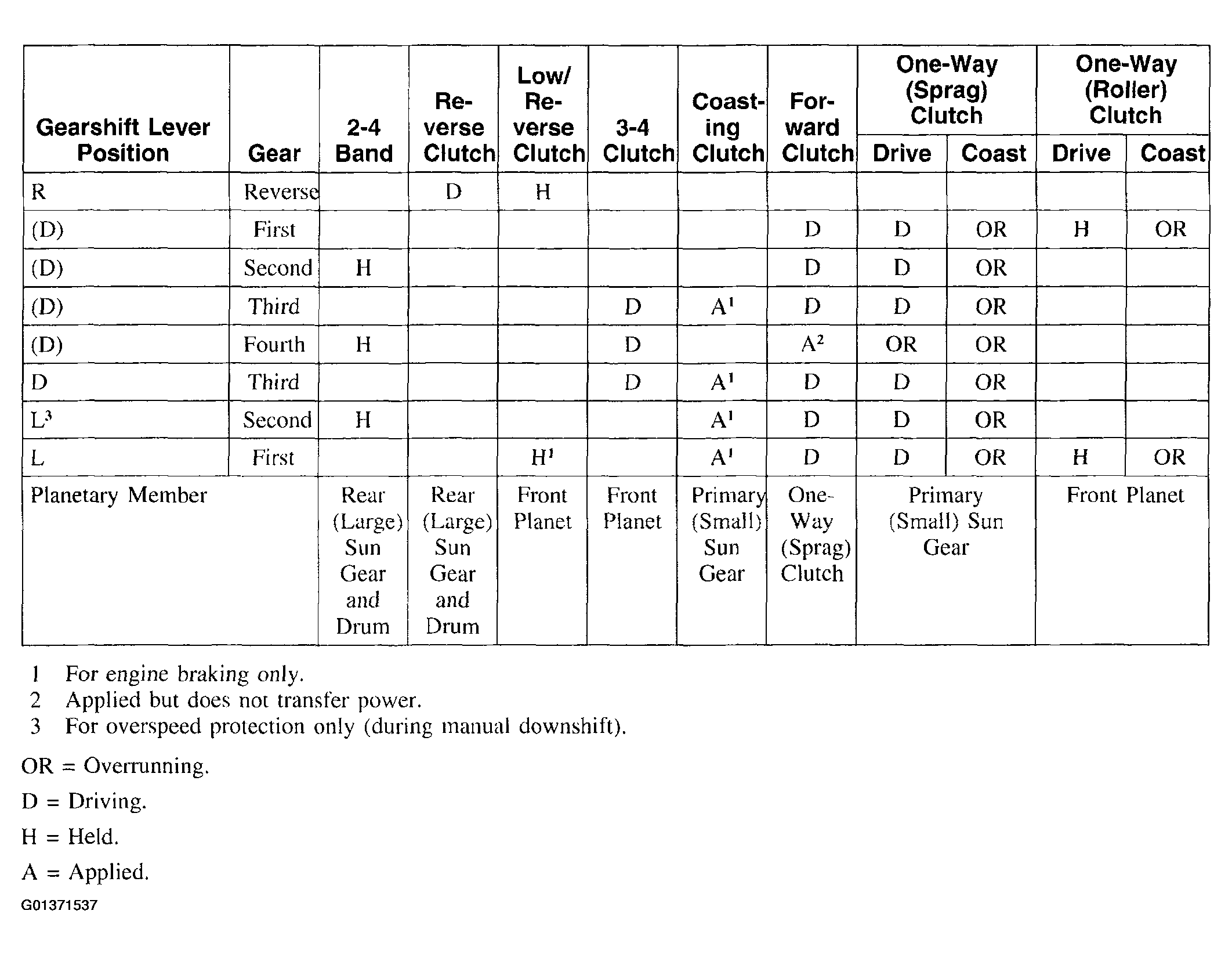

Fig 1: Clutch/Band Application Charts
G01371537Courtesy of FORD MOTOR CO.
