Audio System: Notes

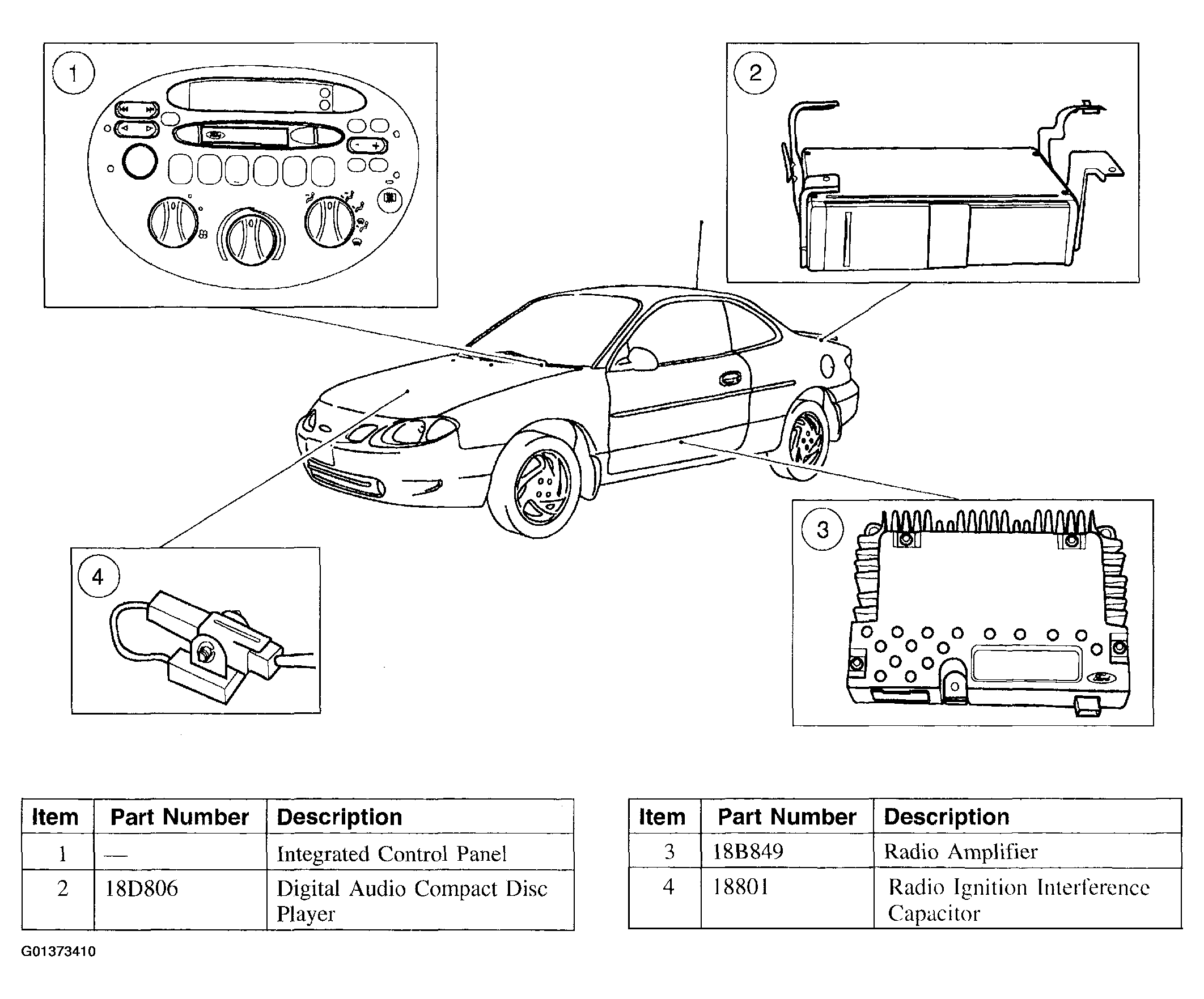

Fig 1: Identifying Audio System Components

Courtesy of FORD MOTOR CO.

There are three audio systems available:

• Electronic search radio (ESR).
• Electronic search cassette (ESC).
• Premium electronic search cassette (ESC) with amplifier and CD changer.

Each radio chassis is part of the integrated control panel (ICP) and cannot be separately repaired. Send the ICP to an authorized Ford audio system repair facility.

All systems are equipped with four radio speakers (18808).
