Torque Specifications

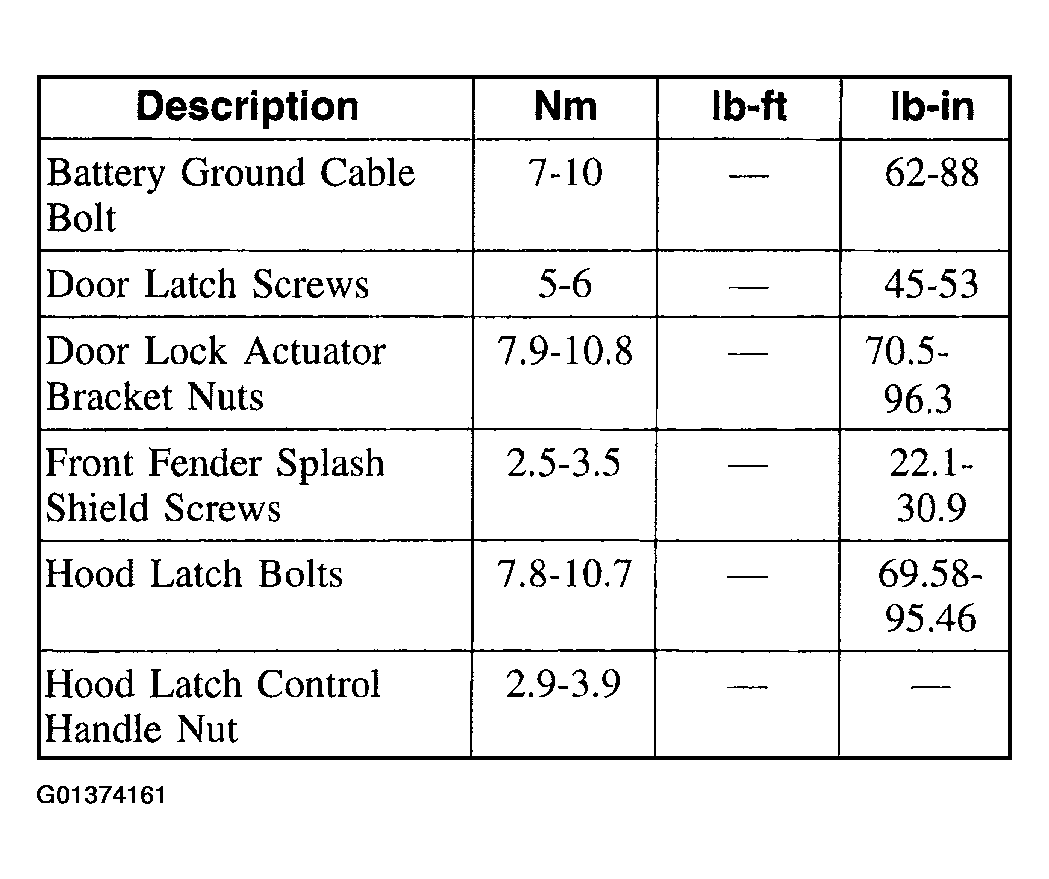

Fig 1: Handles, Locks, Latches And Mechanisms Torque Specifications Chart (1 Of 2)
G01374161Courtesy of FORD MOTOR CO.

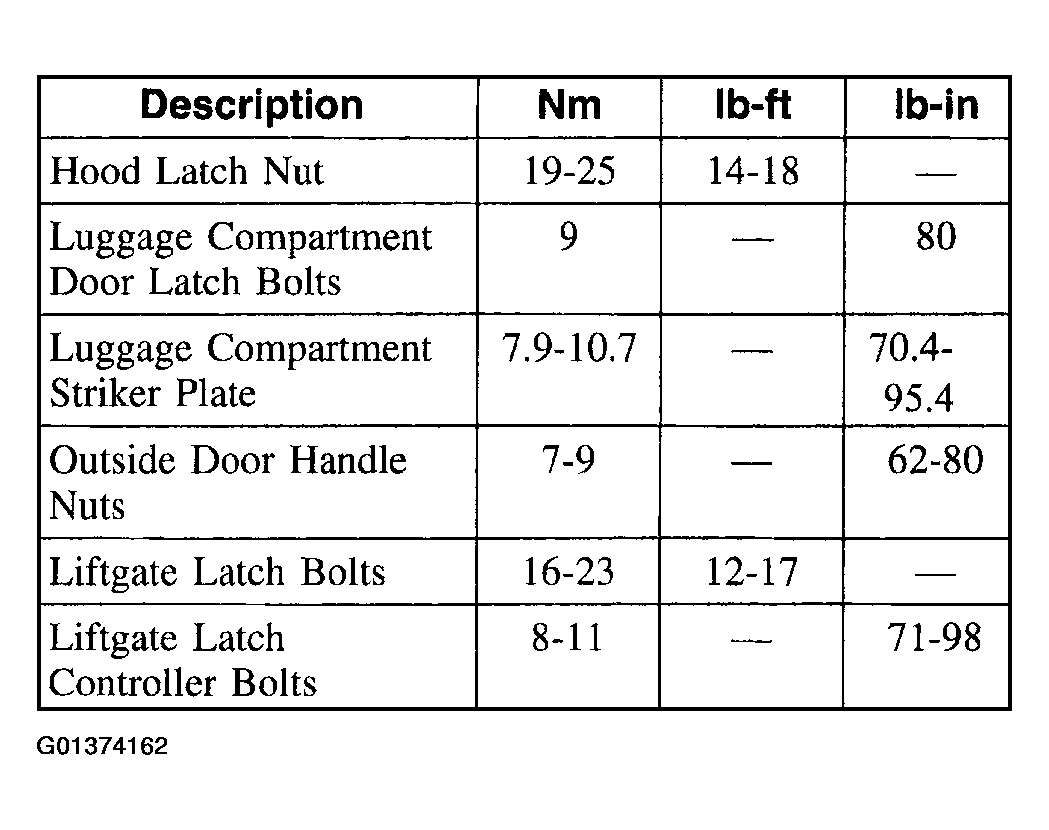

Fig 2: Handles, Locks, Latches And Mechanisms Torque Specifications Chart (2 Of 2)
G01374162Courtesy of FORD MOTOR CO.
