Central Junction Box
NOTE:

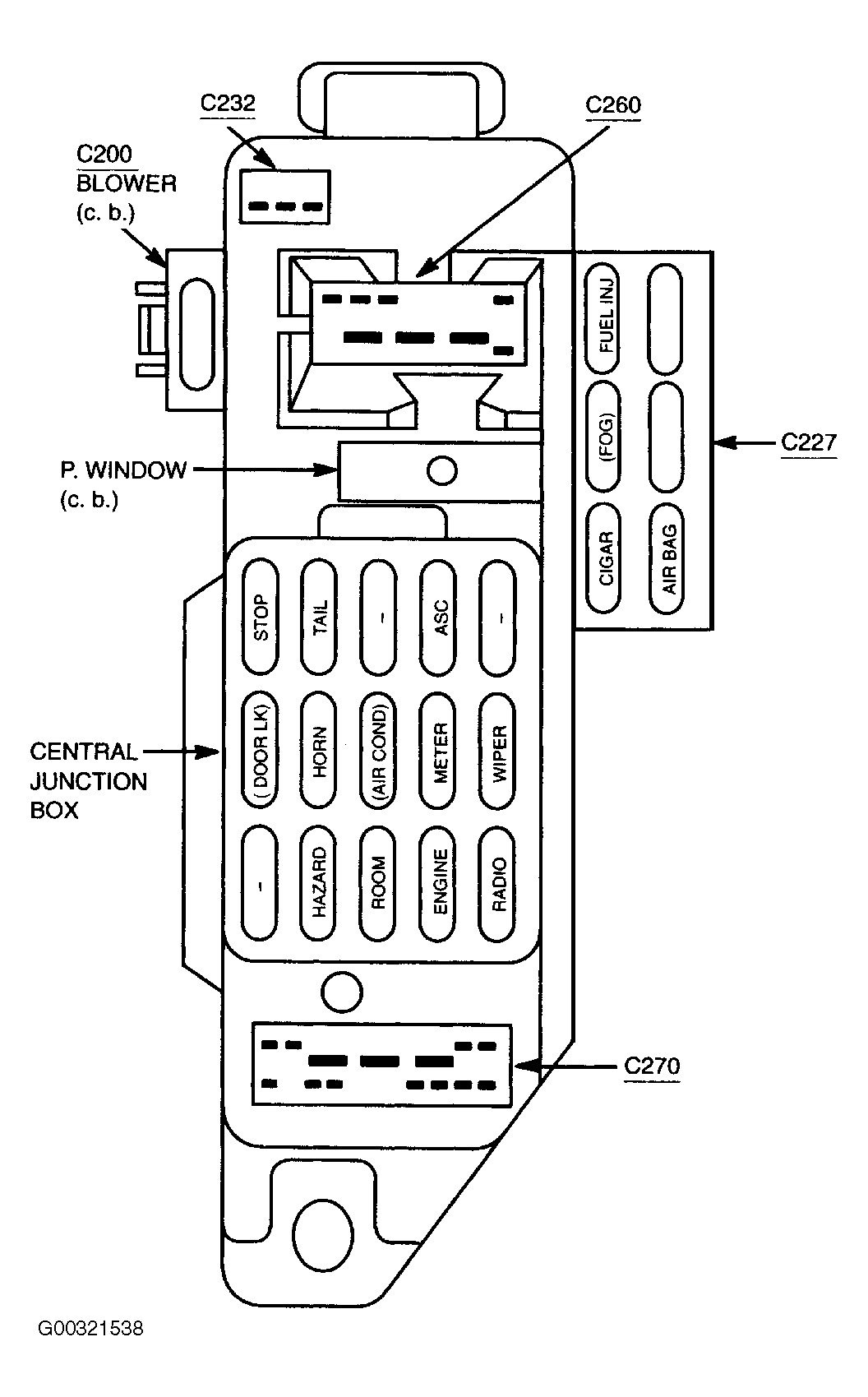

Central junction box is located under driver's side of instrument panel. See Fig 1.
INSTRUMENT PANEL ELECTRICAL COMPONENTS RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Relay Box (Horn Relay Headlamp Relay, Park Lamp Relay, Blower Motor Relay, Rear Window Defogger Relay, C205 One Touch Down Control Unit, Fog Lamp Relay, Luggage Compartment Release Relay) |
CENTRAL JUNCTION BOX LEGEND
| FUSE | AMPS | CIRCUITS PROTECTED |
|---|---|---|
| ASC | 10 | SPEED CONTROL |
| BLOWER (C.B.) | 30 | BLOWER MOTOR RELAY |
| CIGAR | 20 | CIGAR LIGHTER |
| ENGINE | 15 | ELECTRONIC AUTOMATIC TRANSAXLE, IGNITION SYSTEM, CONSTANT CONTROL RELAY MODULE |
| FOG | 10 | FOG LAMPS |
| HAZARD | 15 | ELECTRONIC FLASHER, POWERTRAIN CONTROL MODULE (PCM) |
| AIR COND. | 15 | A/C-HEATER, ANTI-LOCK BRAKES, CONSTANT CONTROL RELAY MODULE (CCRM) |
| HORN | 15 | HORN, SHIFT LOCK |
| DOOR LOCK | 30 | POWER DOOR LOCKS |
| METER | 10 | REVERSING LAMPS, REMOTE KEYLESS ENTRY (RKE), INSTRUMENT CLUSTER, REAR WINDOW DEFROST, SHIFT LOCK, WARNING CHIME |
| RADIO | 5 | EXTERIOR REAR VIEW MIRRORS, INTEGRATED CONTROL PANEL (ICP) |
| P. WINDOW (C.B.) | 30 | POWER WINDOWS |
| AIR BAG | 10 | JOINT CONNECTOR #12, AIR BAG DIAGNOSTIC MONITOR |
| ROOM | 10 | RAP SYSTEM, RADIO, COURTESY LAMPS, STARTING SYSTEM, WARNING CHIME, INTEGRATED CONTROL PANEL (ICP) |
| FUEL INJECTOR | 10 | HO2S, EVAPORATIVE EMISSION PURGE FLOW SENSOR |
| STOP | 20 | STOPLAMPS, DEACTIVATOR SWITCH |
| TAIL | 15 | PARK LAMP RELAY |
| WIPER | 20 | WIPER/WASHER, BLOWER MOTOR RELAY |
| ROOF OPENING | 15 | ROOF OPENING PANEL |
