Description And Operation: Console

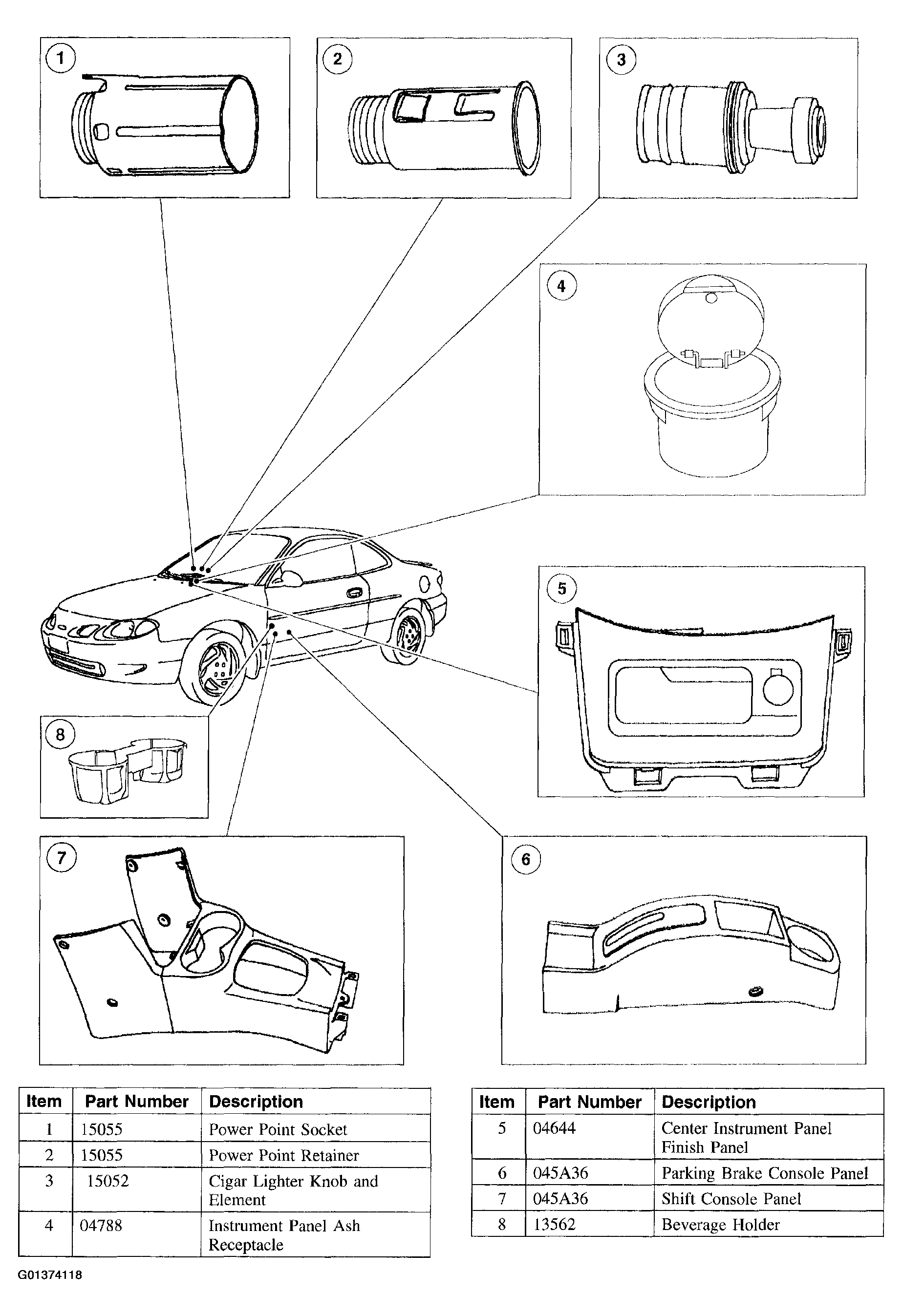

Fig 1: Identifying Console Components
G01374118Courtesy of FORD MOTOR CO.
