Instrument Panel: Installation

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.

Fig 1: Installing Cover And Upper Instrument Panel Reinforcement Bolt

Courtesy of FORD MOTOR CO.

Fig 2: Installing Both LH And RH Lower Instrument Panel Reinforcement Bolts

Courtesy of FORD MOTOR CO.

Fig 3: Installing LH and RH Upper And Lower Instrument Panel Attachment Bolts

Courtesy of FORD MOTOR CO.

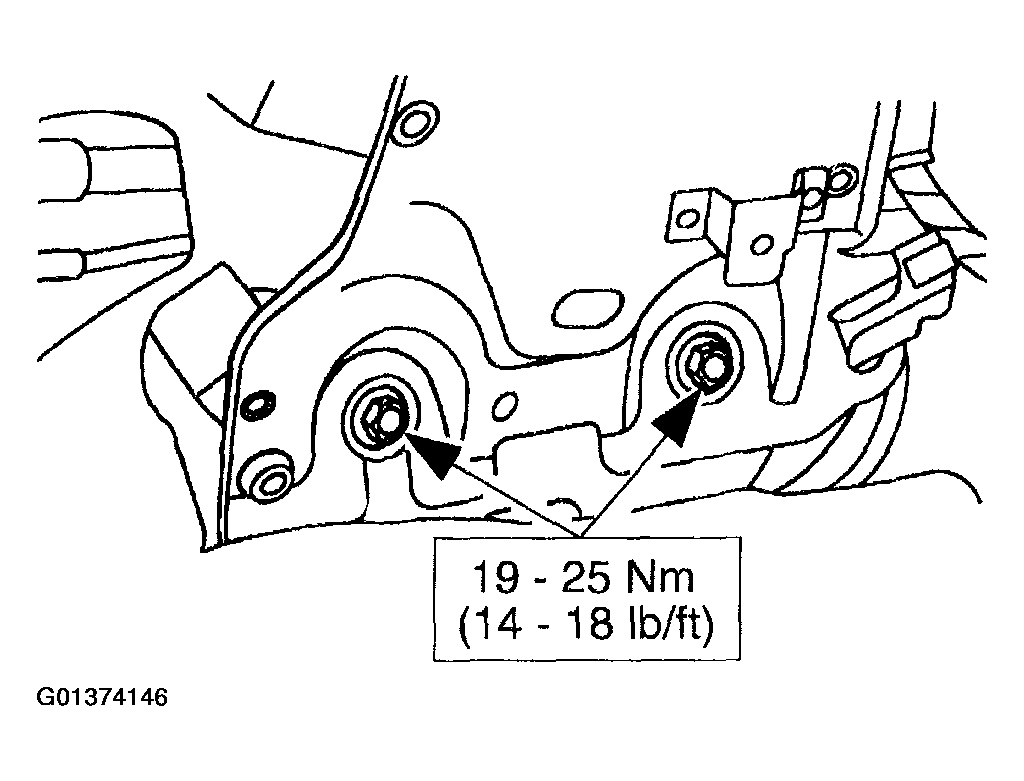

Fig 4: Installing Steering Column Bracket Bolts

Courtesy of FORD MOTOR CO.

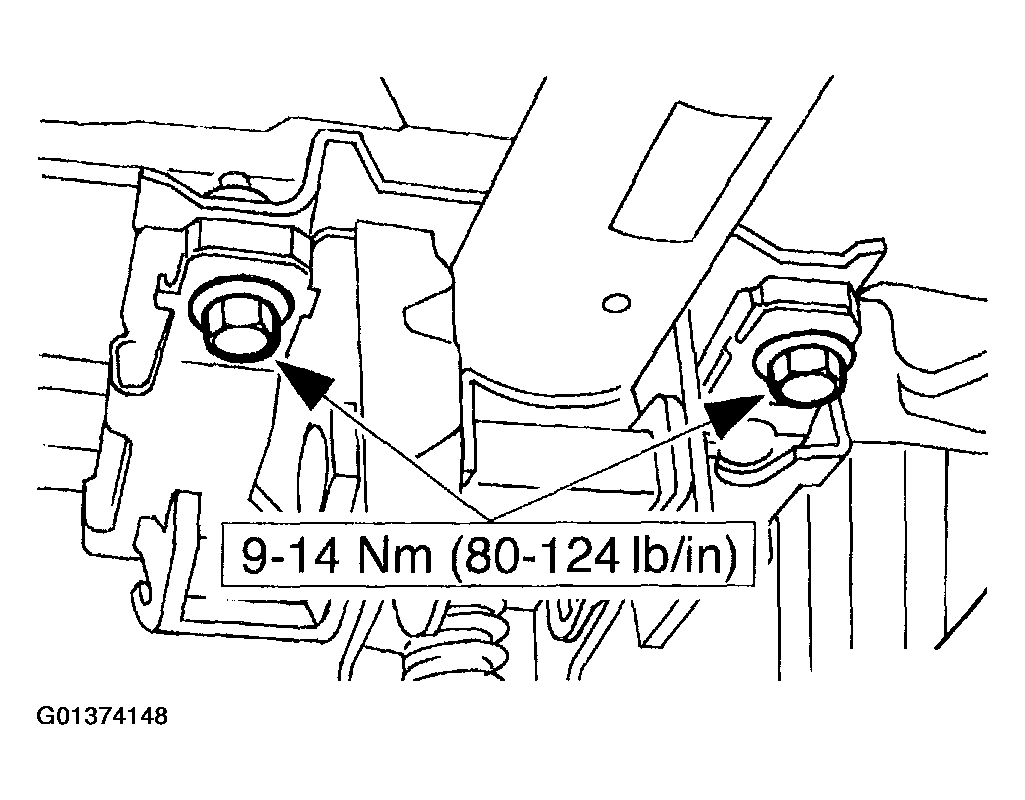

Fig 5: Installing The Two Rear Side PCM Bracket Nuts

Courtesy of FORD MOTOR CO.

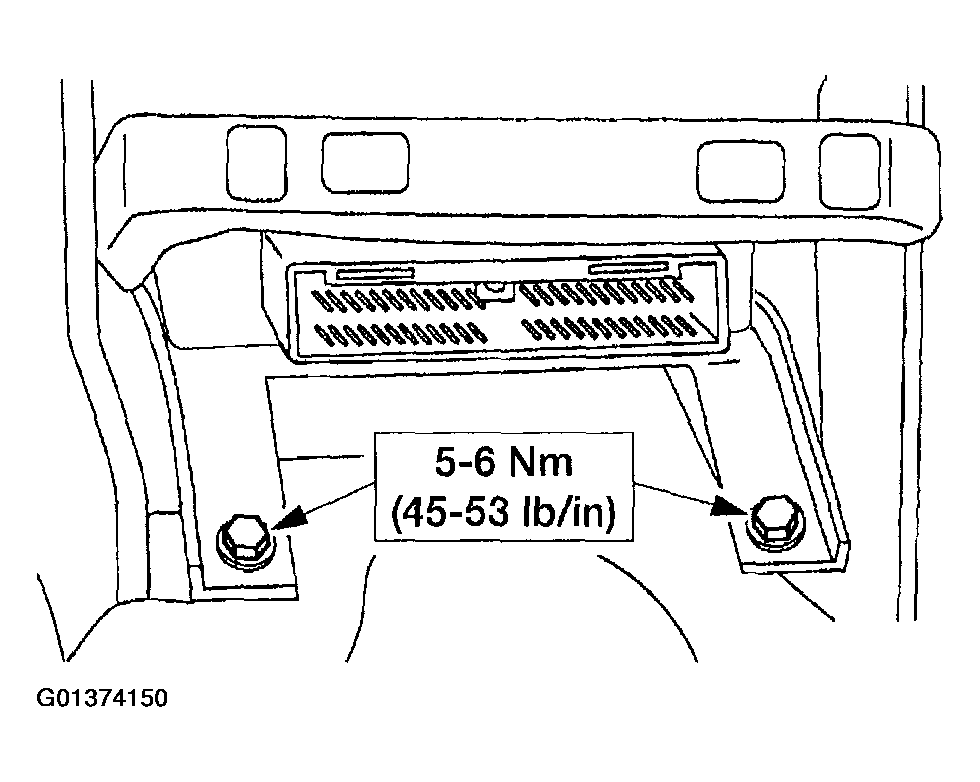

Fig 6: Installing PCM Bracket Bolts

Courtesy of FORD MOTOR CO.

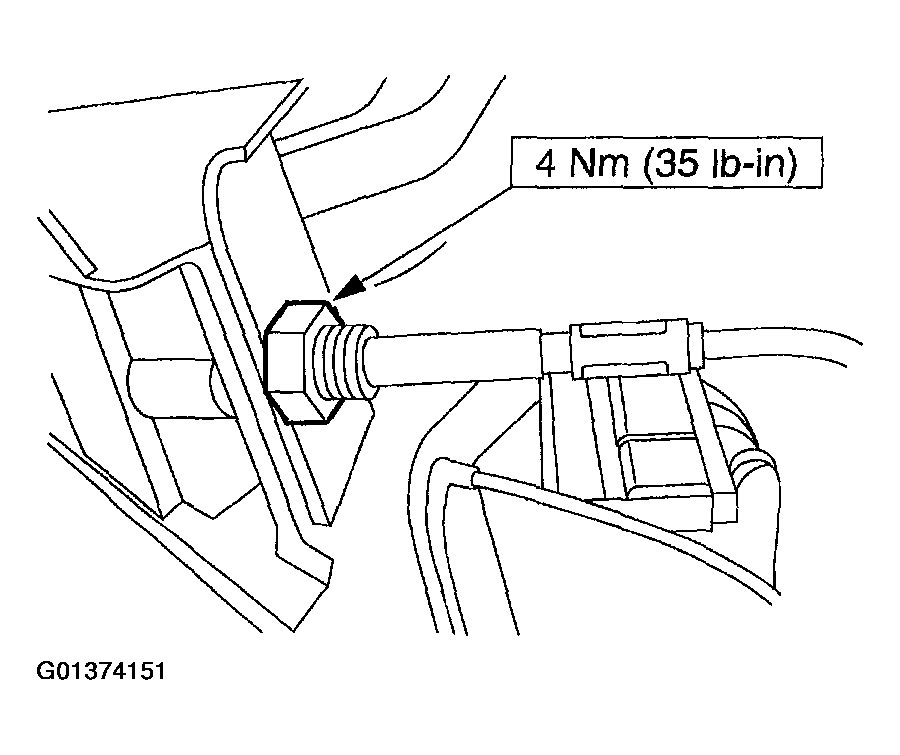

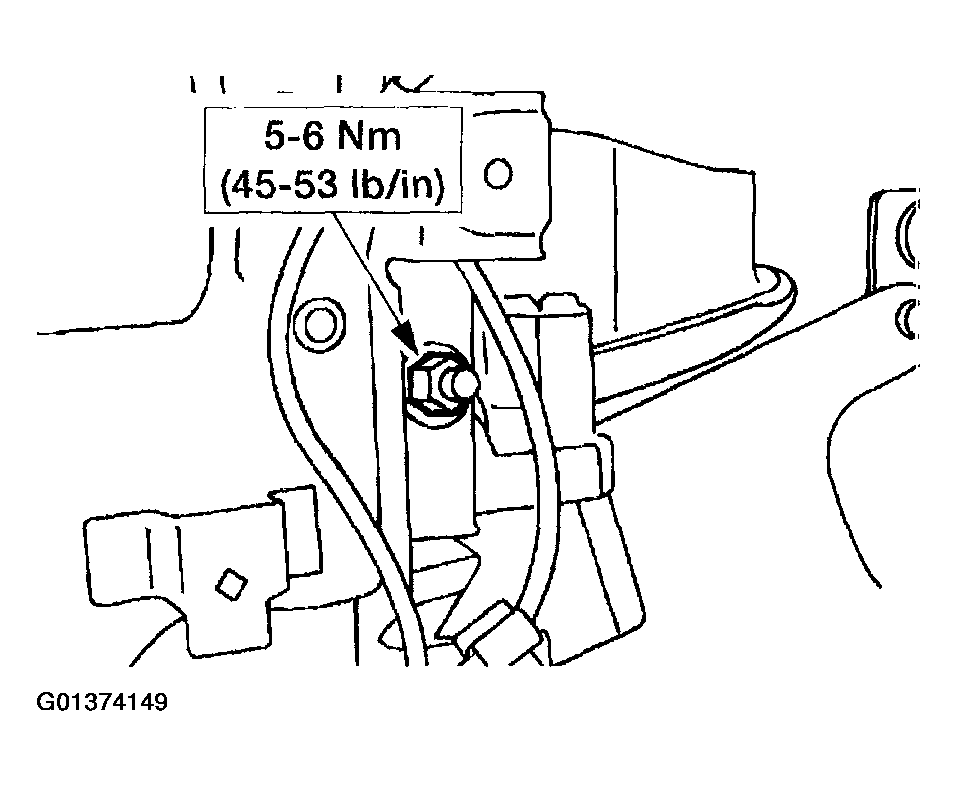

Fig 7: Loosening Nut

Courtesy of FORD MOTOR CO.

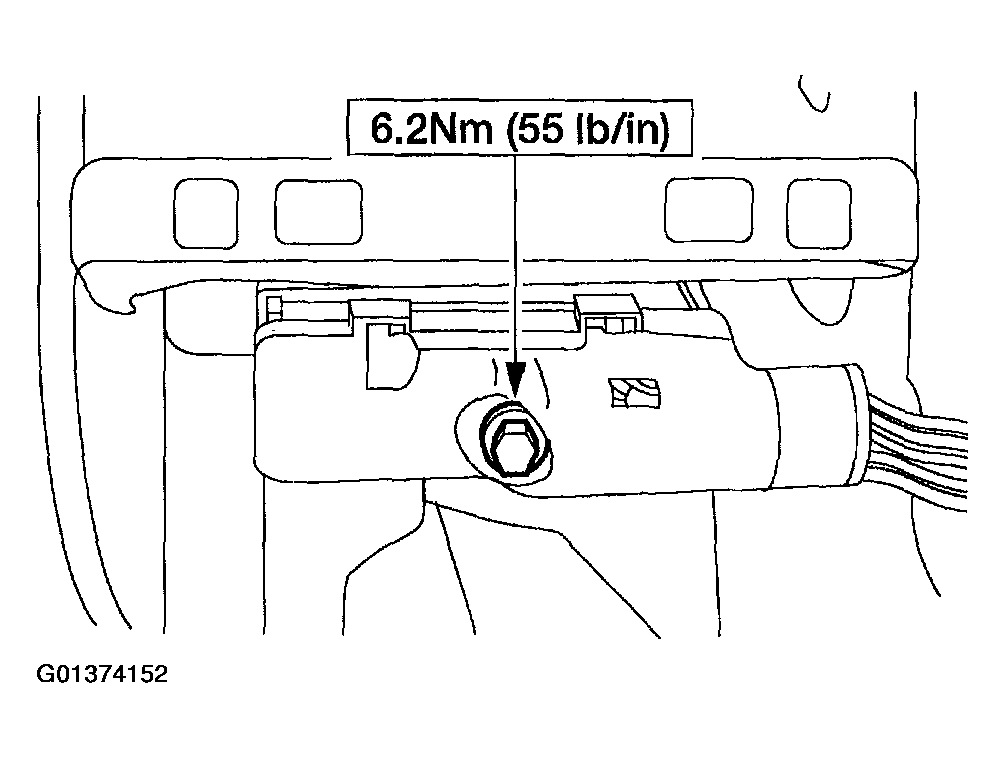

Fig 8: Installing Bolt From Powertrain Control Module Electrical Connector

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
- Adjust the transmission control selector dial bezel. For additional information, refer to TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS .
