Engine Coolant Temperature Sender Unit: Notes

Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .

Fig 1: Identifying Bleeding Screw
Courtesy of FORD MOTOR CO.
Disconnect the connector from the water temperature indicator sender unit (10884).

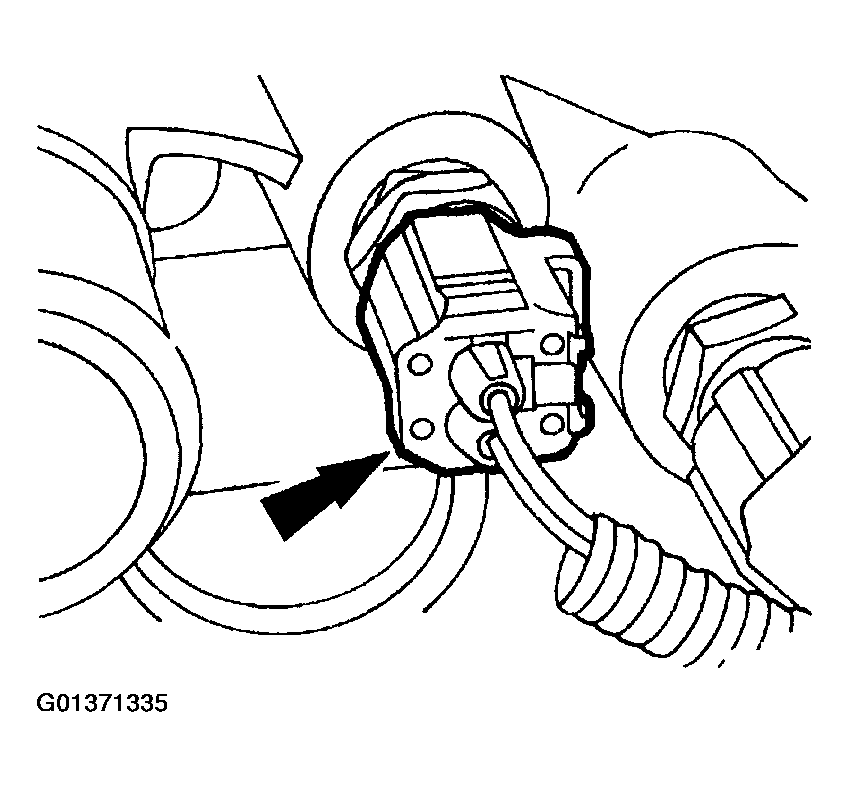

Fig 2: Disconnecting Connector From Water Temperature Indicator Sender Unit
Courtesy of FORD MOTOR CO.
Remove the water temperature indicator sender unit.

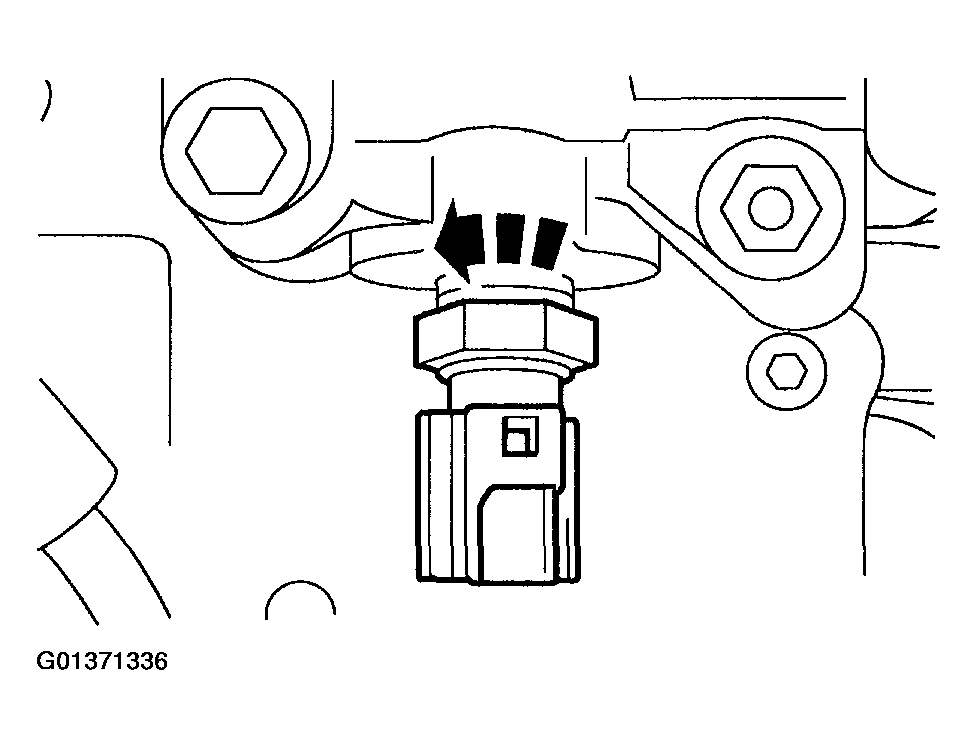

Fig 3: Removing Water Temperature Indicator Sender Unit
Courtesy of FORD MOTOR CO.
