Crankshaft End Play

Fig 1: Identifying Special Tool(s)
G01370850Courtesy of FORD MOTOR CO.
  1. Measure the crankshaft end play. Use a Dial Indicator Gauge with Holding Fixture to measure crankshaft end play.
  2. Position the crankshaft to the rear of the cylinder block.
  3. Zero the indicator.
  4. Move the crankshaft to the front of the cylinder block. Note and record the crankshaft end play.
    • If crankshaft end play exceeds specifications, install a new crankshaft thrust washer (6334) or crankshaft thrust main bearing (6337). Refer to ENGINE for the procedure.

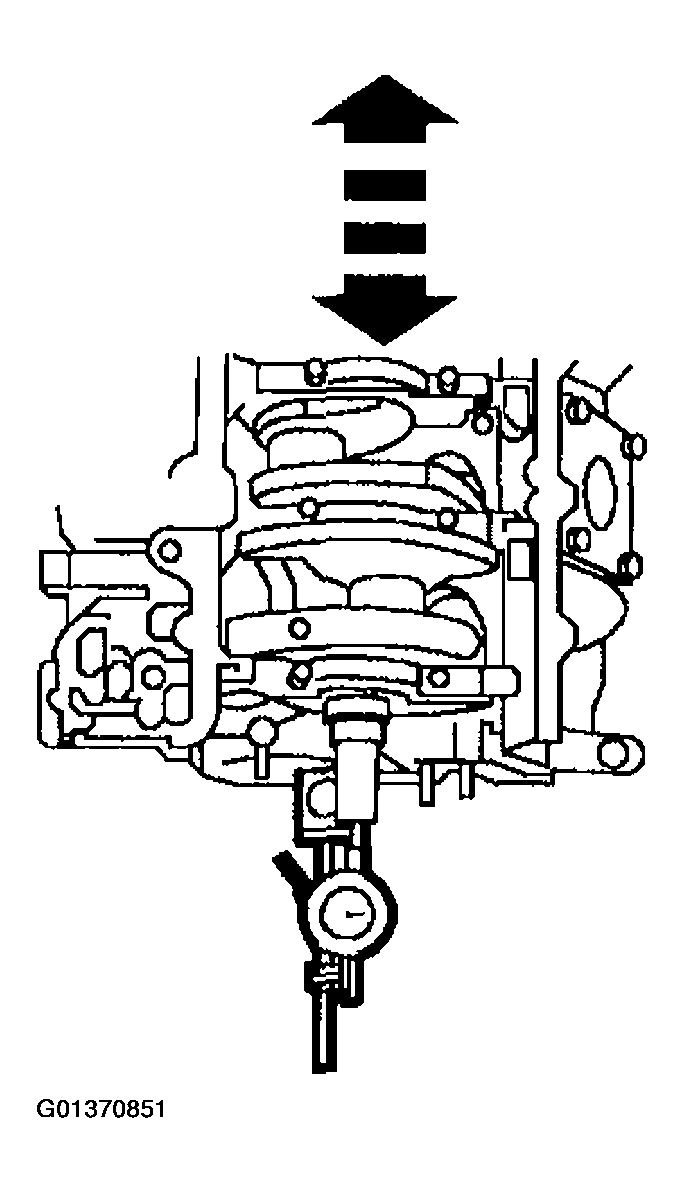

    Fig 2: Measuring Crankshaft End Play
    G01370851Courtesy of FORD MOTOR CO.
