Valve Spring Installed Length

Measure the installed length of each valve spring.
- Refer to GENERAL SPECIFICATIONS .
- If out of specification, install new components. Refer to ENGINE for the procedure.

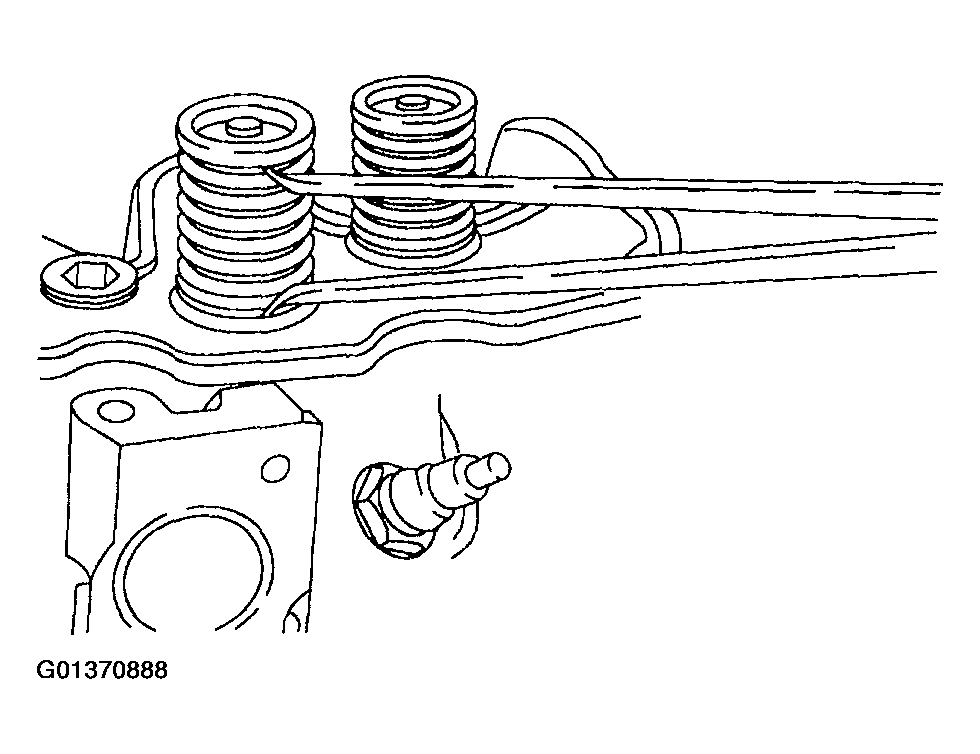

Fig 1: Measuring Valve Spring Installed Height
Courtesy of FORD MOTOR CO.
