Oil Pump Screen And Pickup Tube: Installation

  1. To install, reverse the removal procedure.

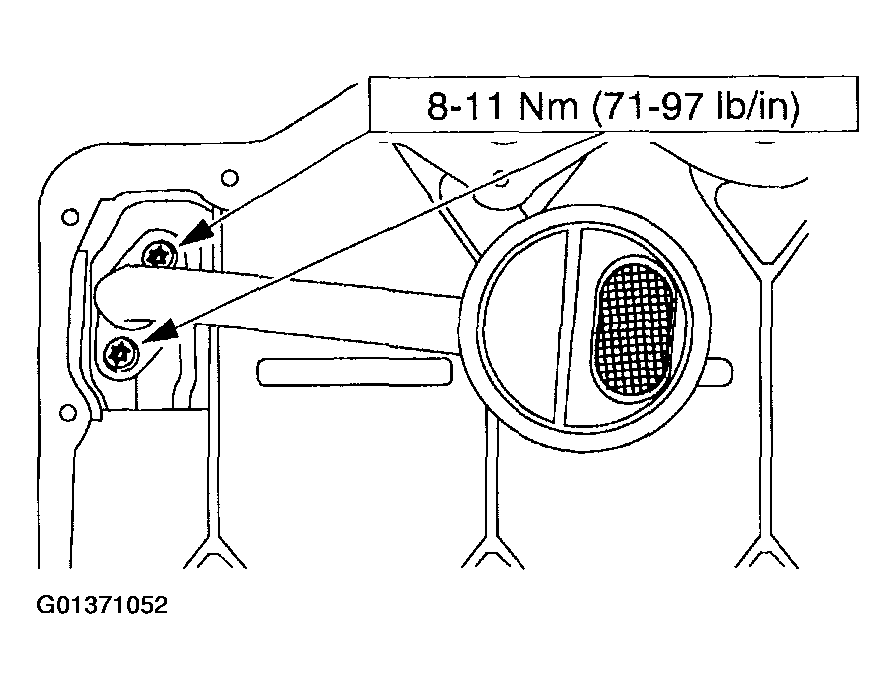

    Fig 1: Installing bolts
    G01371052Courtesy of FORD MOTOR CO.
