Valve - Valve Clearance, Adjust: Installation

  1. Install the camshaft. For additional information, refer to CAMSHAFT .
  2. Measure new valve clearances.

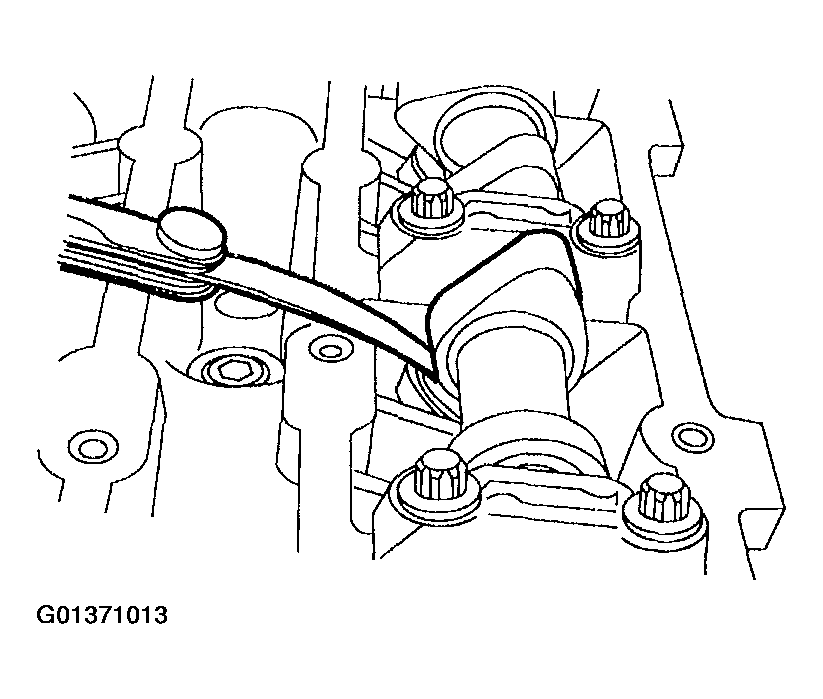

    Fig 1: Measuring New Valve Clearances
    G01371013Courtesy of FORD MOTOR CO.
  3. Adjust the timing of the engine. For additional information, refer to TIMING DRIVE COMPONENTS - TIMING ADJUST .
  4. Install the timing belt covers. For additional information, refer to TIMING DRIVE COMPONENTS - TIMING BELT COVERS .
  5. Install the valve cover. For additional information, refer to VALVE COVER .
