Symptom Chart

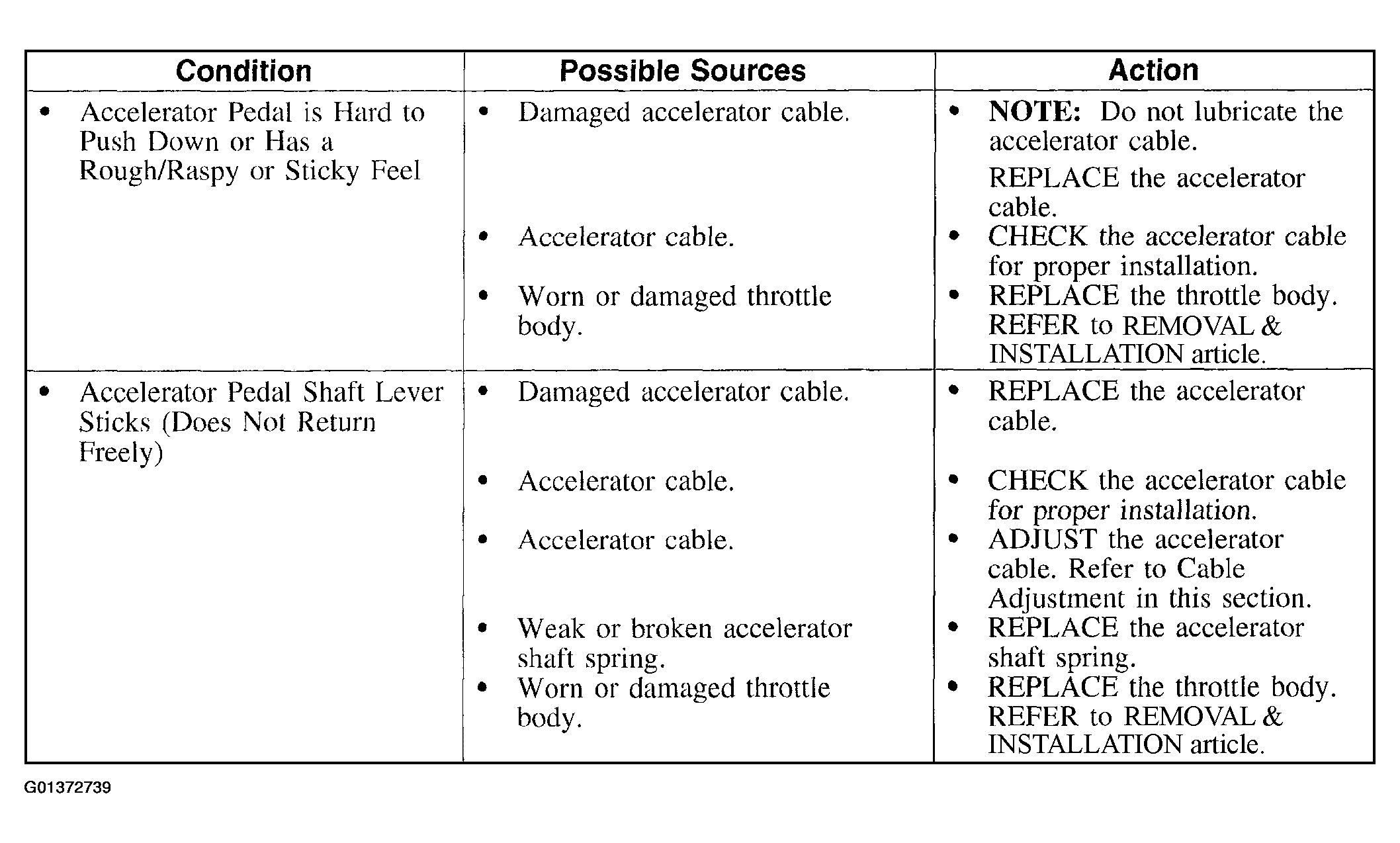

Fig 1: Trouble Symptom Chart (1 Of 2)
G01372739Courtesy of FORD MOTOR CO.

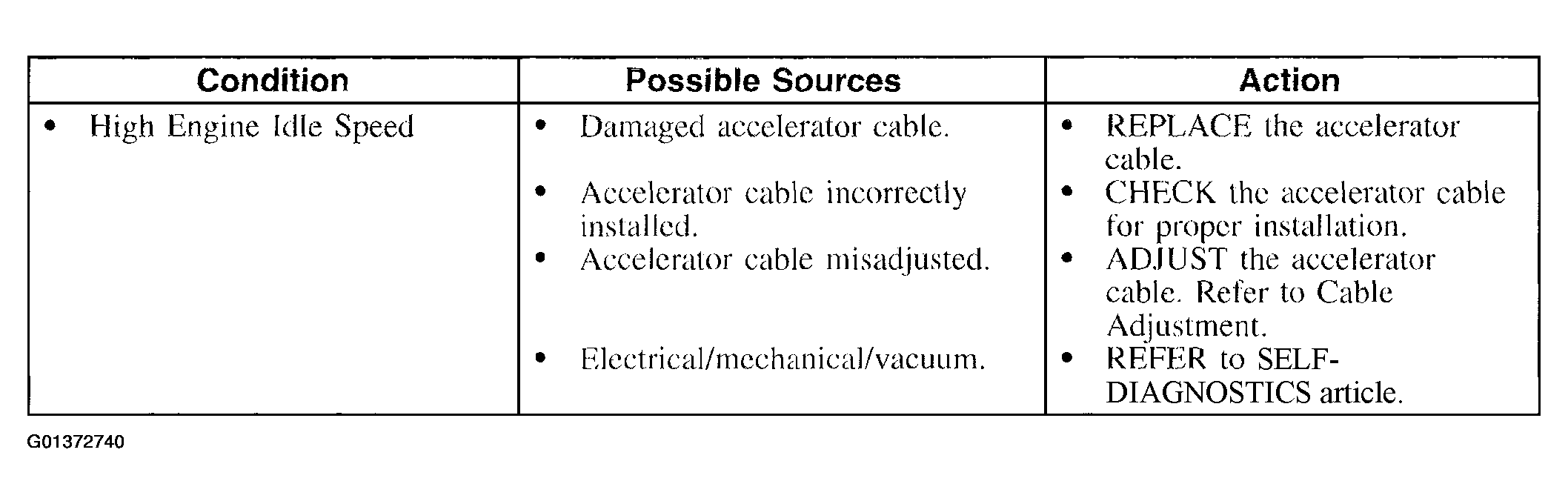

Fig 2: Trouble Symptom Chart (2 Of 2)
G01372740Courtesy of FORD MOTOR CO.
