Valve Springs: Installation
WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

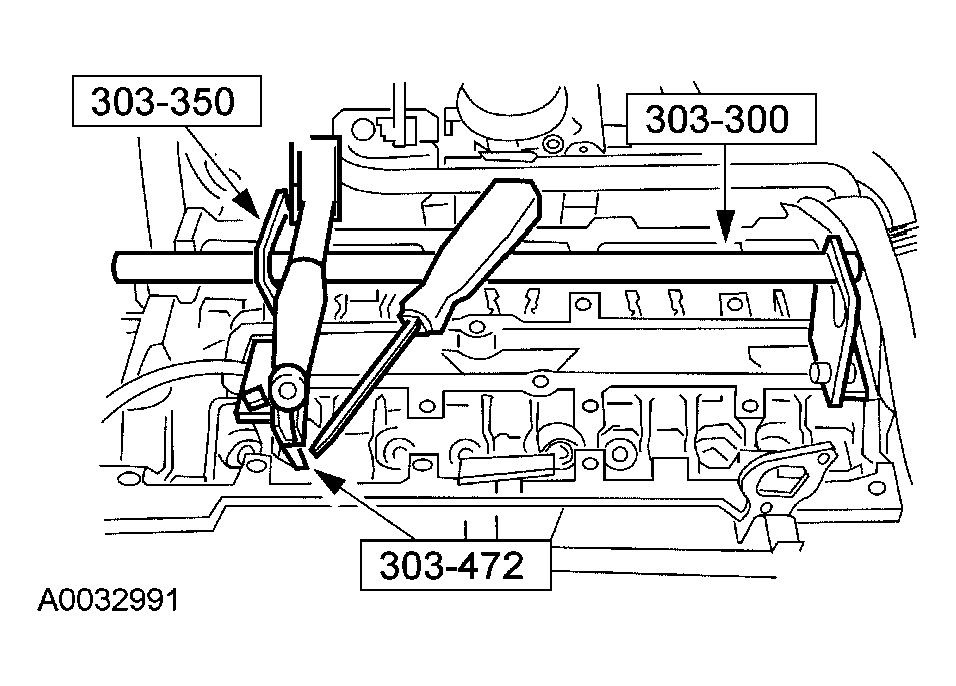

- Using the special tools, install the valve springs.
- Insert the valve springs and the valve spring retainers.
- Compress the valve springs and install the valve collets.
- Disconnect and remove the air supply.
- Install the valve tappets. For additional information, refer to VALVE TAPPETS .
NOTE:
Check that there is no dirt or particles within the valve stem grooves. Check the seating of the valve collets.
