Intake Manifold: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

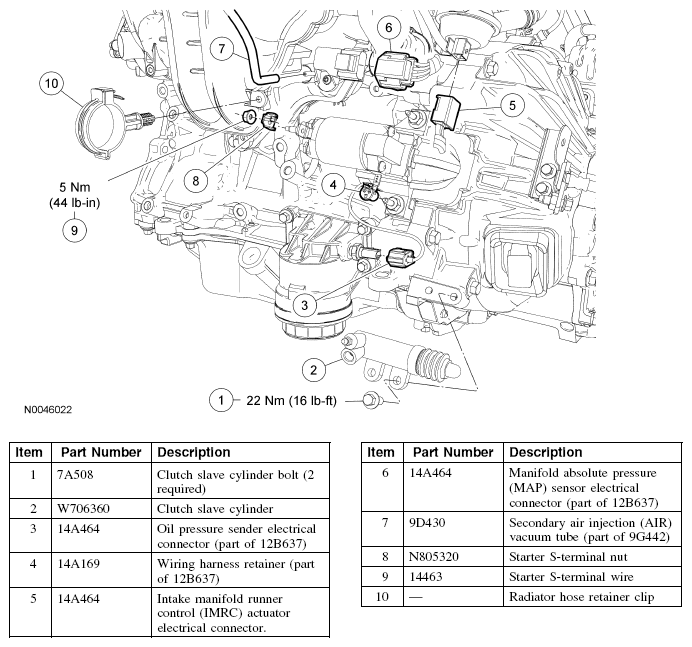

Fig 1: Intake Manifold Replacement Components With Torque Specifications (Items 1--10)

Courtesy of FORD MOTOR CO.

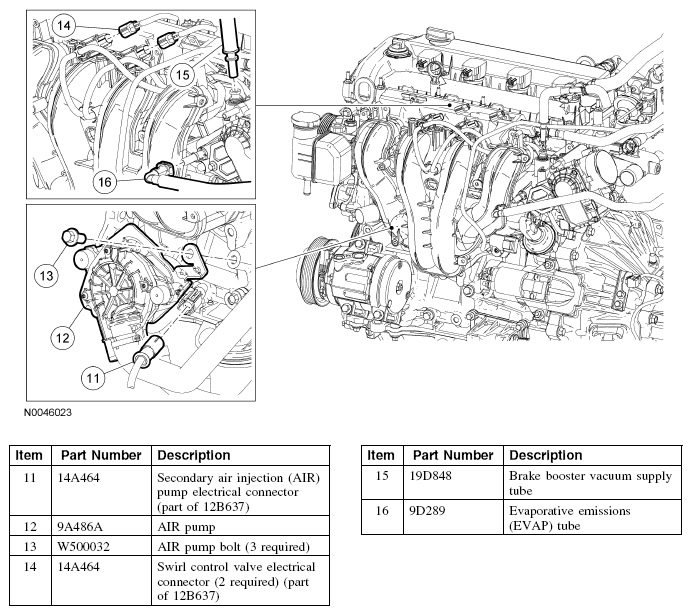

Fig 2: Identifying Intake Manifold Components (Items 11-16)

Courtesy of FORD MOTOR CO.

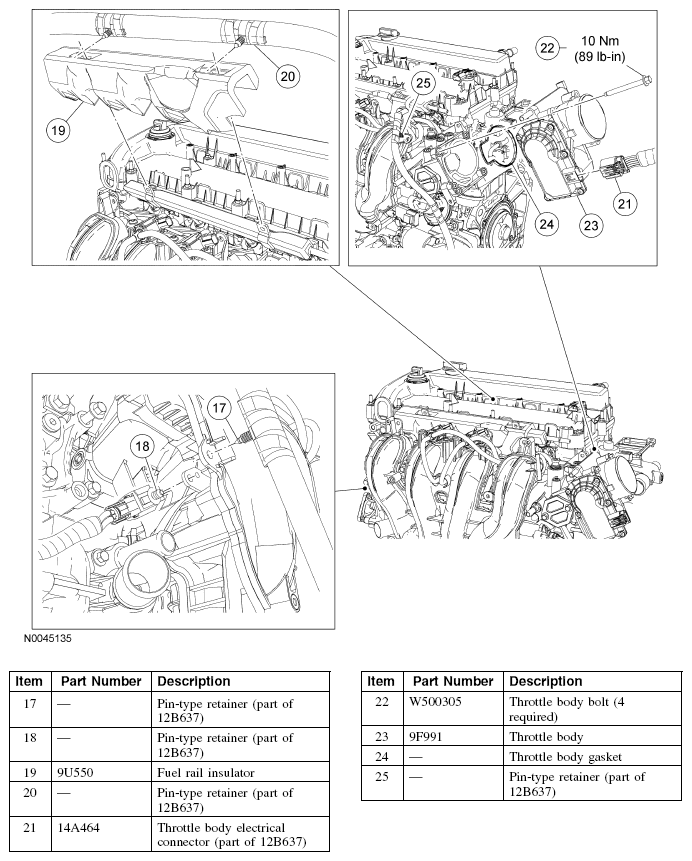

Fig 3: Intake Manifold Replacement Components With Torque Specifications (Items 17--25)

Courtesy of FORD MOTOR CO.

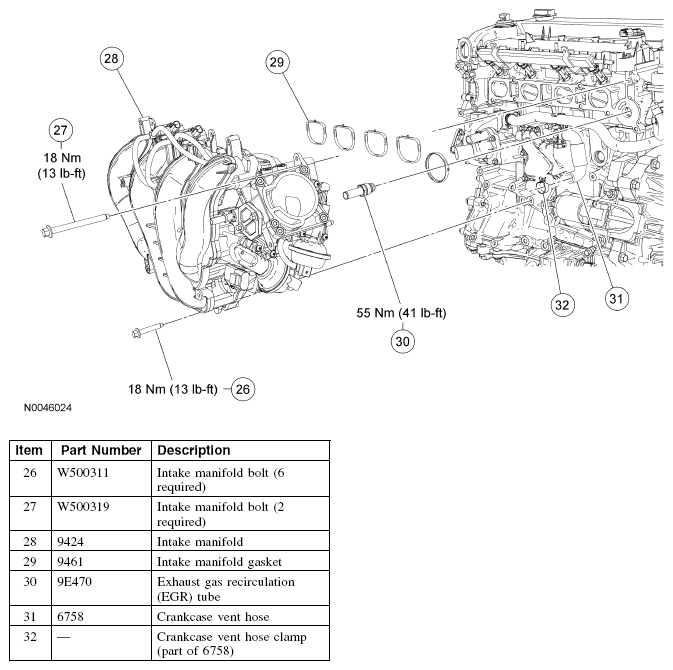

Fig 4: Intake Manifold Replacement Components With Torque Specifications (Items 26--32)

Courtesy of FORD MOTOR CO.
