Item 104: Engine Wiring Harness Assembly Note

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

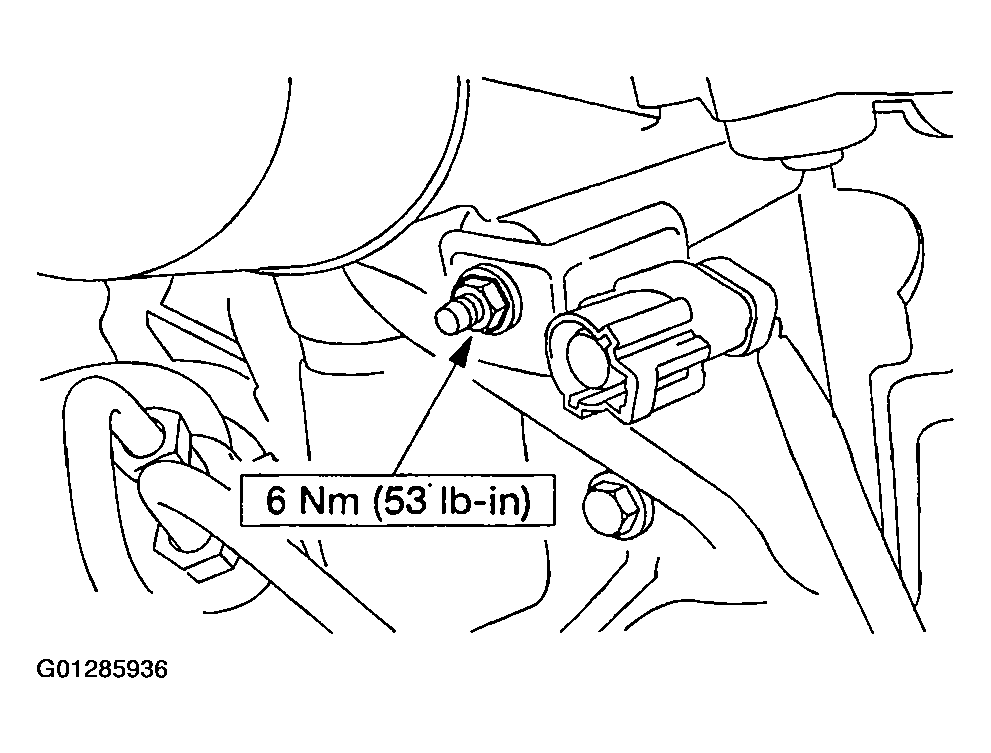

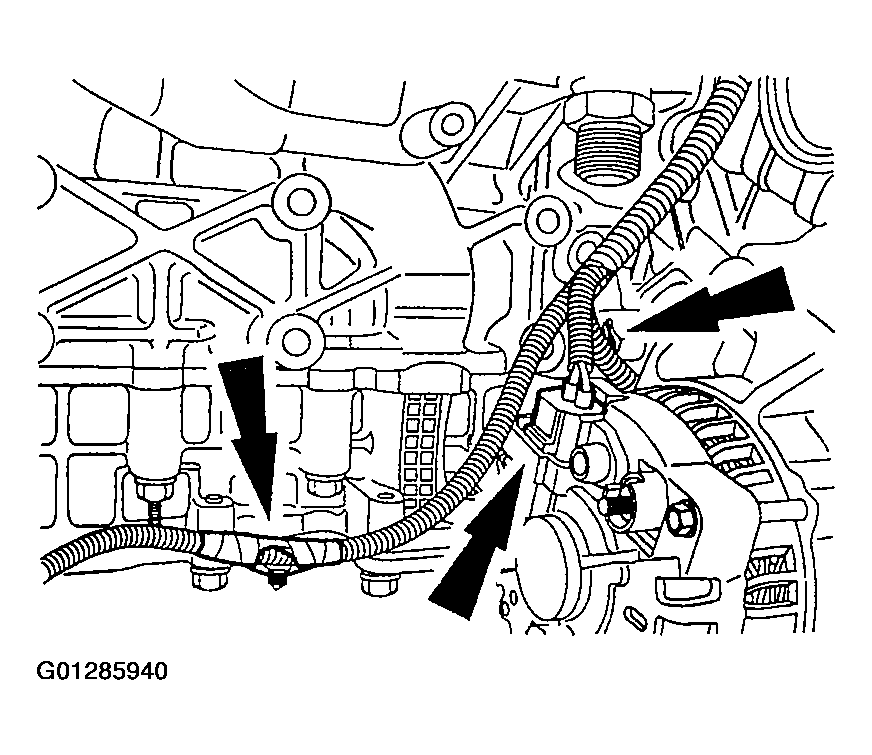

Position the ground strap and install the nut.

Fig 1: Positioning Ground Strap And Install Nut
Courtesy of FORD MOTOR CO.
Install the bracket and the nut.

Fig 2: Installing Bracket And Nut
Courtesy of FORD MOTOR CO.
Position the wiring harness and install the four nuts.

Fig 3: Positioning Wiring Harness And Install Four Nuts
Courtesy of FORD MOTOR CO.

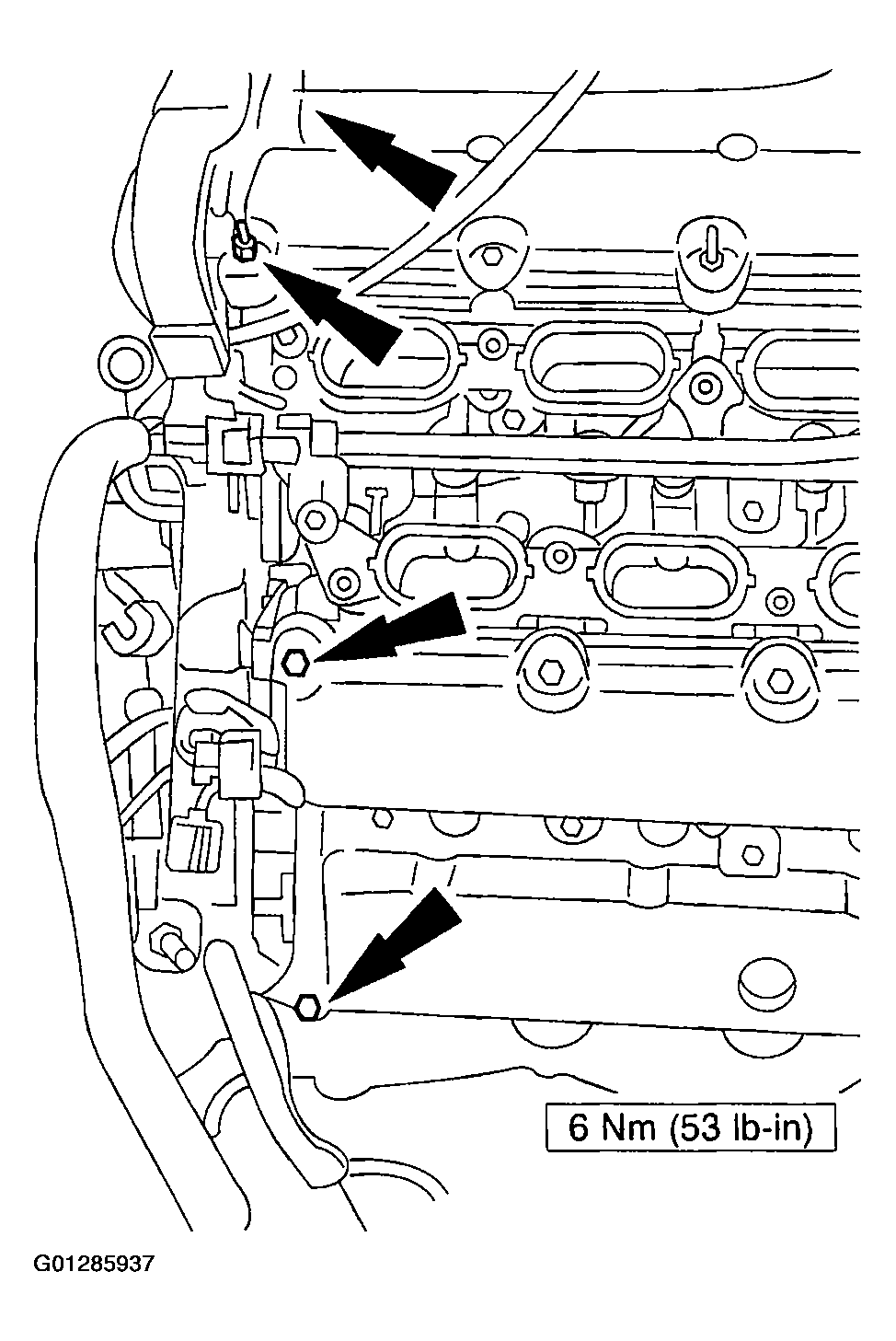

Position the two radio ignition interference capacitors and install the bolts.

Fig 4: Positioning Two Radio Ignition Interference Capacitors And Install Bolts
Courtesy of FORD MOTOR CO.
Attach the wiring harness retainer.

Fig 5: Attaching Wiring Harness Retainer
Courtesy of FORD MOTOR CO.

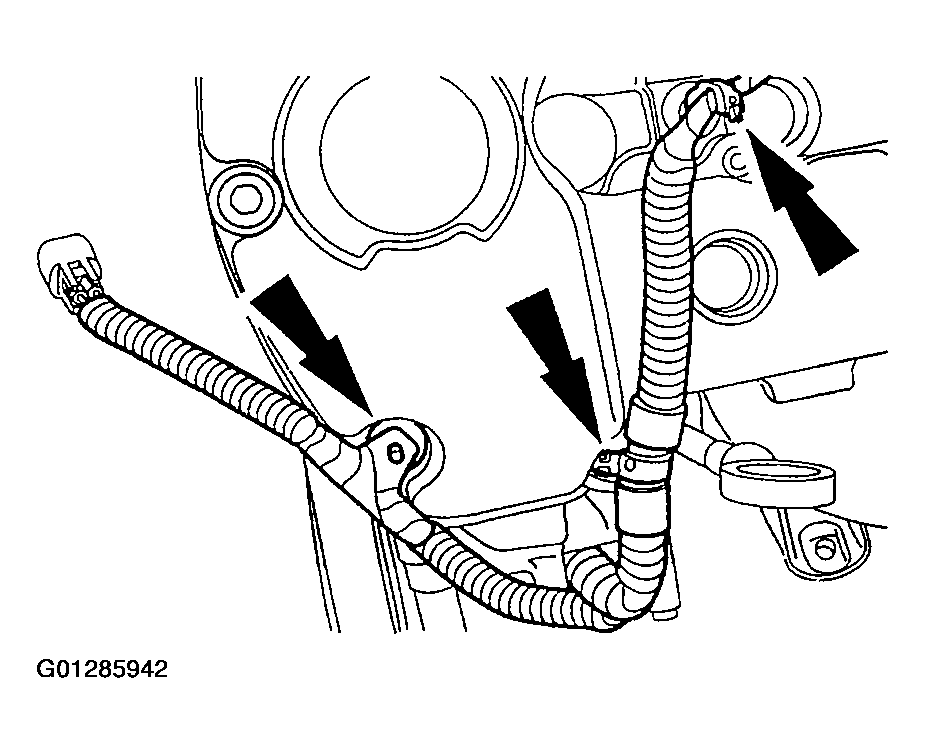

Clip the two wiring harness retainers into the brackets and connect the generator electrical connector.

Fig 6: Clipping Two Wiring Harness Retainers Into Brackets
Courtesy of FORD MOTOR CO.

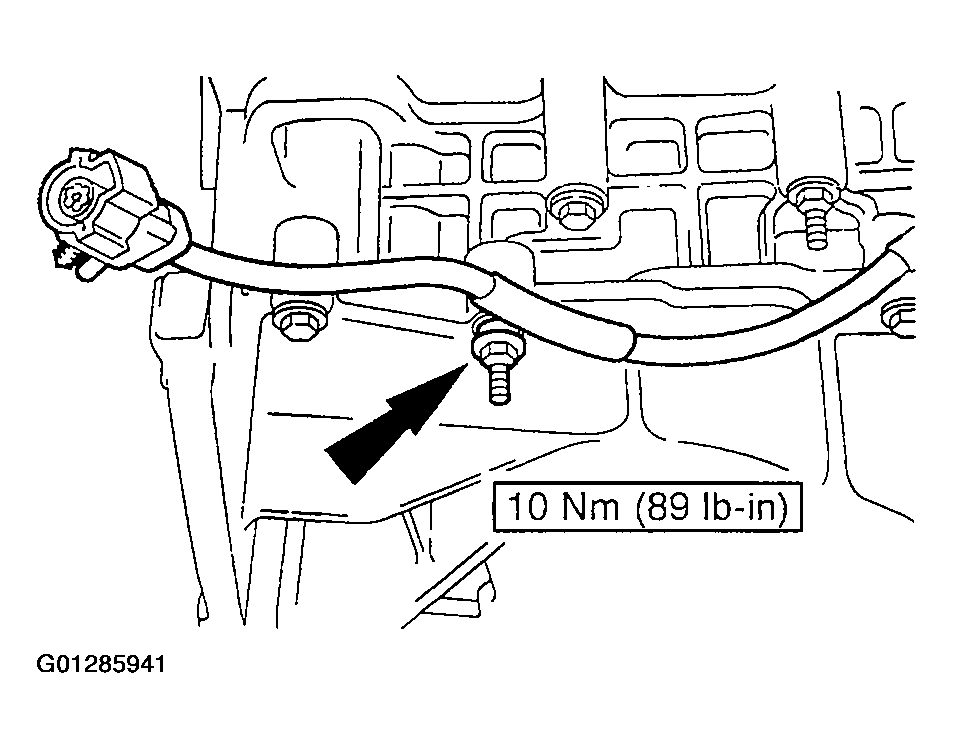

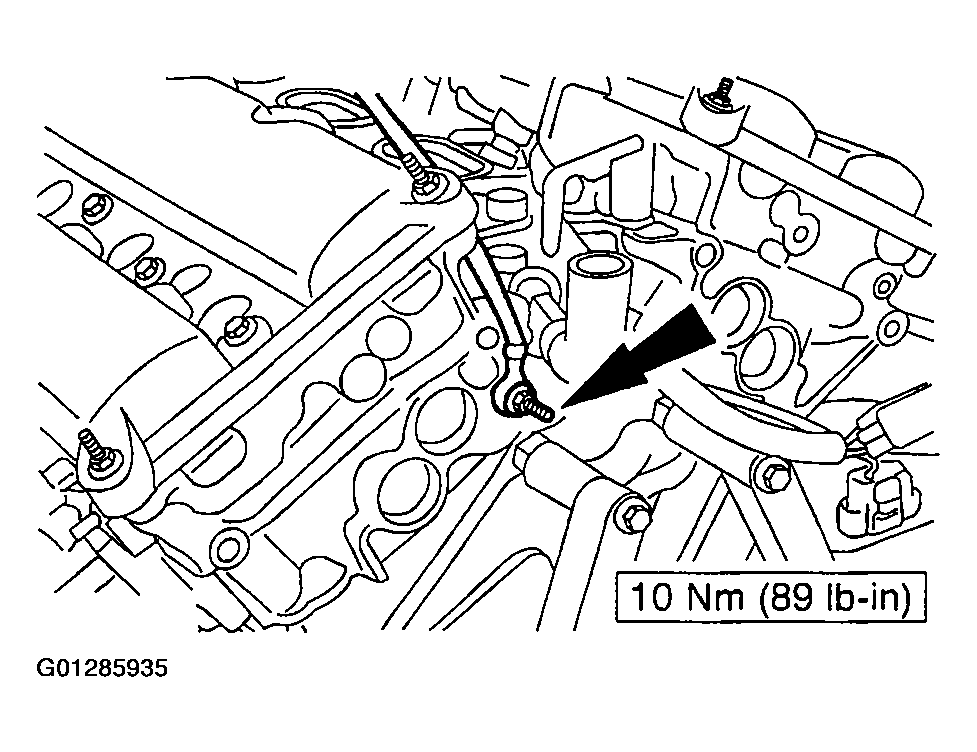

Position the wiring harness and install the nut.

Fig 7: Positioning Wiring Harness And Install Nut
Courtesy of FORD MOTOR CO.

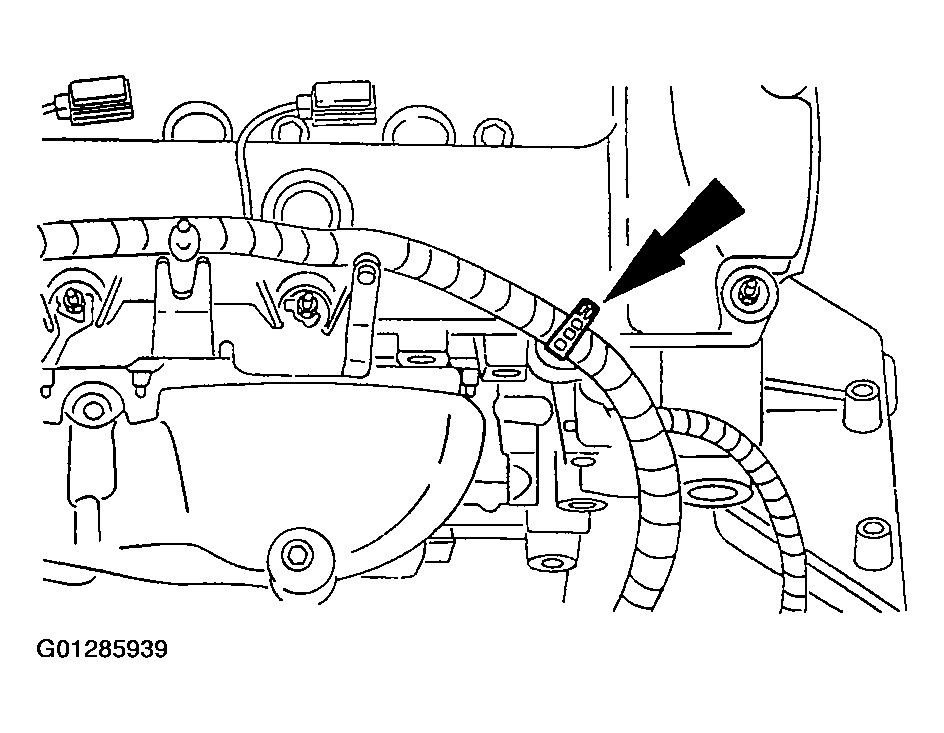

Attach the three wiring harness retainers.

Fig 8: Attaching Three Wiring Harness Retainers
Courtesy of FORD MOTOR CO.

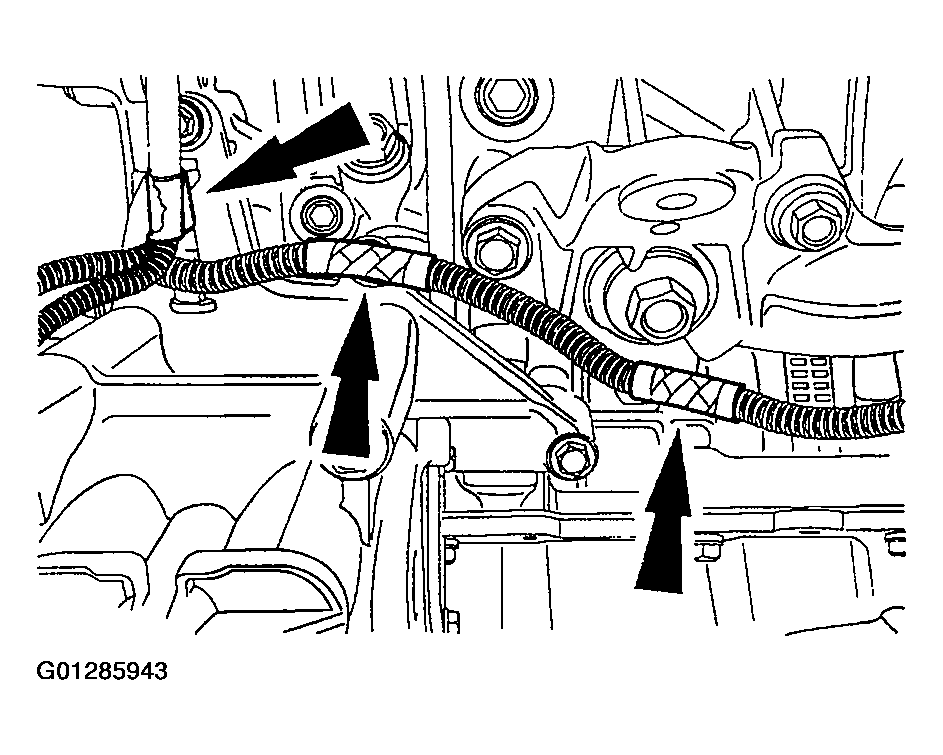

Attach the three wiring harness retainers.

Fig 9: Attach the three wiring harness retainers
Courtesy of FORD MOTOR CO.

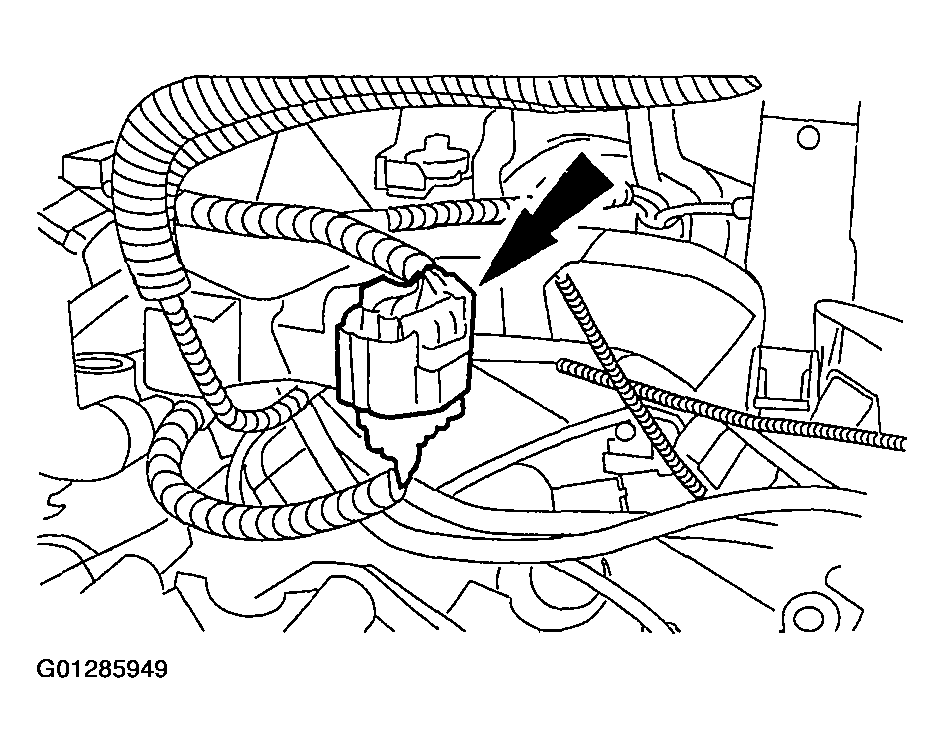

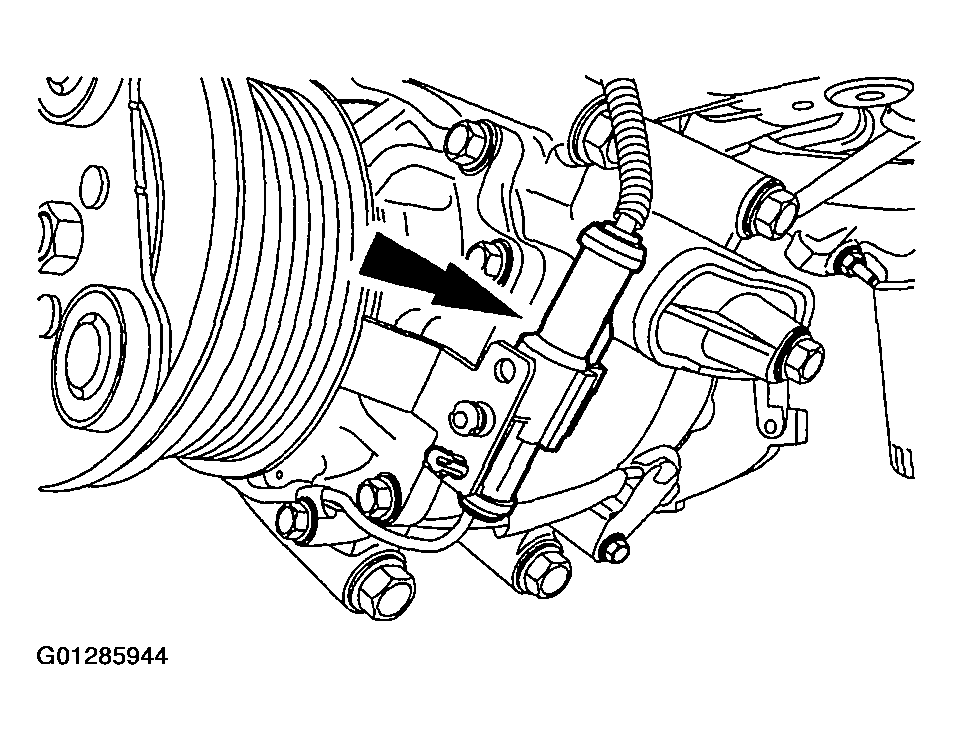

Connect the A/C electrical connector.

Fig 10: Connecting A/C Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the oil pressure switch electrical connector.

Fig 11: Connecting Oil Pressure Switch Electrical Connector
Courtesy of FORD MOTOR CO.

NOTE: LH is shown, RH is similar.

Fig 12: Connecting Two Camshaft Position (CMP) Sensor Electrical Connectors

Courtesy of FORD MOTOR CO.

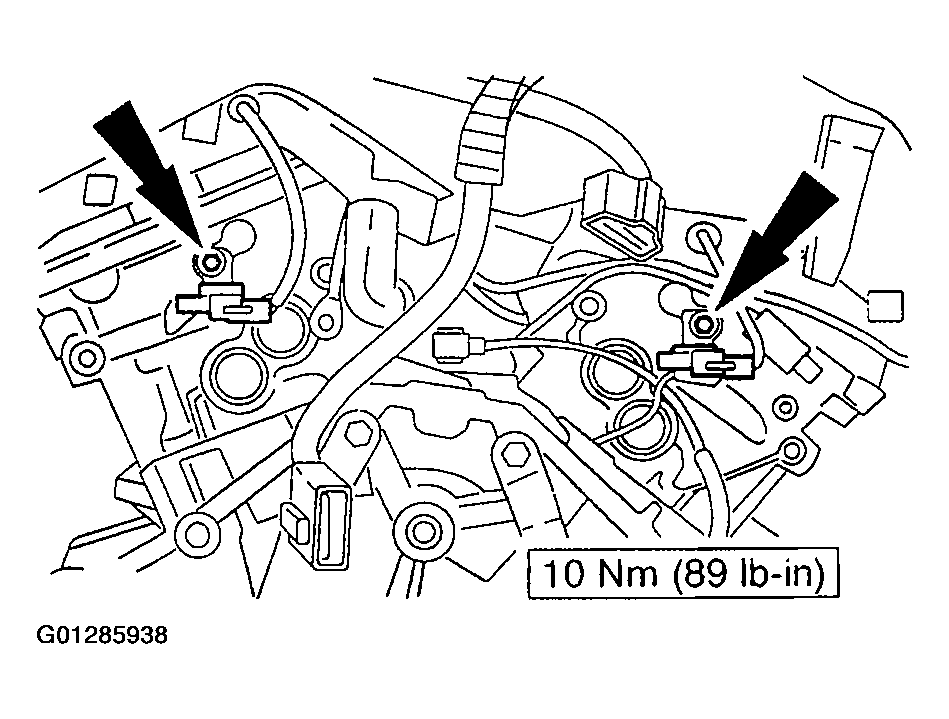

Connect the two camshaft position (CMP) sensor electrical connectors.

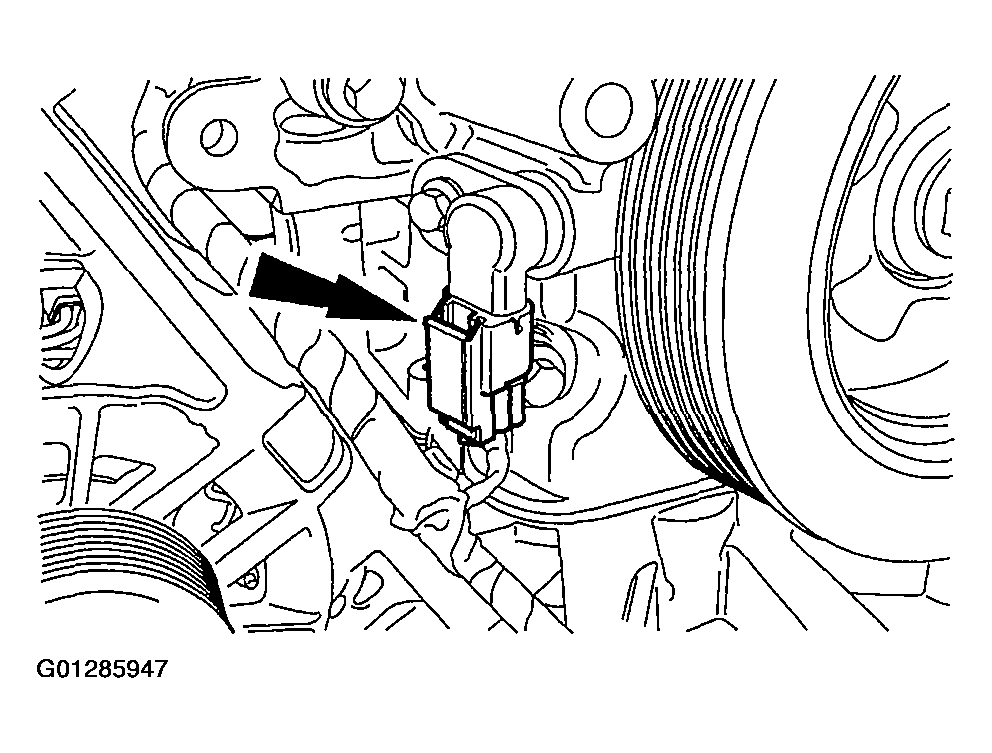

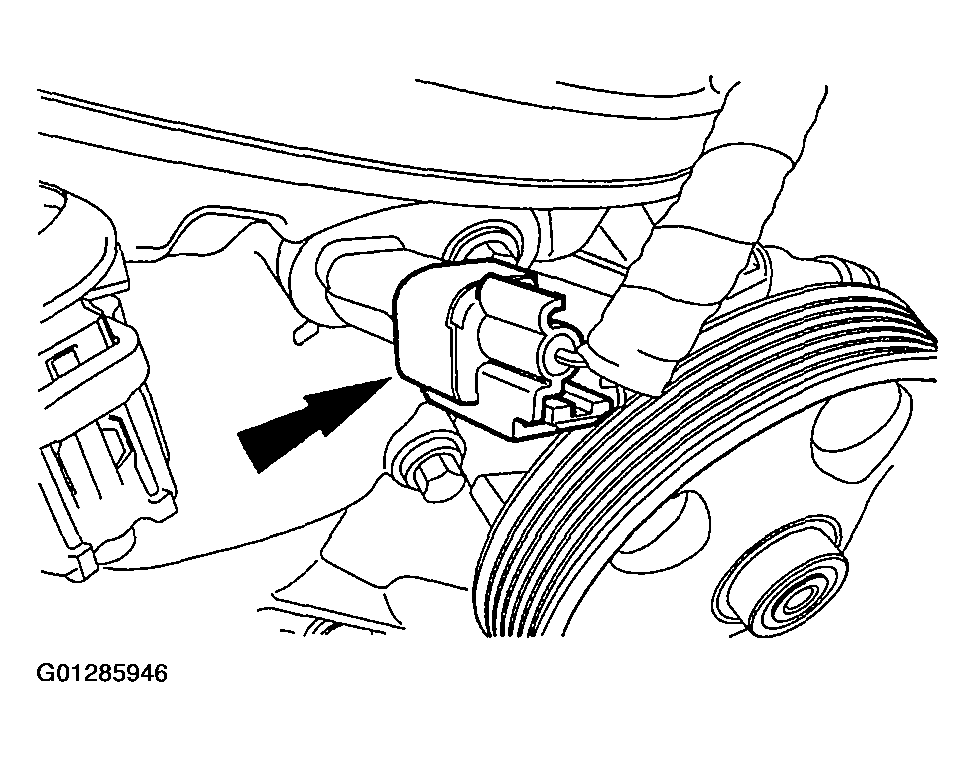

Connect the crankshaft position (CKP) sensor electrical connector.

Fig 13: Connecting Crankshaft Position (CKP) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.

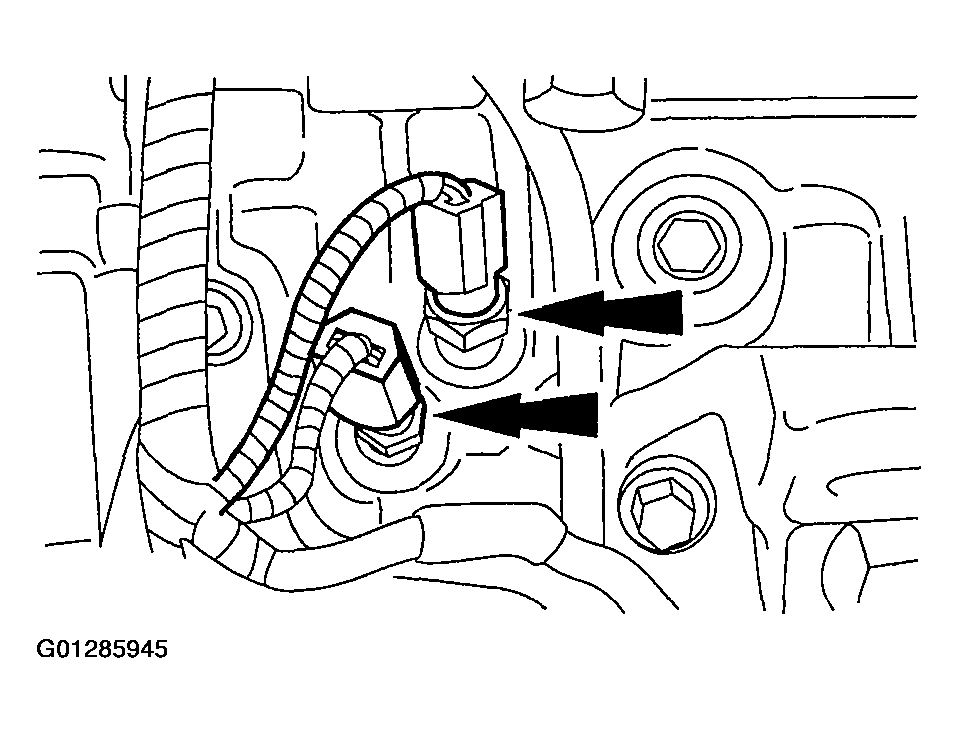

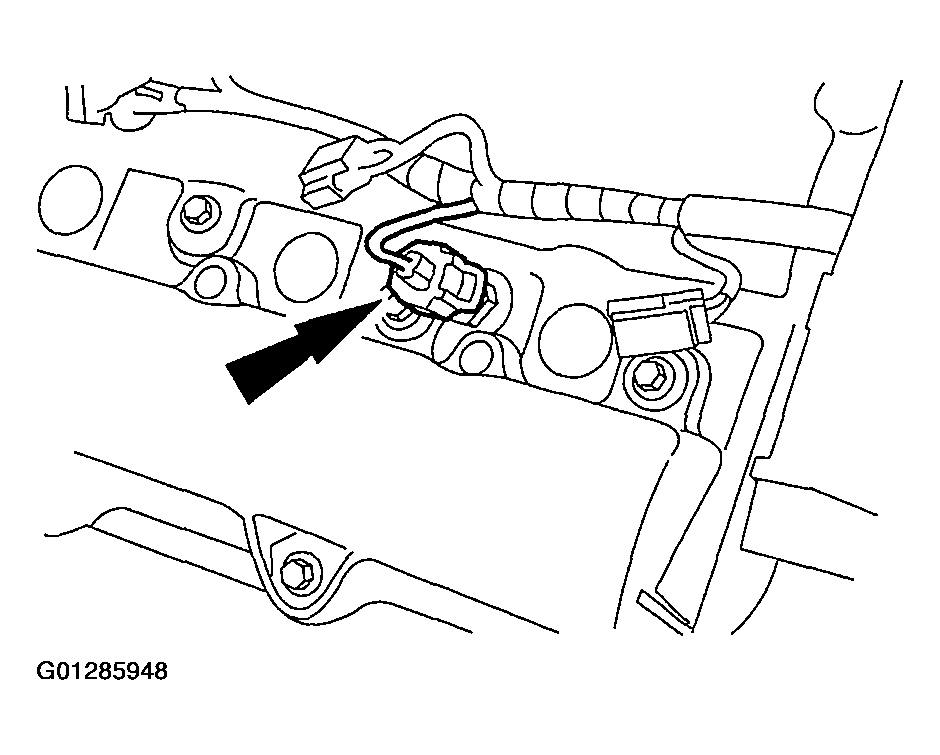

Connect the cylinder head temperature (CHT) sensor electrical connector.

Fig 14: Connecting Cylinder Head Temperature (CHT) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the fuel injector wiring harness connector.

Fig 15: Connecting Fuel Injector Wiring Harness Connector
Courtesy of FORD MOTOR CO.

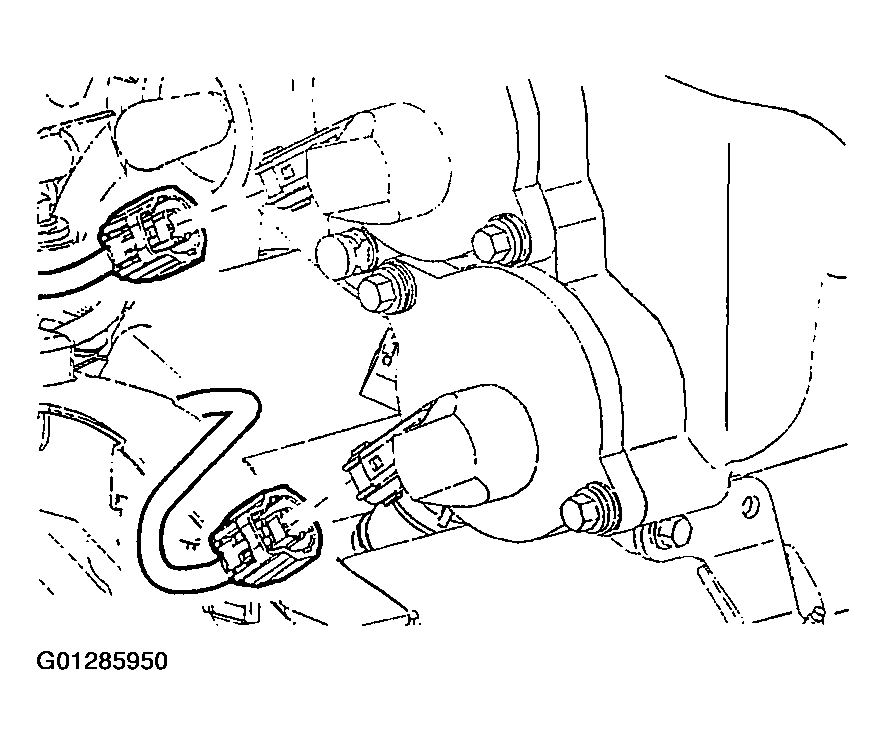

Connect the intake manifold tuning valve electrical connectors.

Fig 16: Connecting Intake Manifold Tuning Valve Electrical Connectors
Courtesy of FORD MOTOR CO.

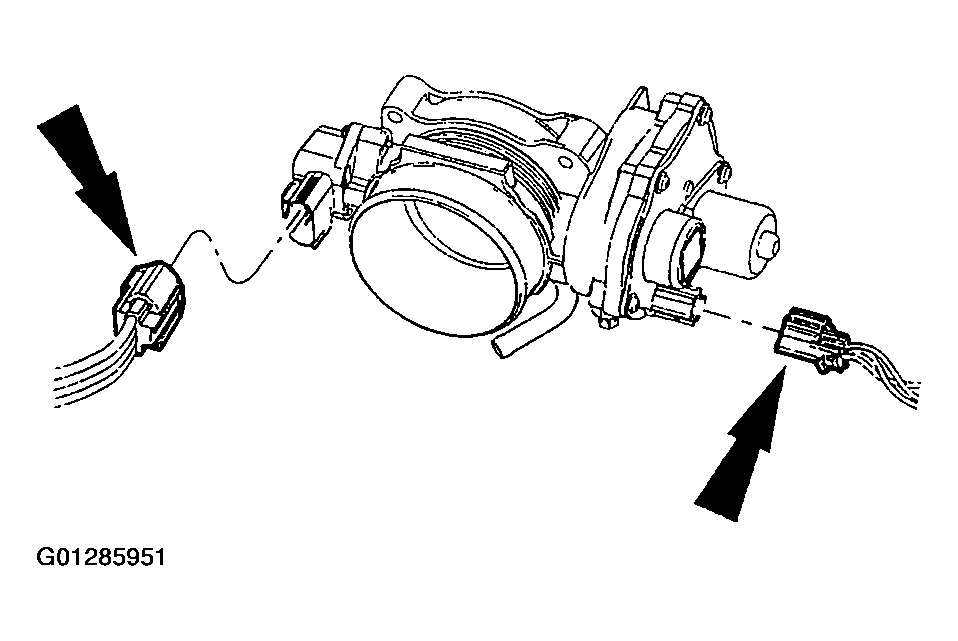

Connect the throttle body electrical connectors.

Fig 17: Connecting Throttle Body Electrical Connectors

Courtesy of FORD MOTOR CO.
