Item 134: Engine Wiring Harness Assembly Note

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

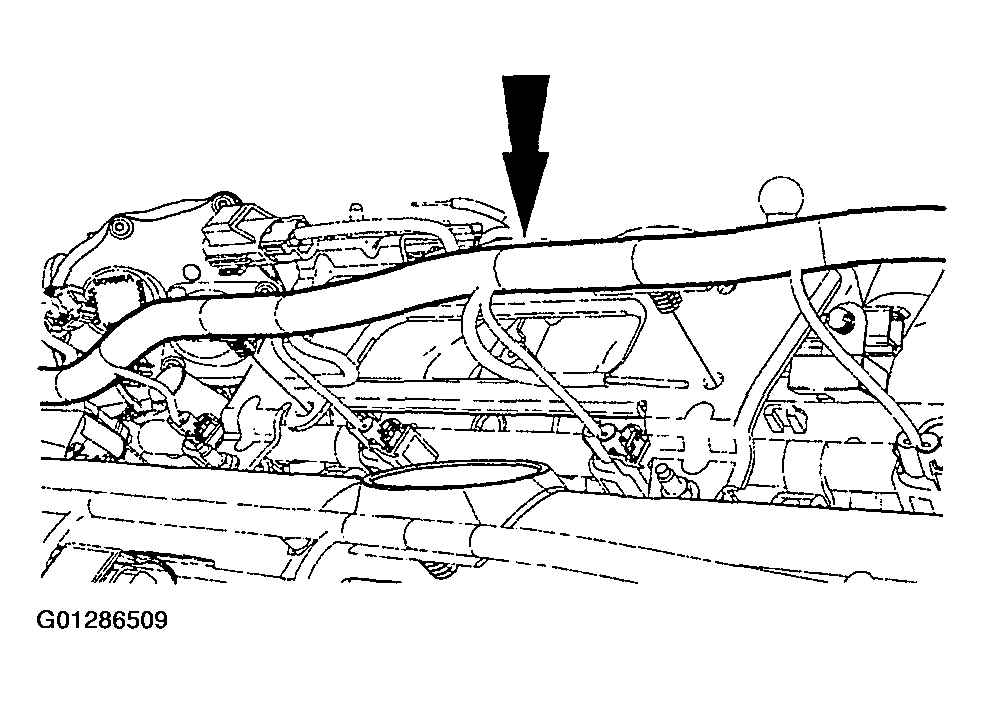

Install the wiring harness onto the front cover.

Fig 1: Installing Wiring Harness Onto Front Cover
Courtesy of FORD MOTOR CO.

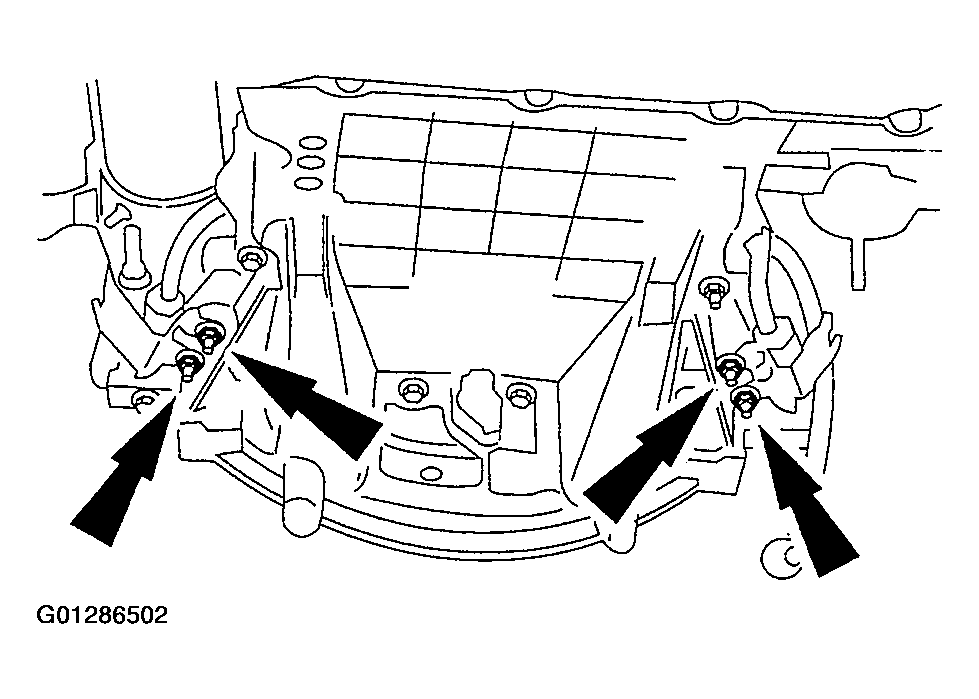

Install the wiring harness onto the front cover.

Fig 2: Installing Wiring Harness Onto Front Cover
Courtesy of FORD MOTOR CO.

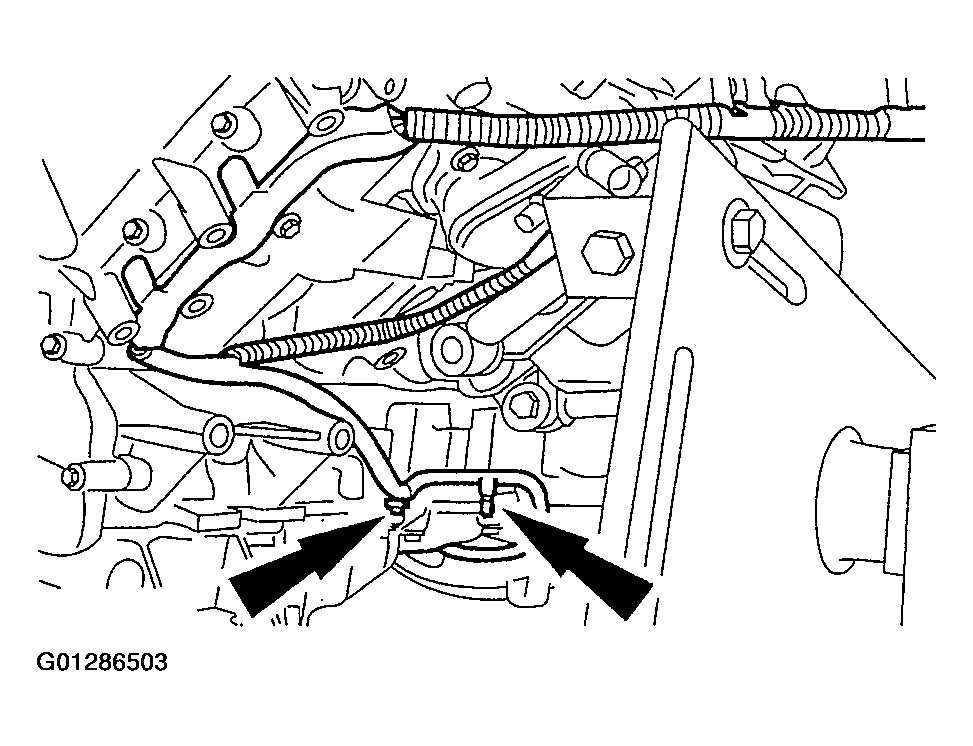

Connect the crankshaft position (CKP) sensor electrical connector.

Fig 3: Connecting Crankshaft Position (CKP) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.

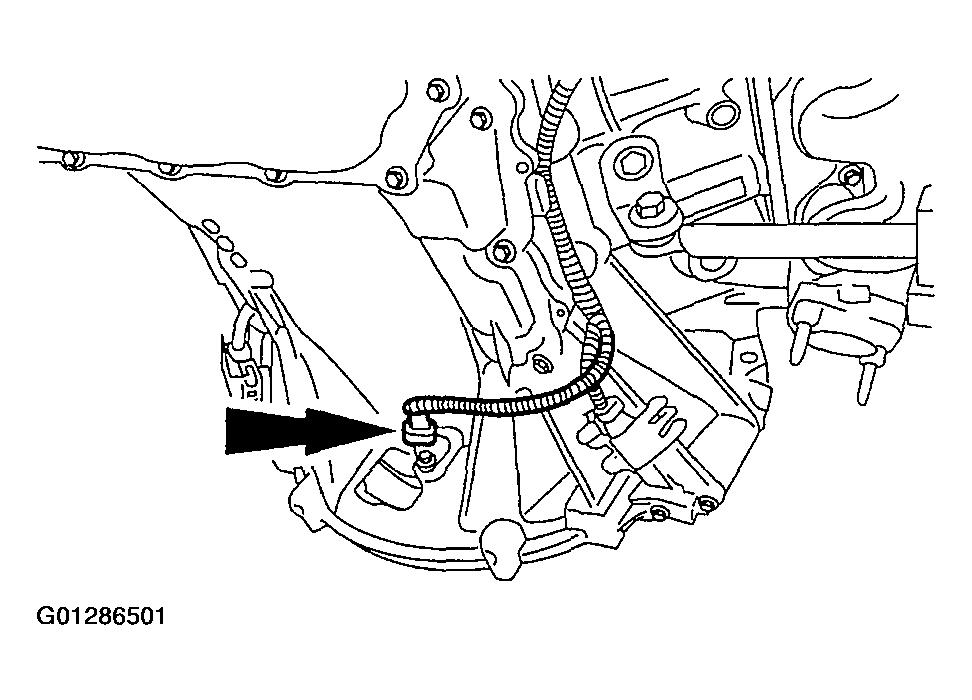

Install the exhaust gas oxygen sensor (HO2S) connectors onto the brackets.

Fig 4: Installing Exhaust Gas Oxygen Sensor (HO2S) Connectors Onto Brackets
Courtesy of FORD MOTOR CO.

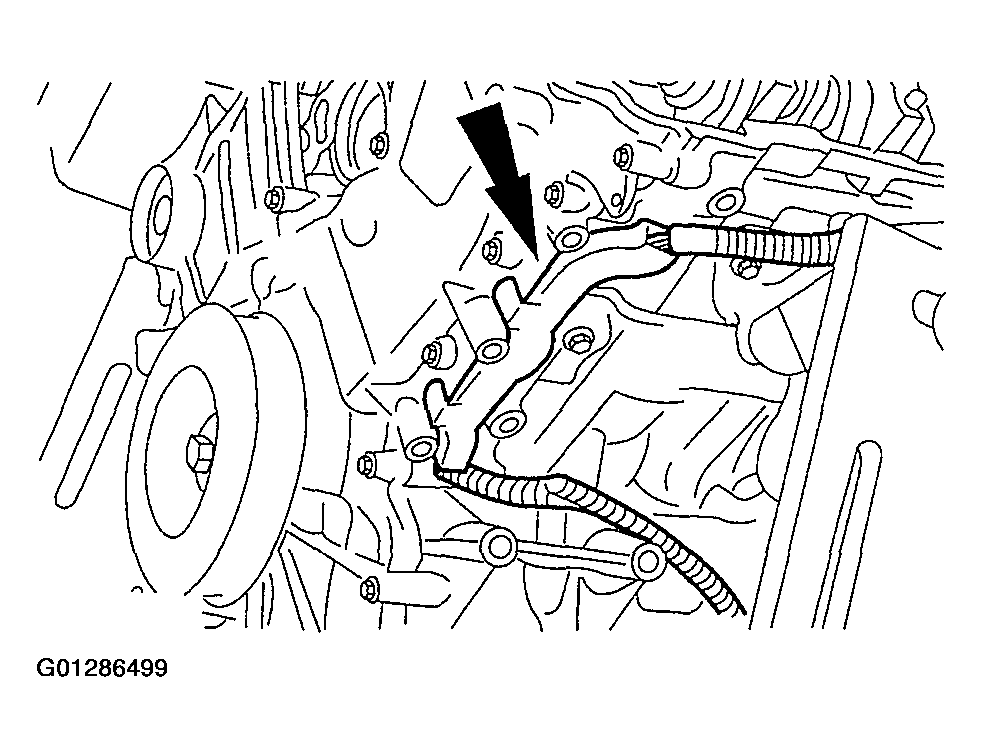

Connect the pin-type retainers.

Fig 5: Connecting Pin-Type Retainers
Courtesy of FORD MOTOR CO.

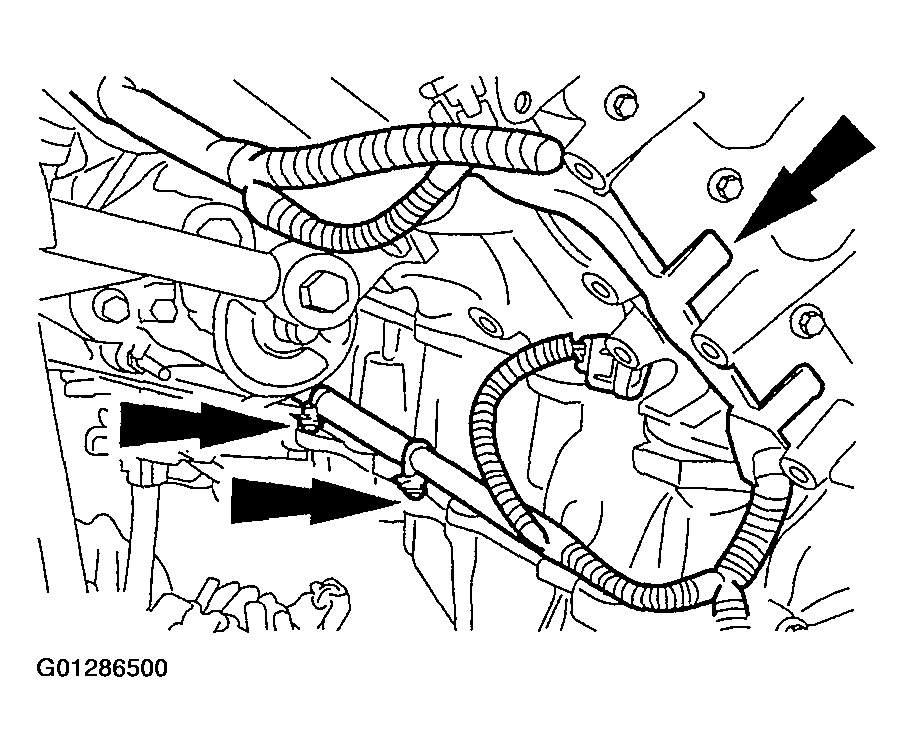

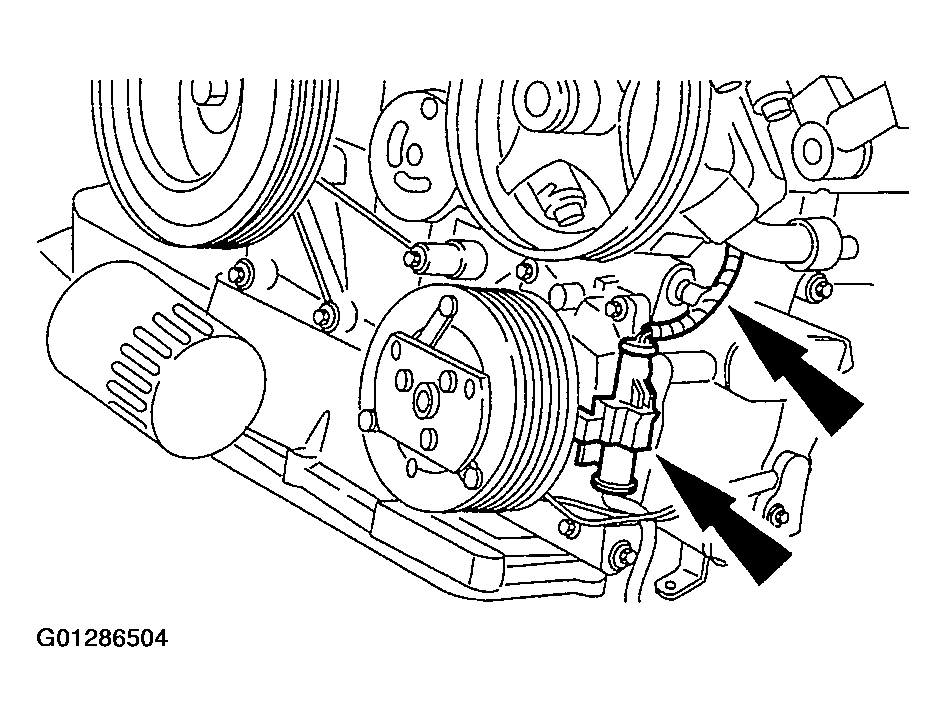

Connect the A/C electrical connector and the retaining clip.

Fig 6: Connecting A/C Electrical Connector And Retaining Clip
Courtesy of FORD MOTOR CO.

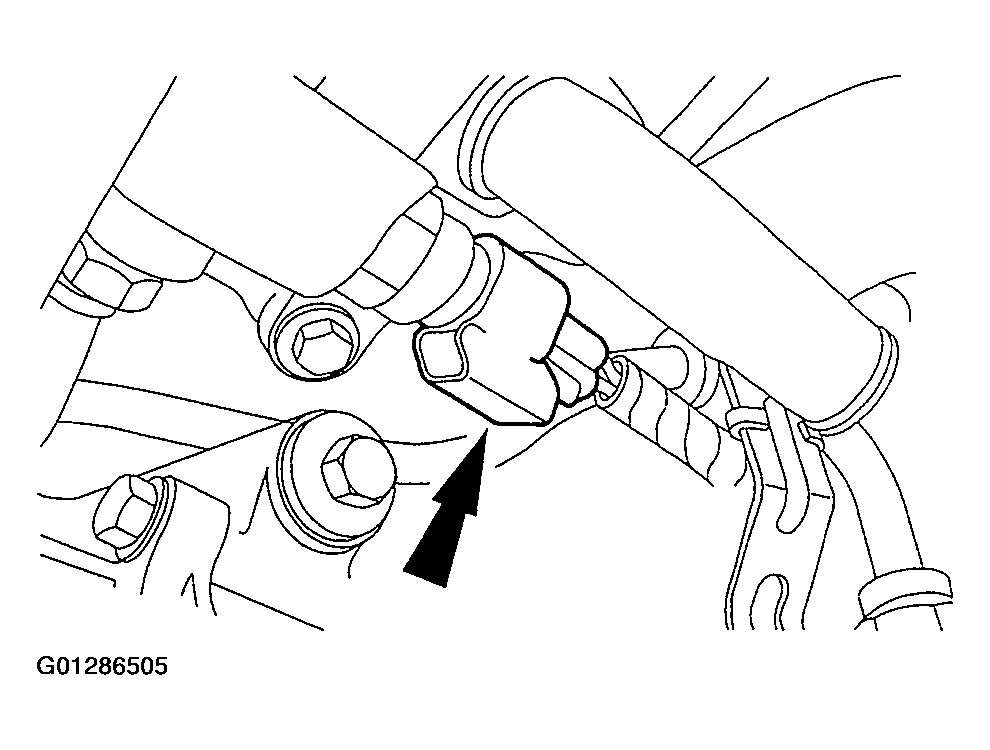

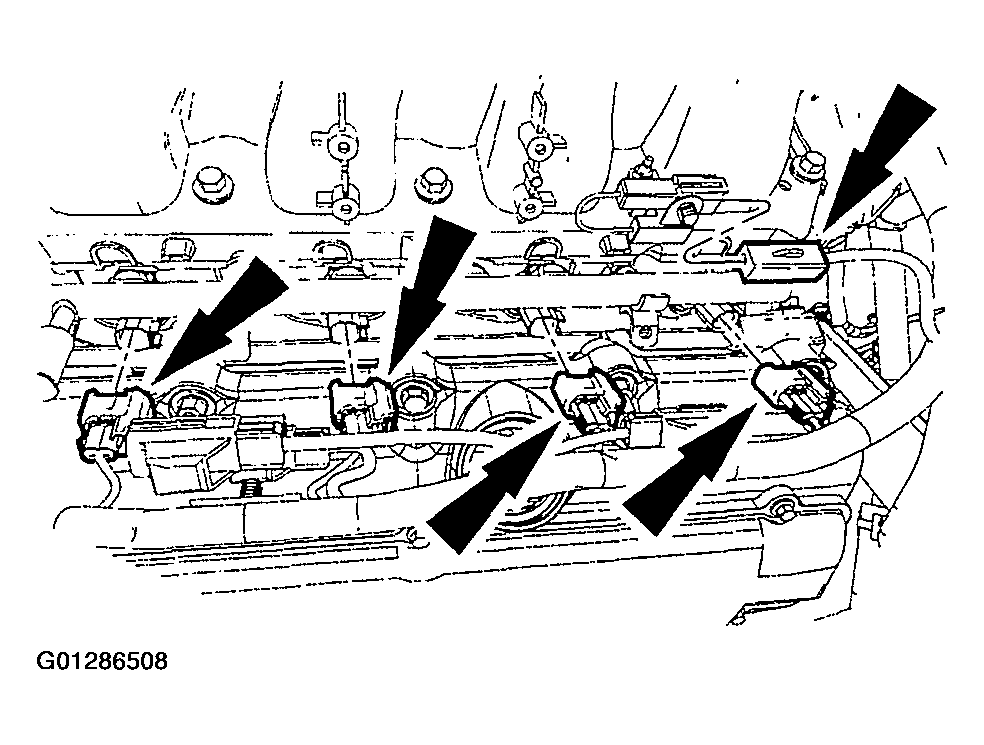

Connect the power steering pressure (PSP) switch.

Fig 7: Connecting Power Steering Pressure (PSP) Switch
Courtesy of FORD MOTOR CO.

NOTE: RH is shown, LH is similar.

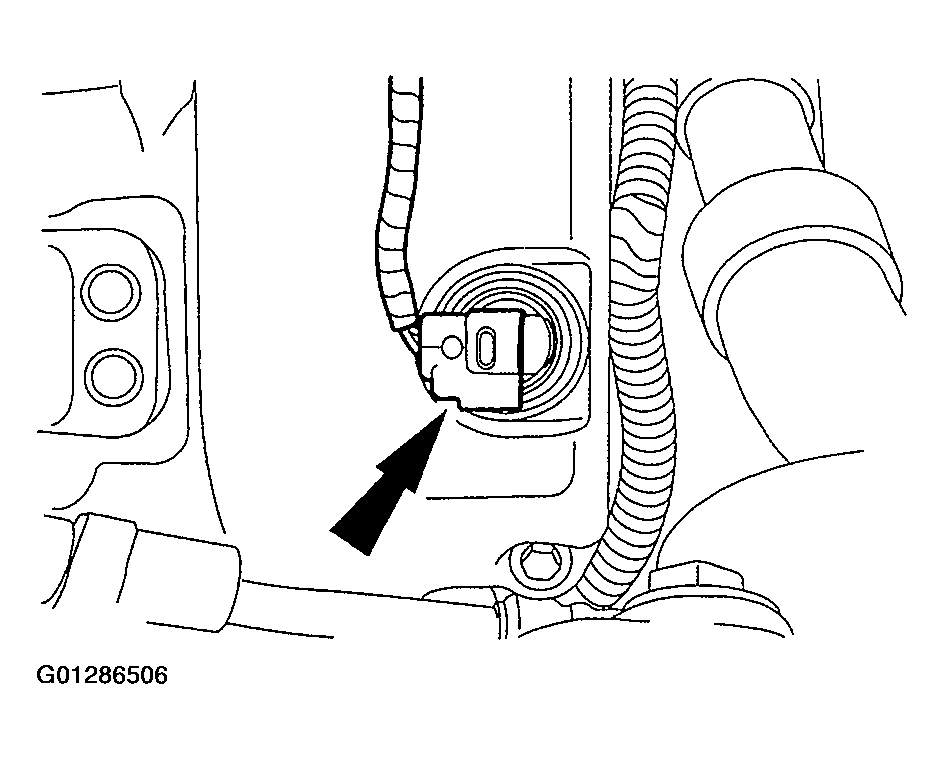

Fig 8: Connecting Variable Cam Timing (VCT) Sensor Electrical Connector

Courtesy of FORD MOTOR CO.

Connect the variable cam timing (VCT) sensor electrical connector.

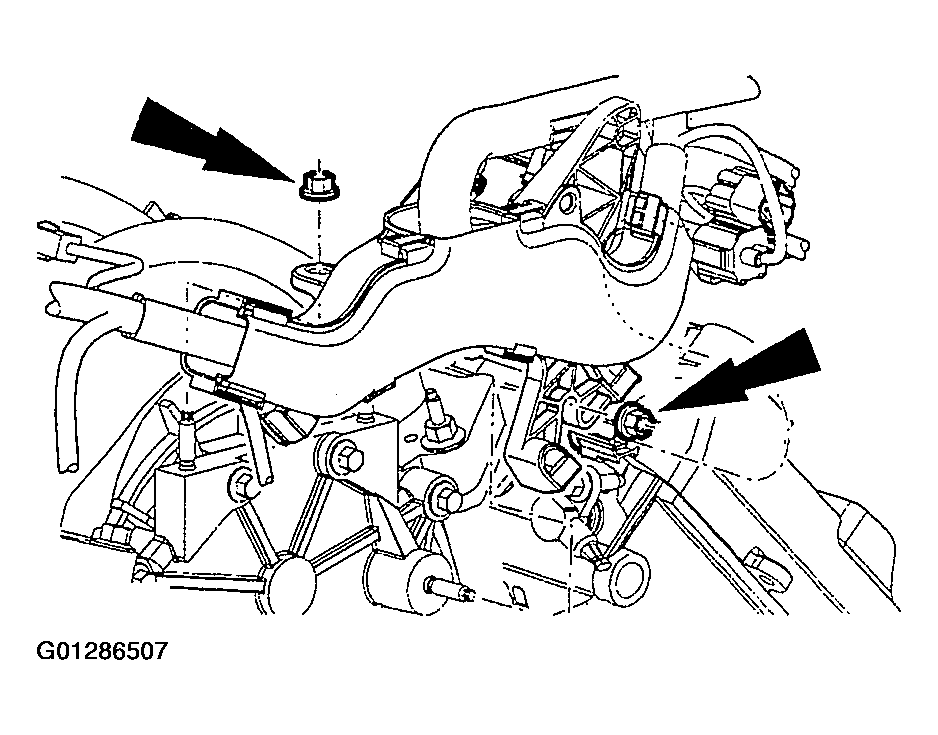

Install the nuts and the engine wiring harness retainer.

Fig 9: Installing Nuts And Engine Wiring Harness Retainer
Courtesy of FORD MOTOR CO.

NOTE: LH is shown, RH is similar.

Fig 10: Connecting Fuel Injector And Radio Interference Capacitor Electrical Connectors

Courtesy of FORD MOTOR CO.

Connect the fuel injector and radio interference capacitor electrical connectors.

NOTE: LH is shown, RH is similar.

Fig 11: Connecting Engine Wiring Harness Retainers From Engine Appearance Cover Support Bracket

Courtesy of FORD MOTOR CO.

Connect the engine wiring harness retainers from the engine appearance cover support bracket.
