Items 171 and 172: Flexplate Assembly Note

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Install the flexplate and tighten the bolts in two stages in the sequence shown.
- Stage 1: Tighten to 15 Nm (11 lb-ft).
- Stage 2: Tighten to 110 Nm (81 lb-ft).

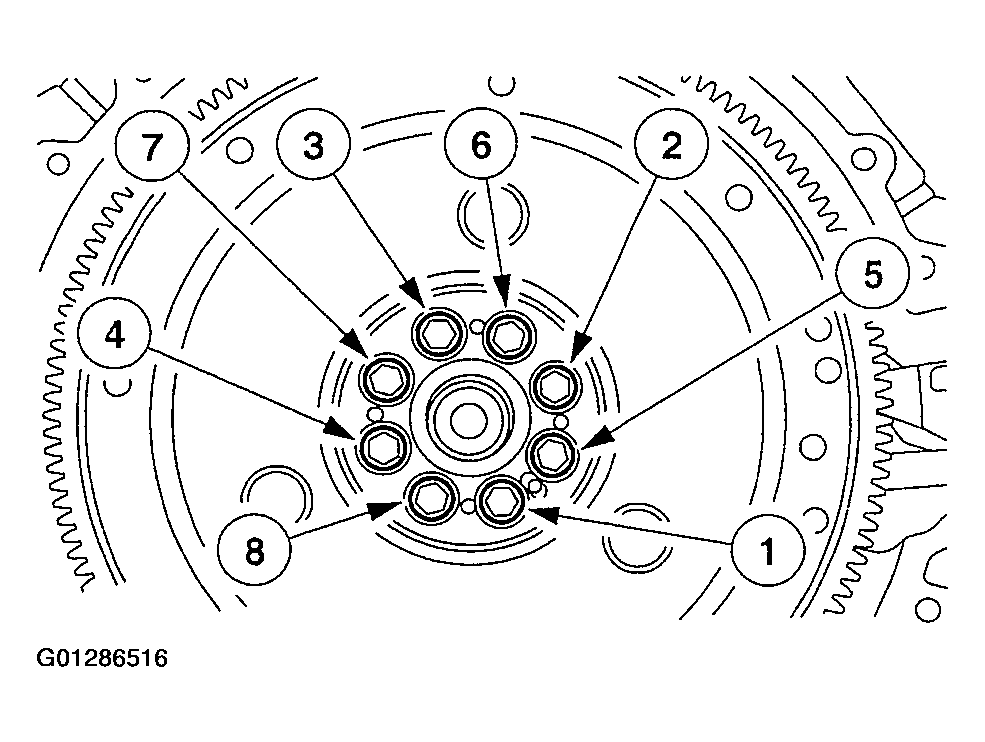

Fig 1: Installing Flexplate Bolts
Courtesy of FORD MOTOR CO.
