Cylinder Head: Material

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Material Specifications

G01286412

Courtesy of FORD MOTOR CO.

Remove the components in the order indicated in the following illustration and table.

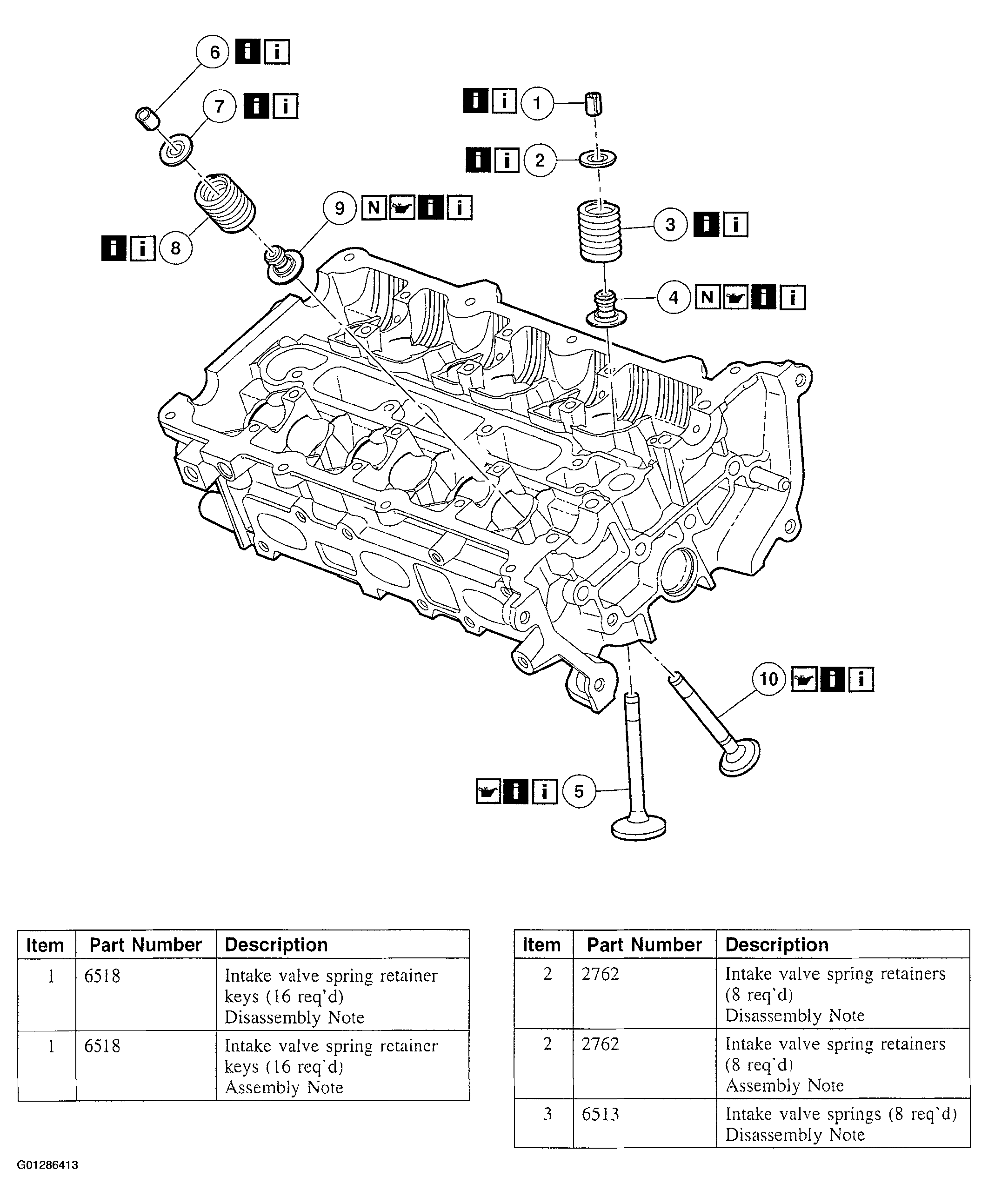

Fig 2: Removing Intake Valve Retainer Components
Courtesy of FORD MOTOR CO.

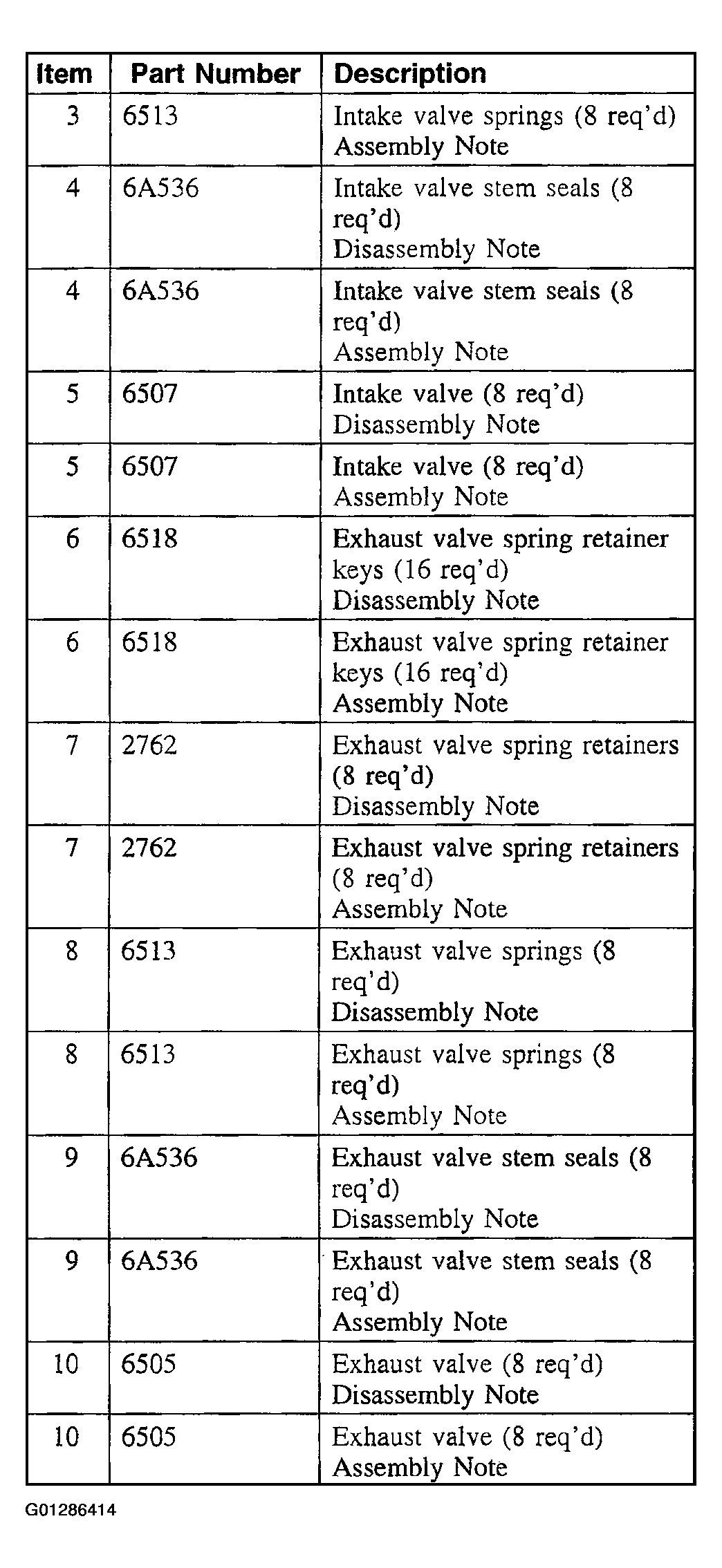

Fig 3: Parts Description Chart
Courtesy of FORD MOTOR CO.
To assemble, reverse the disassembly procedure.
