Exhaust Gas Recirculation (EGR) Valve: Notes

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine appearance cover.
To remove individual components, carry out only the individual steps.

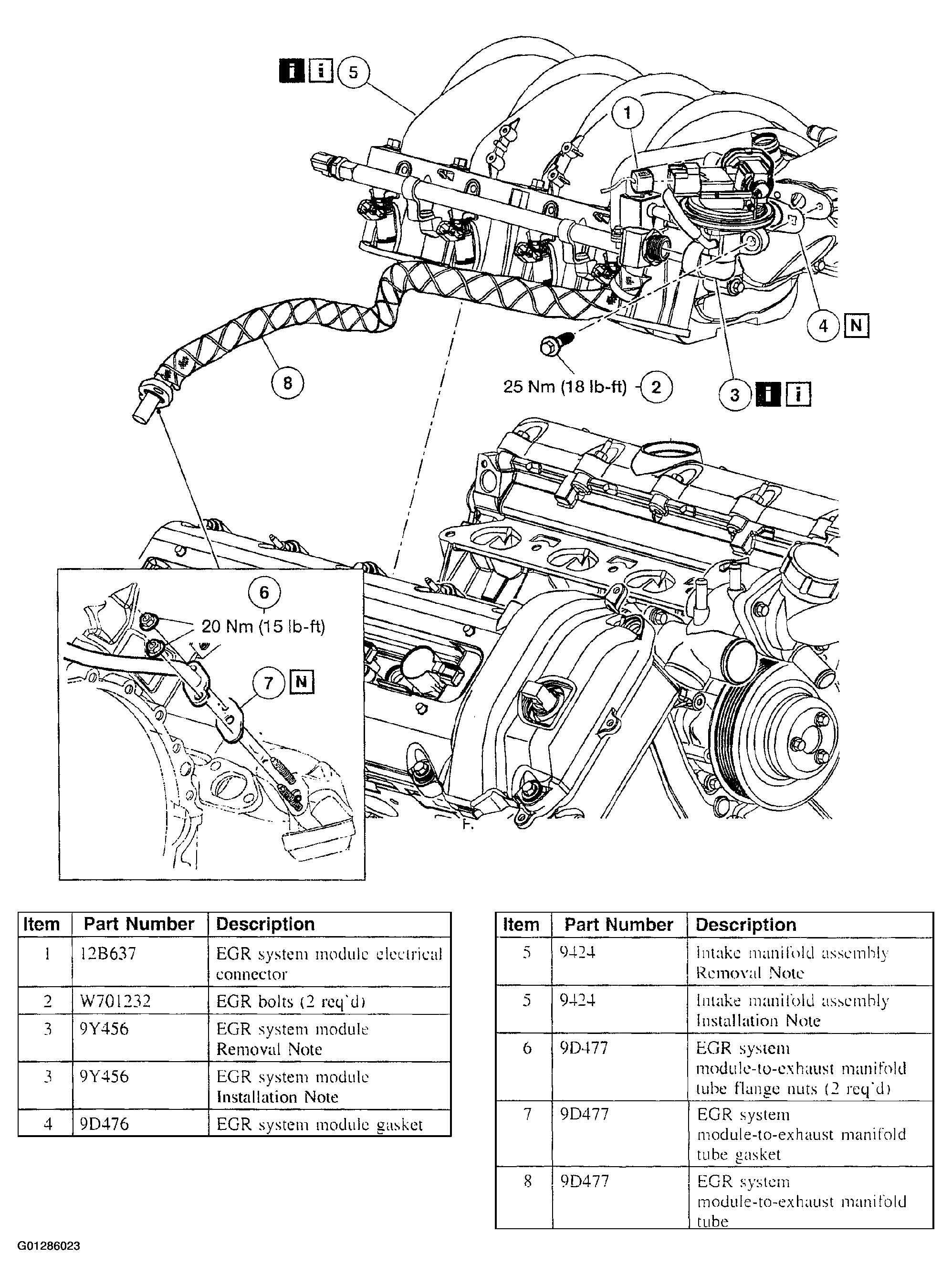

Fig 1: Steps Of Components Removal Chart
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table.
To install, reverse the removal procedure.

Fig 2: Installing Exhaust Gas Recirculation (EGR) Valve
Courtesy of FORD MOTOR CO.
