DATC Module C228b

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

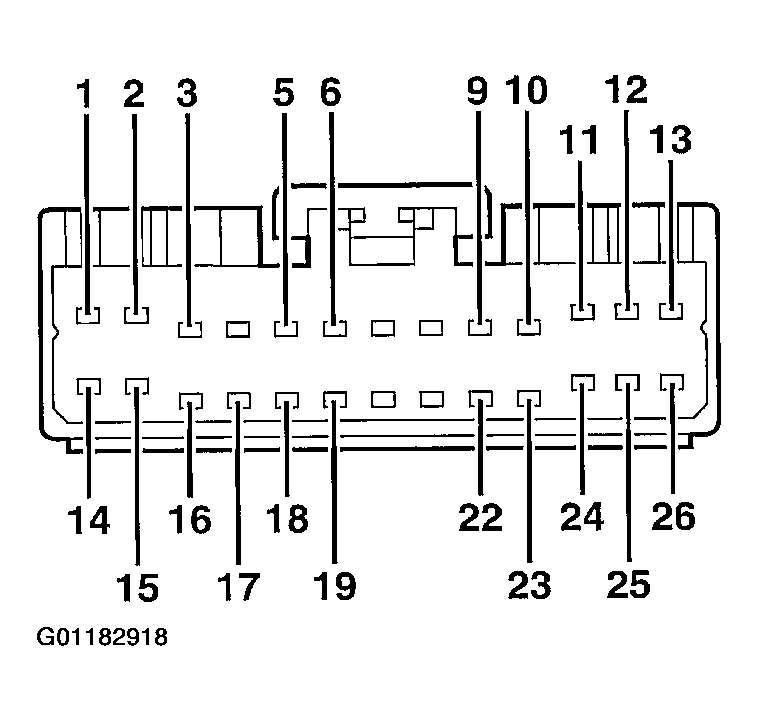

Fig 1: Identifying DATC Module C228b

Courtesy of FORD MOTOR CO.

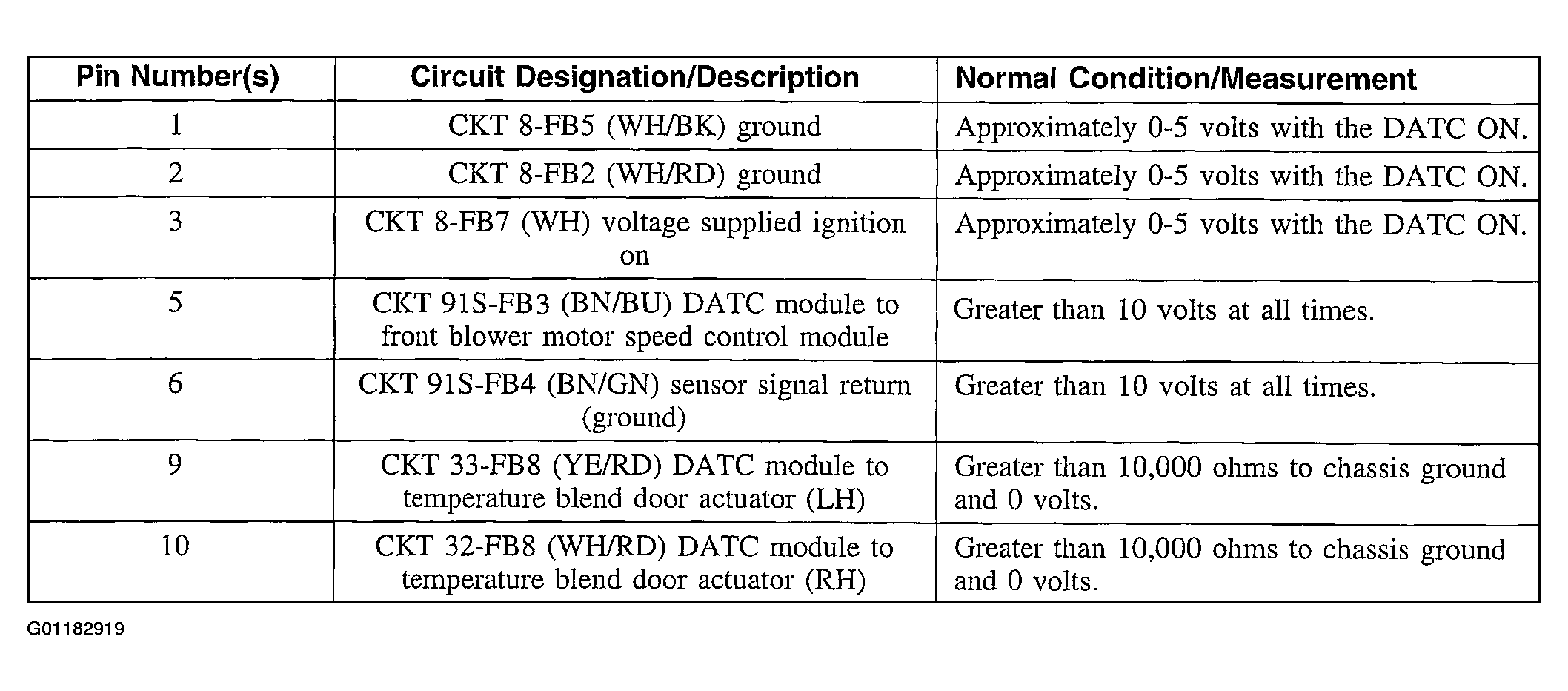

Fig 2: DATC Module C228b Pin Specifications Chart (1 - 10)

Courtesy of FORD MOTOR CO.

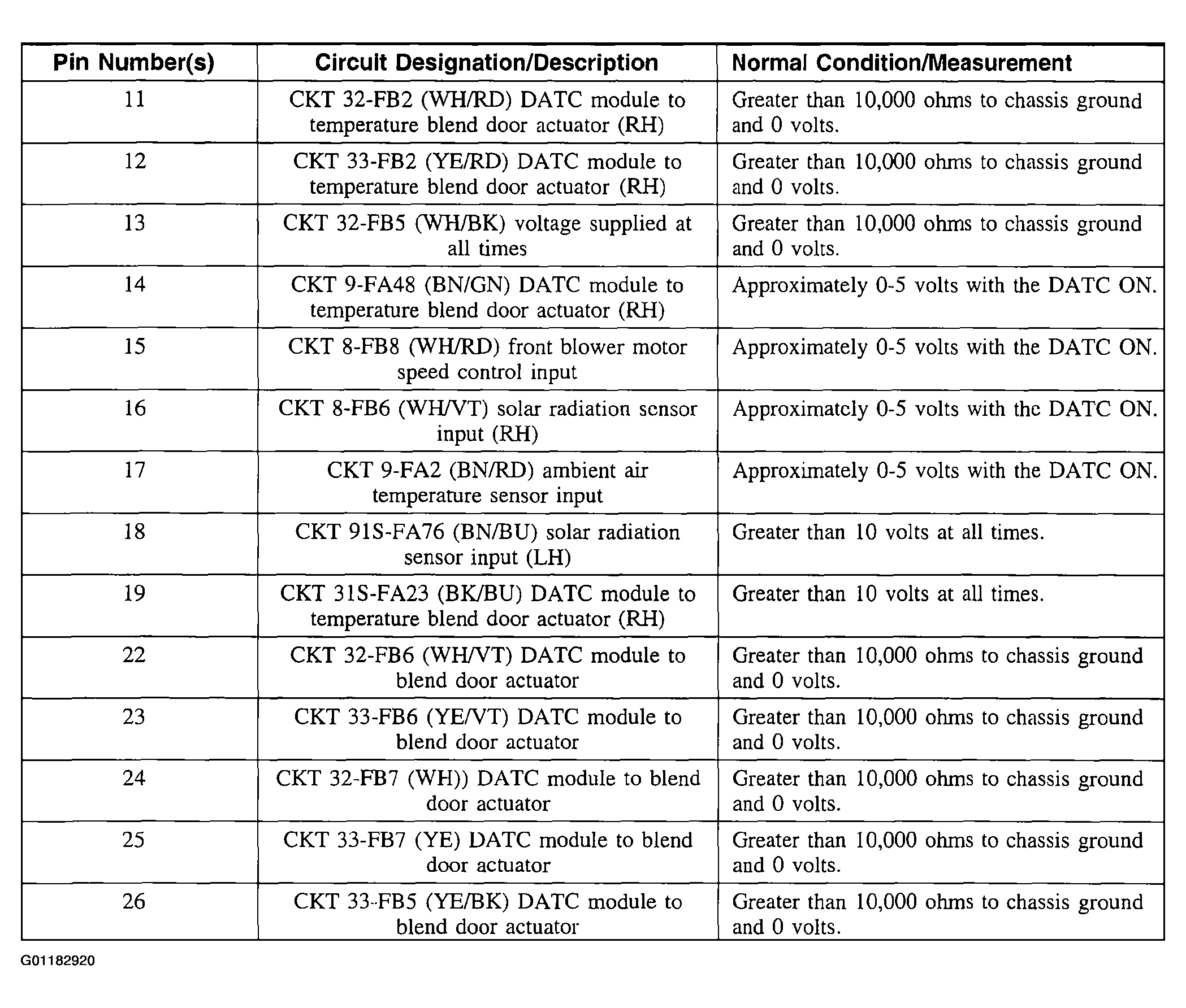

Fig 3: DATC Module C228b Pin Specifications Chart (11 - 26)

Courtesy of FORD MOTOR CO.
