Section 345 (Climate Control System)
›
Diagnosis And Testing
›
Climate Control System
›
Symptom Chart
›
Connector Circuit Reference
›
Powertrain Control Module (PCM) C175a
Powertrain Control Module (PCM) C175a
WARNING:
This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Powertrain Control Module (PCM) C175a
Courtesy of FORD MOTOR CO.

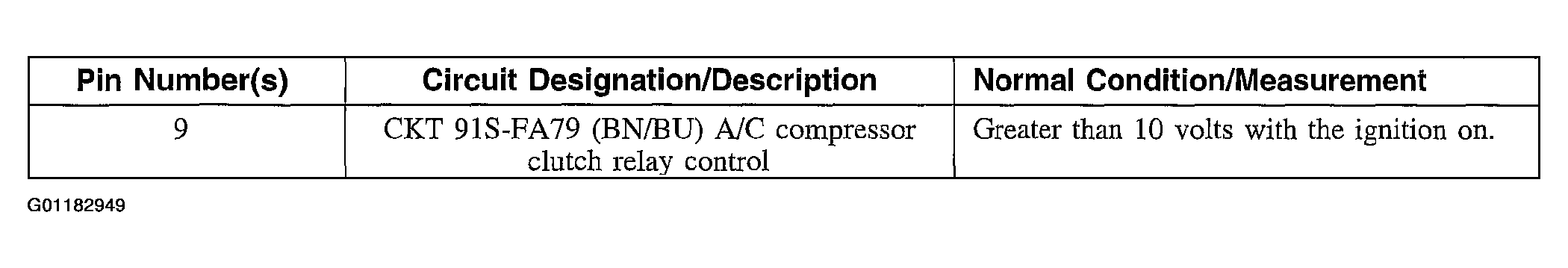

Fig 2: Powertrain Control Module (PCM) C175a Pin Specifications Chart (9)
Courtesy of FORD MOTOR CO.
