Section 602 (HVAC - Climate Control System)
›
Diagnosis And Testing
›
Climate Control System
›
Symptom Chart
›
Connector Circuit Reference
›
DATC Module C228b
DATC Module C228b
WARNING:
This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

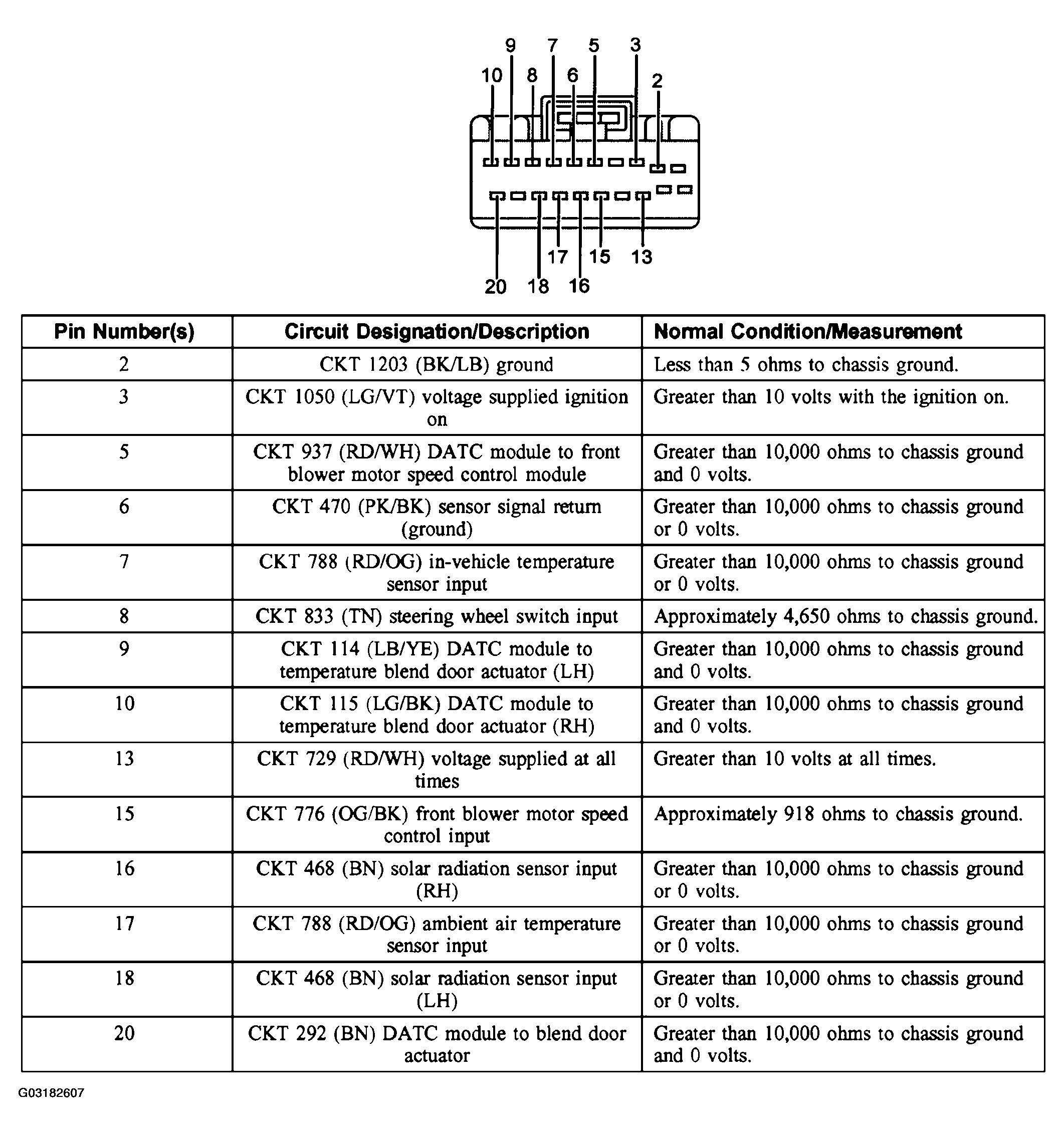

Fig 1: Identifying DATC Module C228b Connector Pins
Courtesy of FORD MOTOR CO.
