Component Locations
WARNING: This page is about a different car, the 2002 Ford ZX2 and 2002 Ford Escort. However, it is still accessible from the selected car via links, so may be relevant.

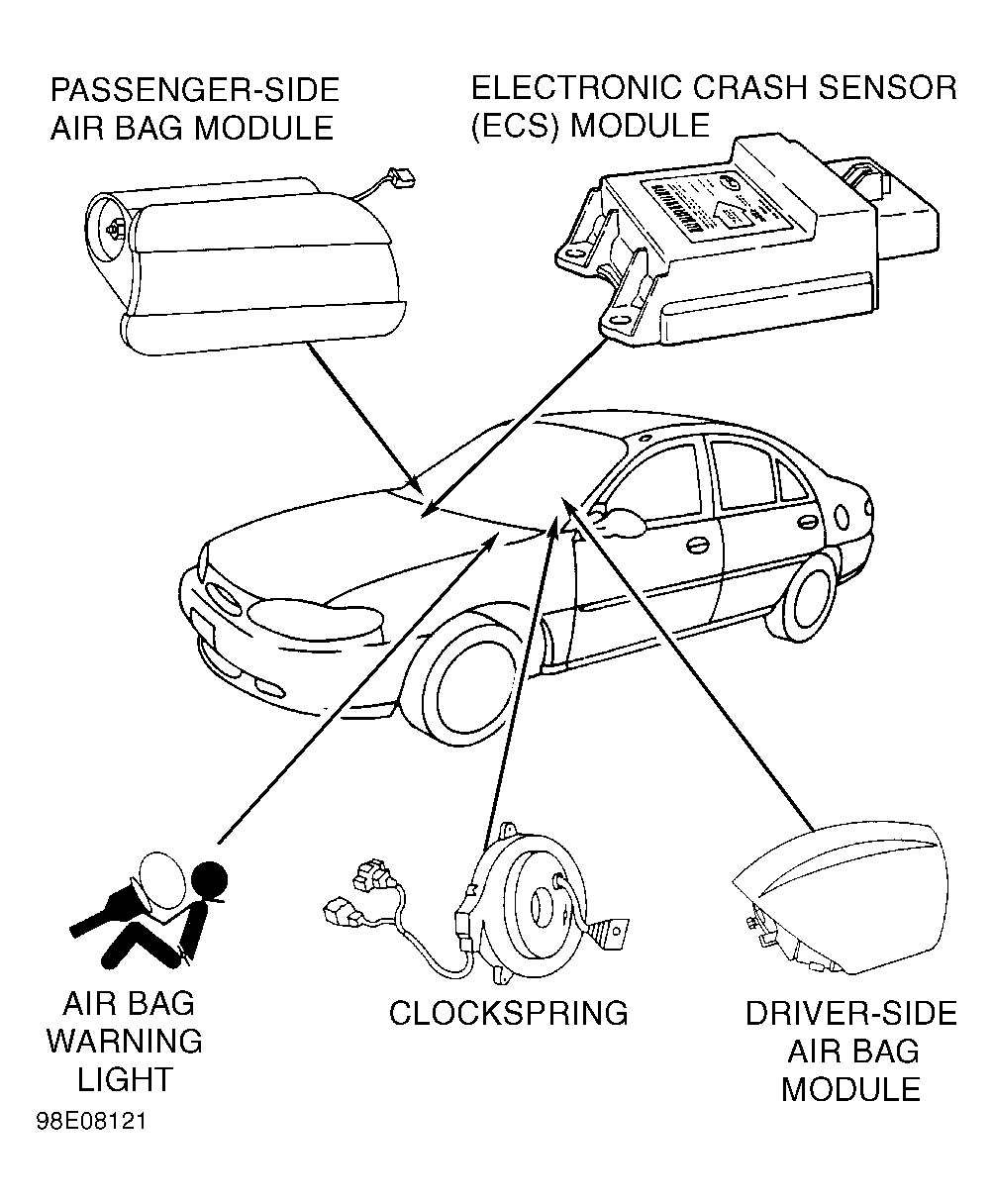

RESTRAINT SYSTEM COMPONENT LOCATIONS
| Component | (1) Location | ||
|---|---|---|---|
| Clockspring | On steering column, below steering wheel | ||
| Driver-side air bag module | Front face of steering wheel | ||
| Electronic crash sensor | Center tunnel, under instrument panel | ||
| Passenger-side air bag module | Right side of instrument panel, above glove box | ||
|
|||
