Steering column position switch

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

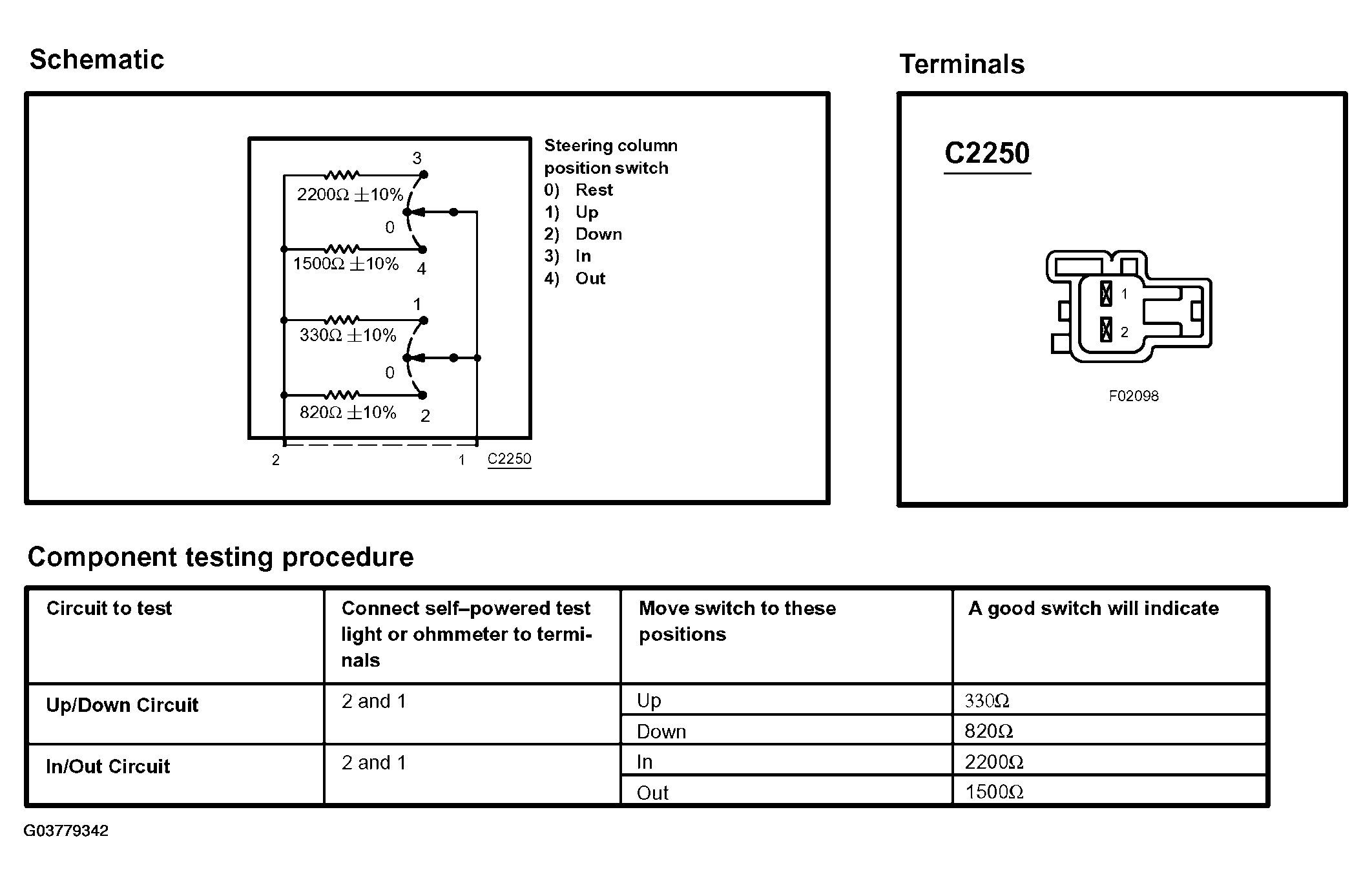

Fig 1: Testing Steering Column Position Switch
G03779342Courtesy of FORD MOTOR CO.
