Shift Linkage: Notes

WARNING: This page is about a different variant/trim than selected.

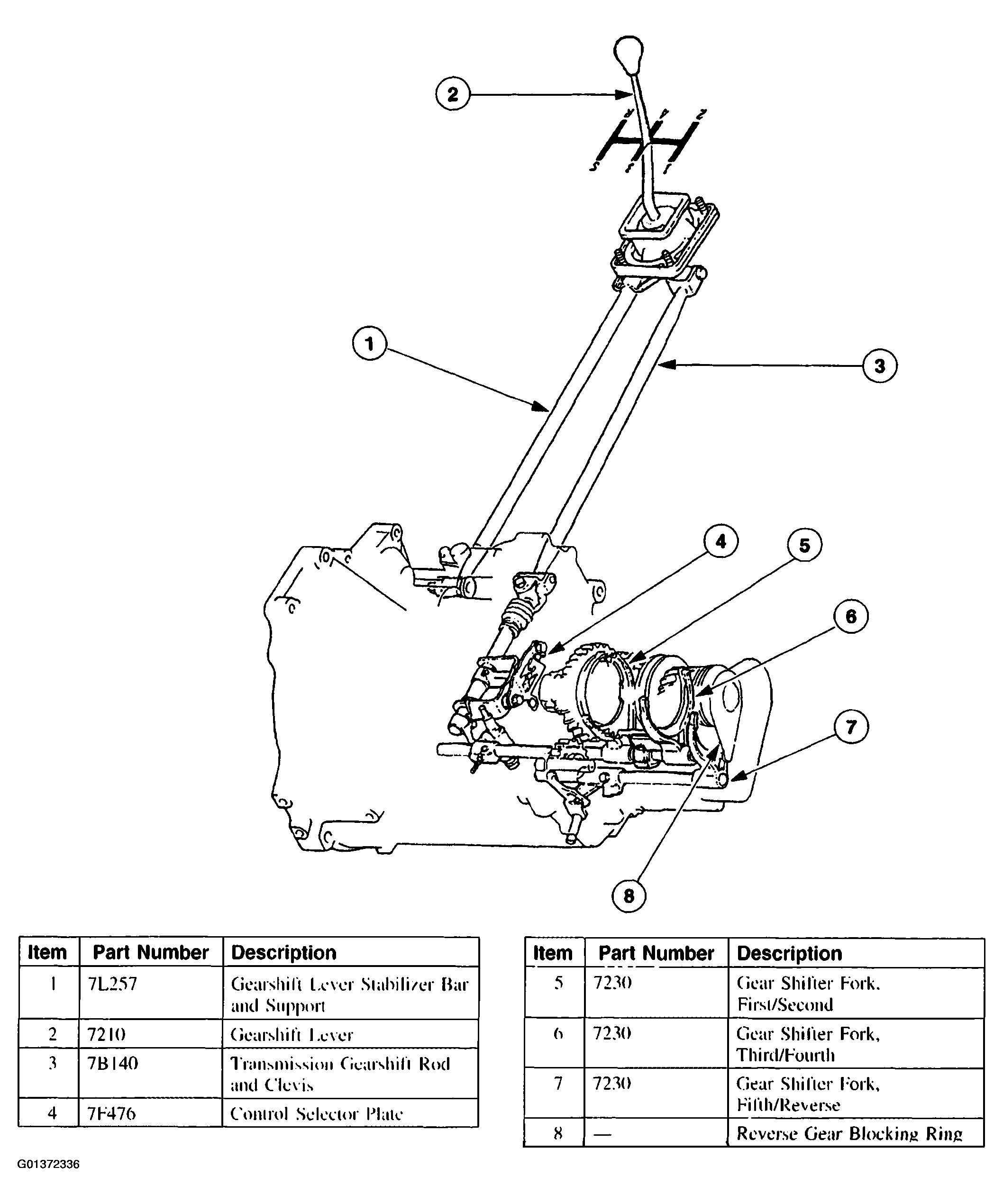

Fig 1: Identifying Shift Linkage Components
G01372336Courtesy of FORD MOTOR CO.
