Manual A/C
The manual climate control system heats or cools the vehicle interior depending on the function selector position and the temperature selected. The function selector position determines heating or cooling and air distribution. The temperature control setting determines air temperature.

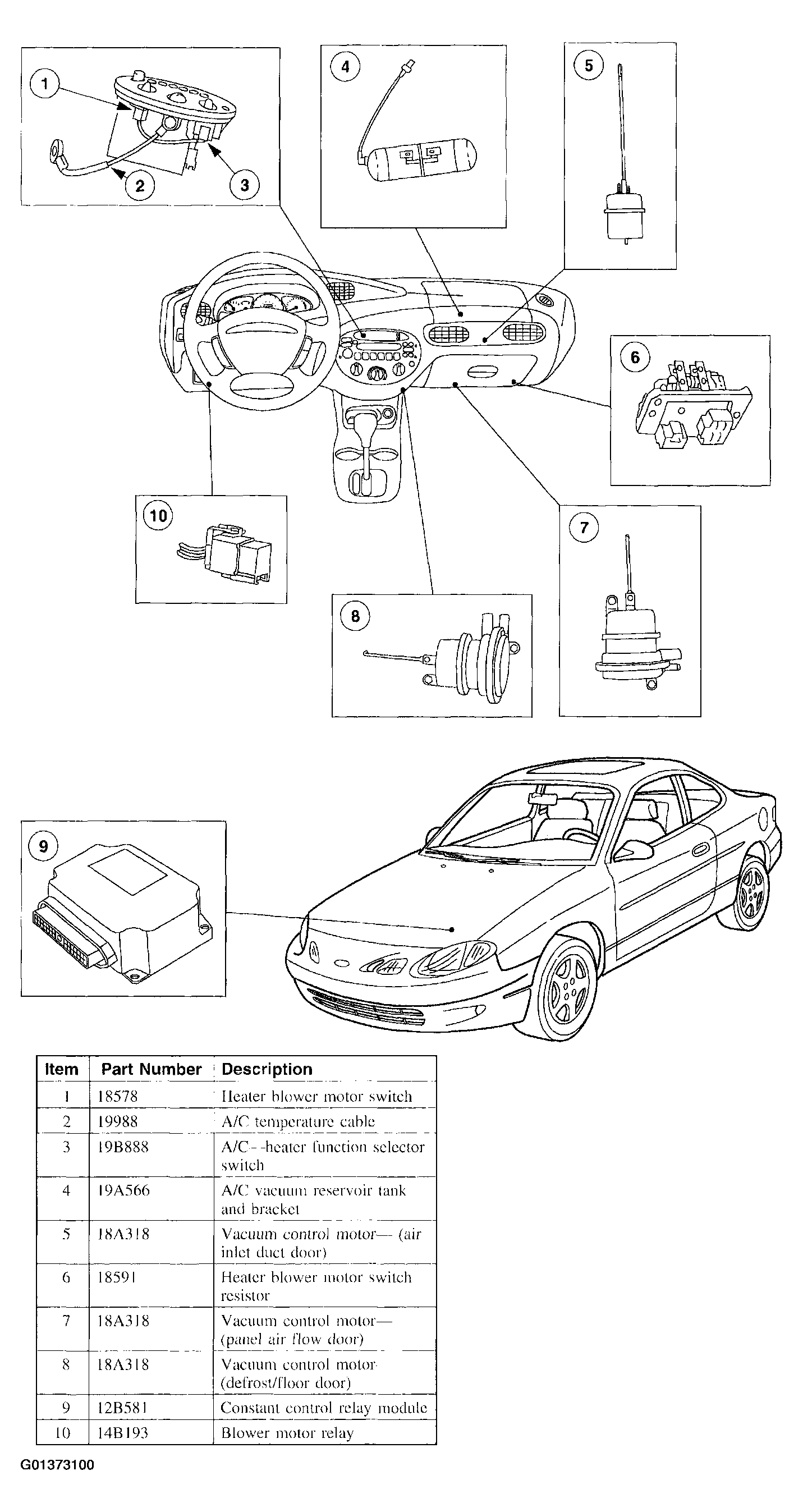

The manual climate control components are used to:
- select air inlet source (outside or recirculated).
- select blower motor speed.
- select discharge air temperature (temperature blend).
- select discharge air location (defrost, panel, floor).
- select A/C compressor clutch operation.
