FixVault
Home
›
Ford
›
2003
›
ZX2 Automatic
›
Repair and Diagnosis
›
Restraints
›
Restraints Control Systems
›
Safety Belt System
›
Specifications
›
Torque Specifications
Torque Specifications

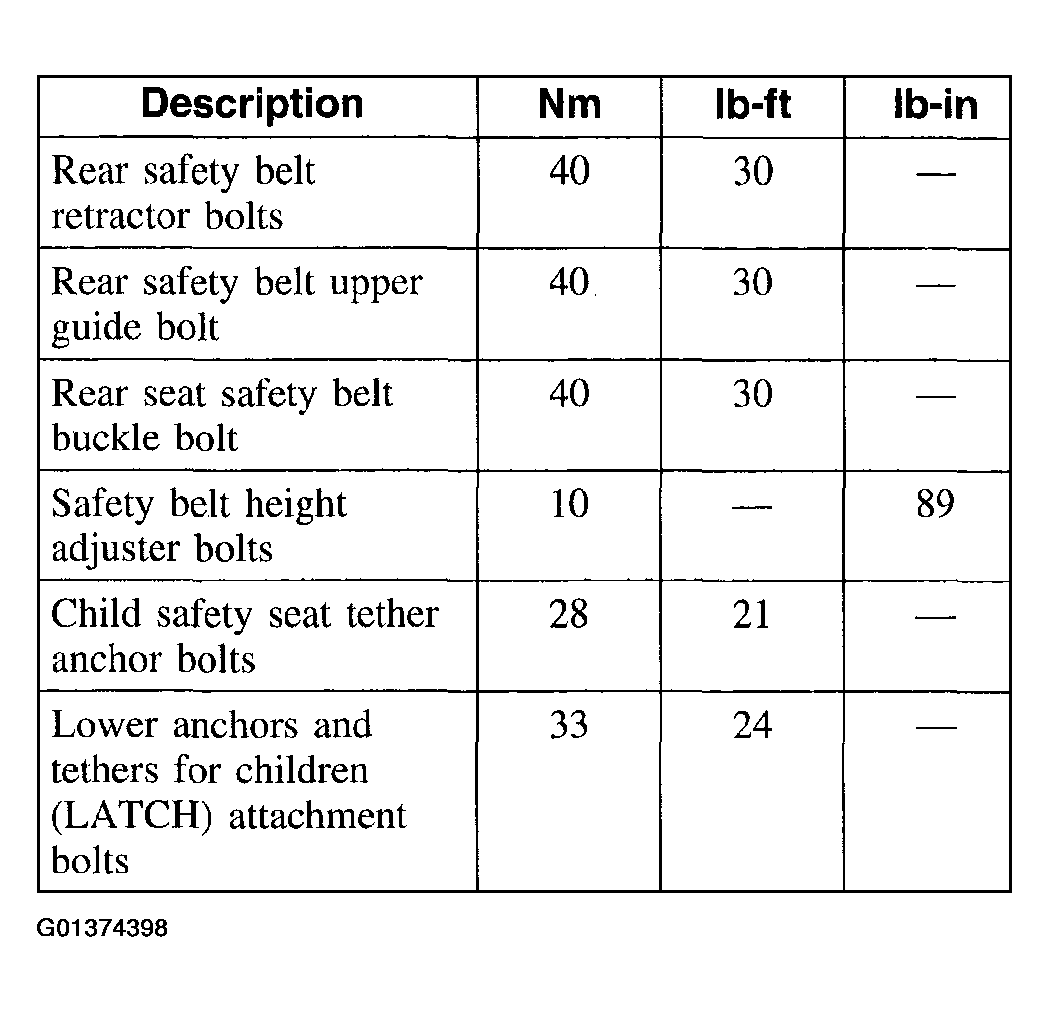

Fig 1: Safety Belt System Torque Specifications (1 Of 2)
Courtesy of FORD MOTOR CO.

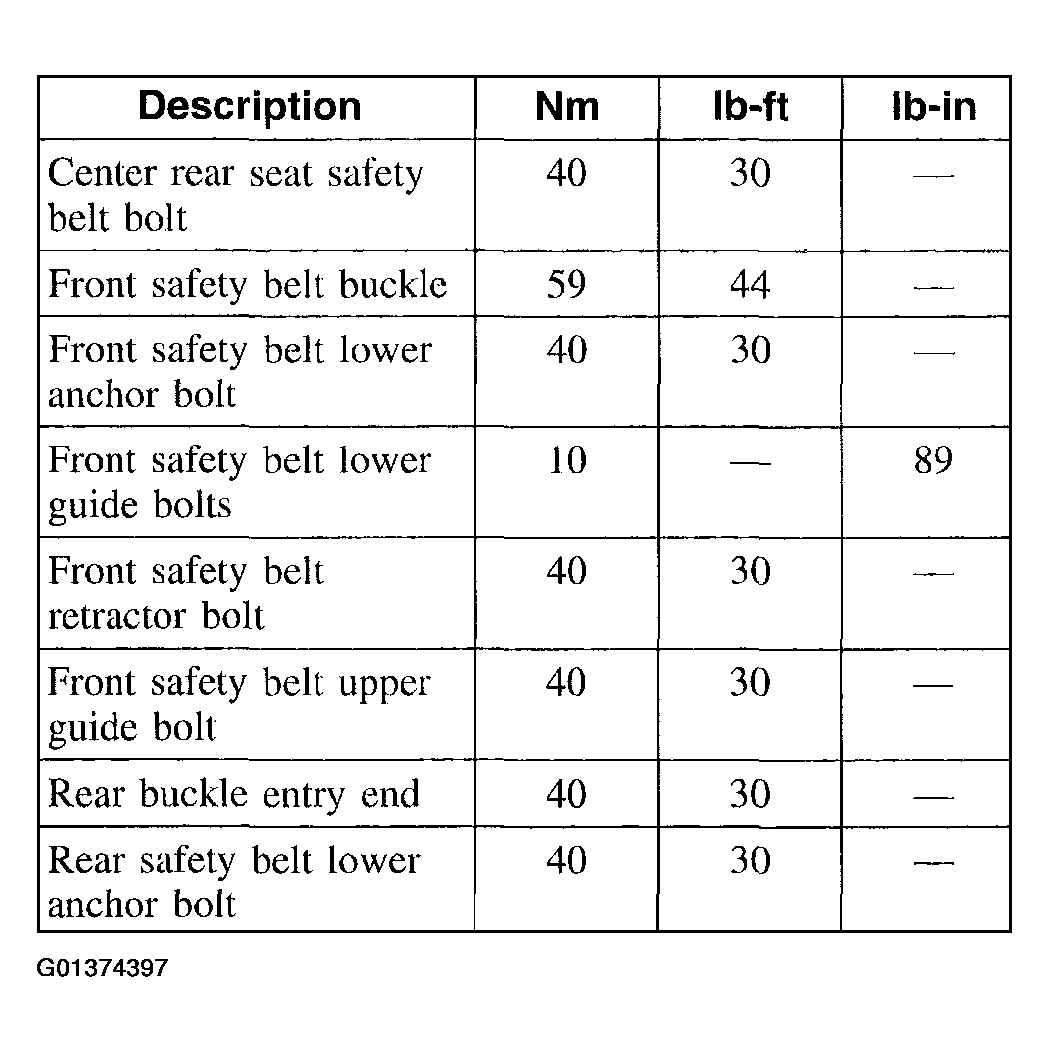

Fig 2: Safety Belt System Torque Specifications (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
