Removal And Installation: Boot: Removal

  1. Remove the tie rod end (3A130); refer to TIE ROD END .
  2. Remove the tie rod end jam nut.
  3. Remove the inner and outer front suspension steering ball stud dust seal clamps.

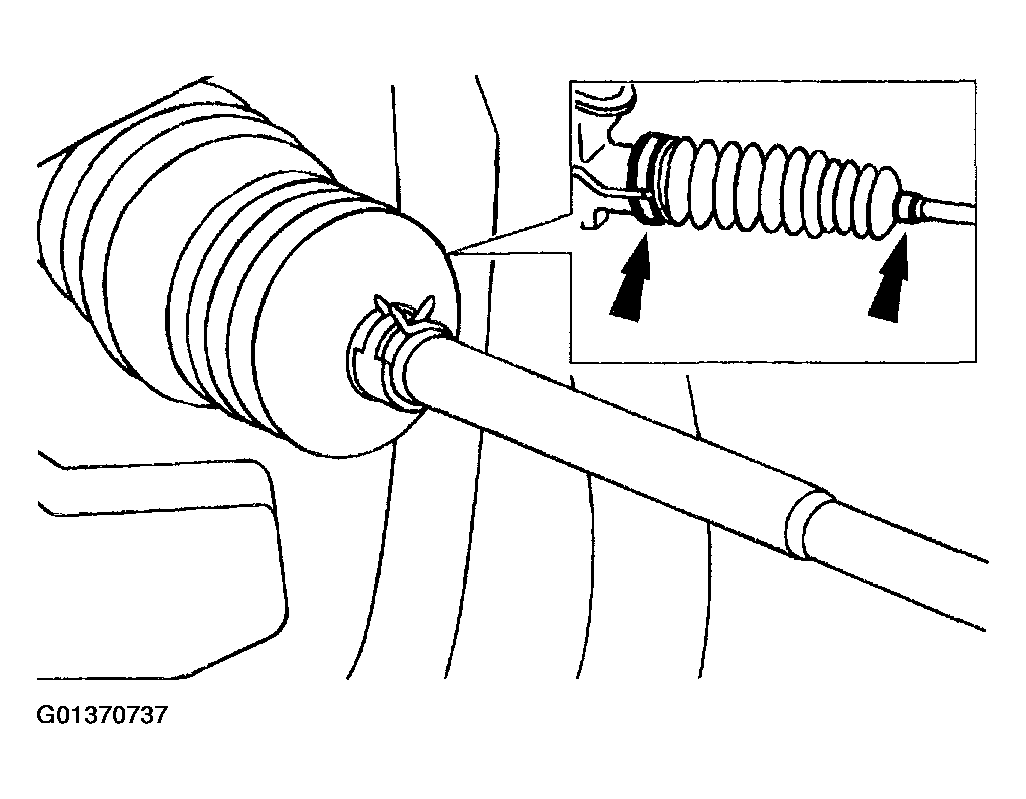

    Fig 1: Removing Steering Ball Stud Dust Seal Clamps
    G01370737Courtesy of FORD MOTOR CO.
  4. Remove the front suspension steering ball stud dust seal (3332).

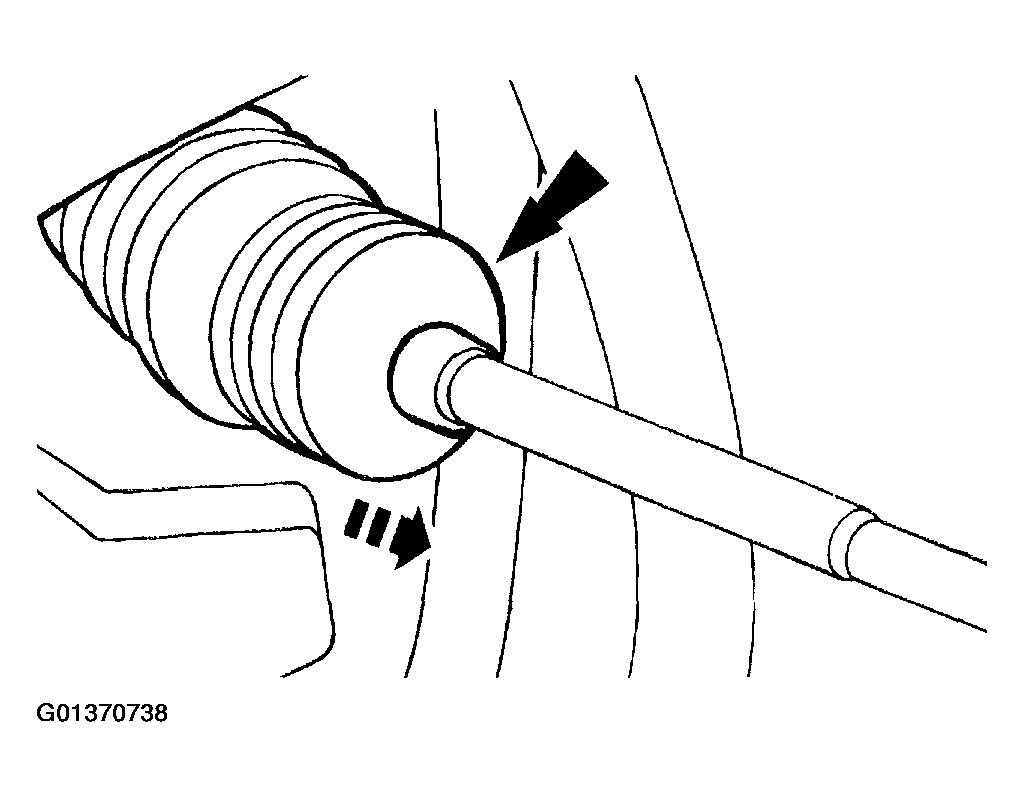

    Fig 2: Removing Front Suspension Steering Ball Stud Dust Seal
    G01370738Courtesy of FORD MOTOR CO.
