Removal And Installation: Coupling: Removal

  1. Remove the steering column; refer to COLUMN .
  2. Remove the (A) steering column shaft to steering column gear input shaft coupling bolt and remove the (B) steering column intermediate shaft coupling (3A525).

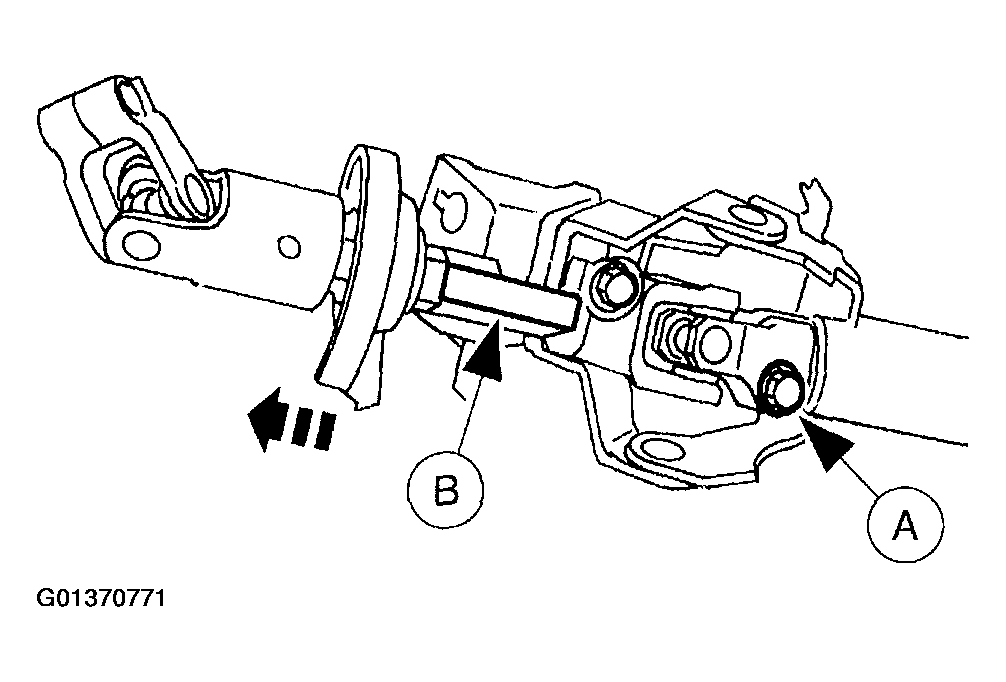

    Fig 1: Removing Steering Column Intermediate Shaft Coupling
    G01370771Courtesy of FORD MOTOR CO.
