Disassembled Views - Differential Components

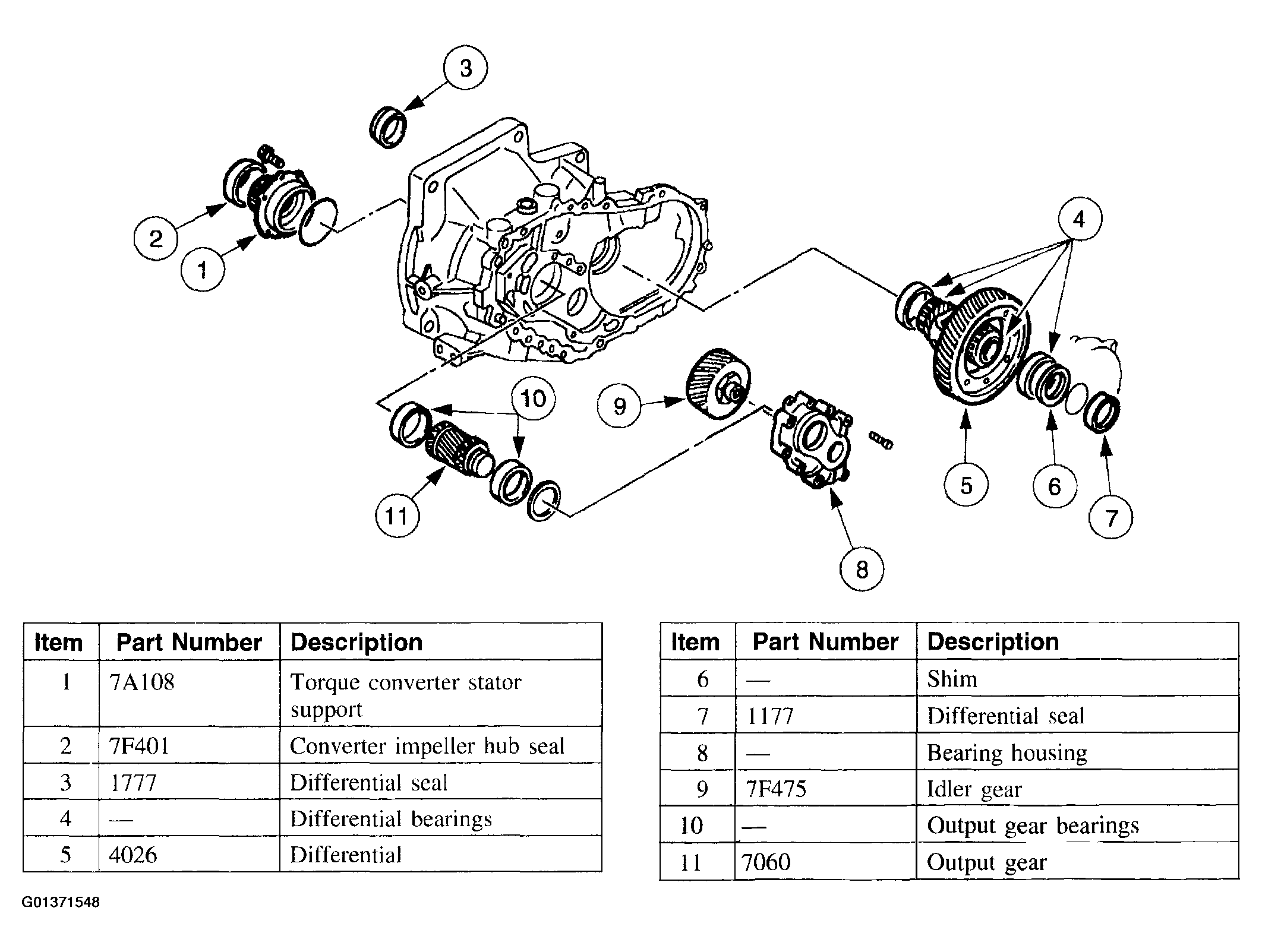

Fig 1: Exploded View Of Differential Components
G01371548Courtesy of FORD MOTOR CO.
