ZX2 Automatic
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transaxle/Transmission
›
Description And Operation
›
Disassembled Views - External Components
Disassembled Views - External Components

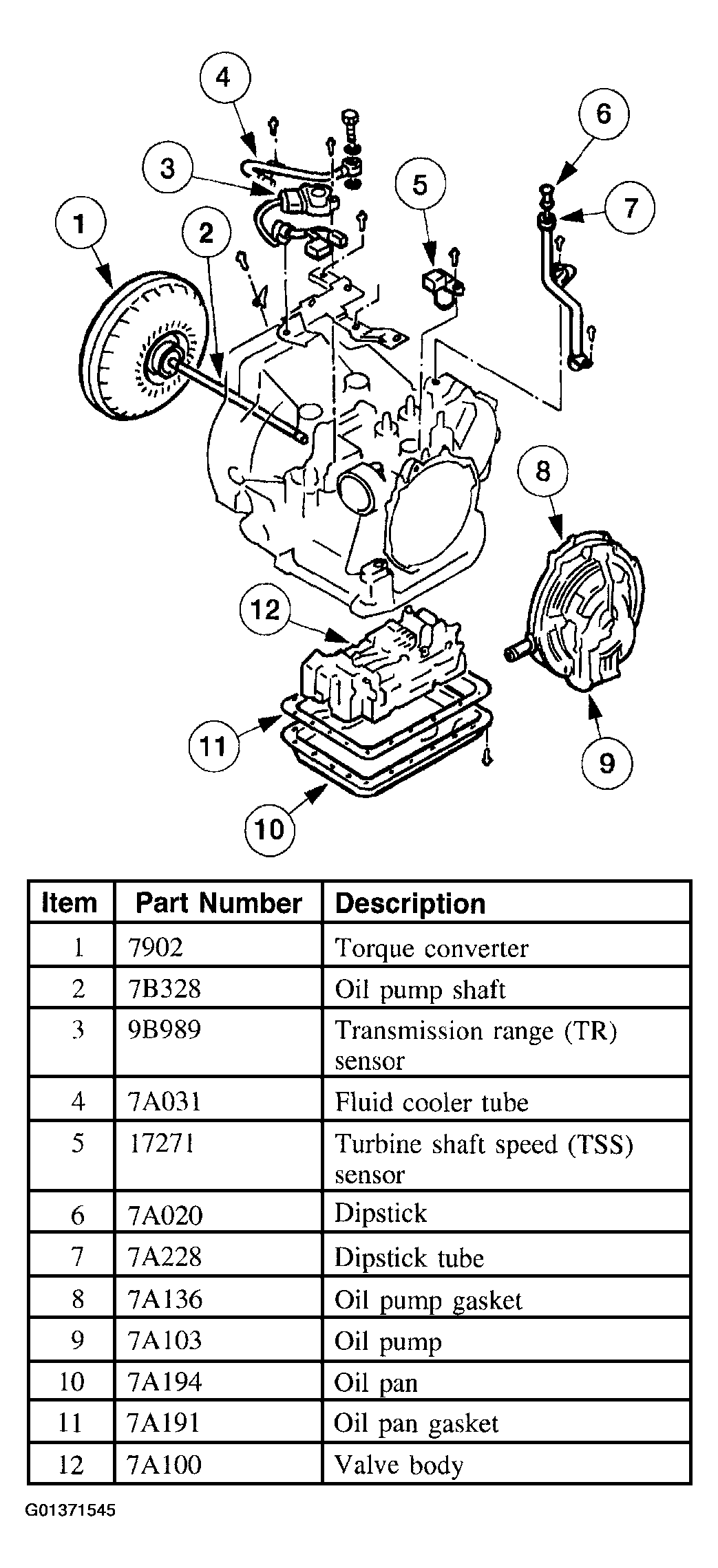

Fig 1: Identifying Automatic Transmission Disassembled Views - External Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
