Disassembled Views - Internal Components
Disassembled Views - Internal Components

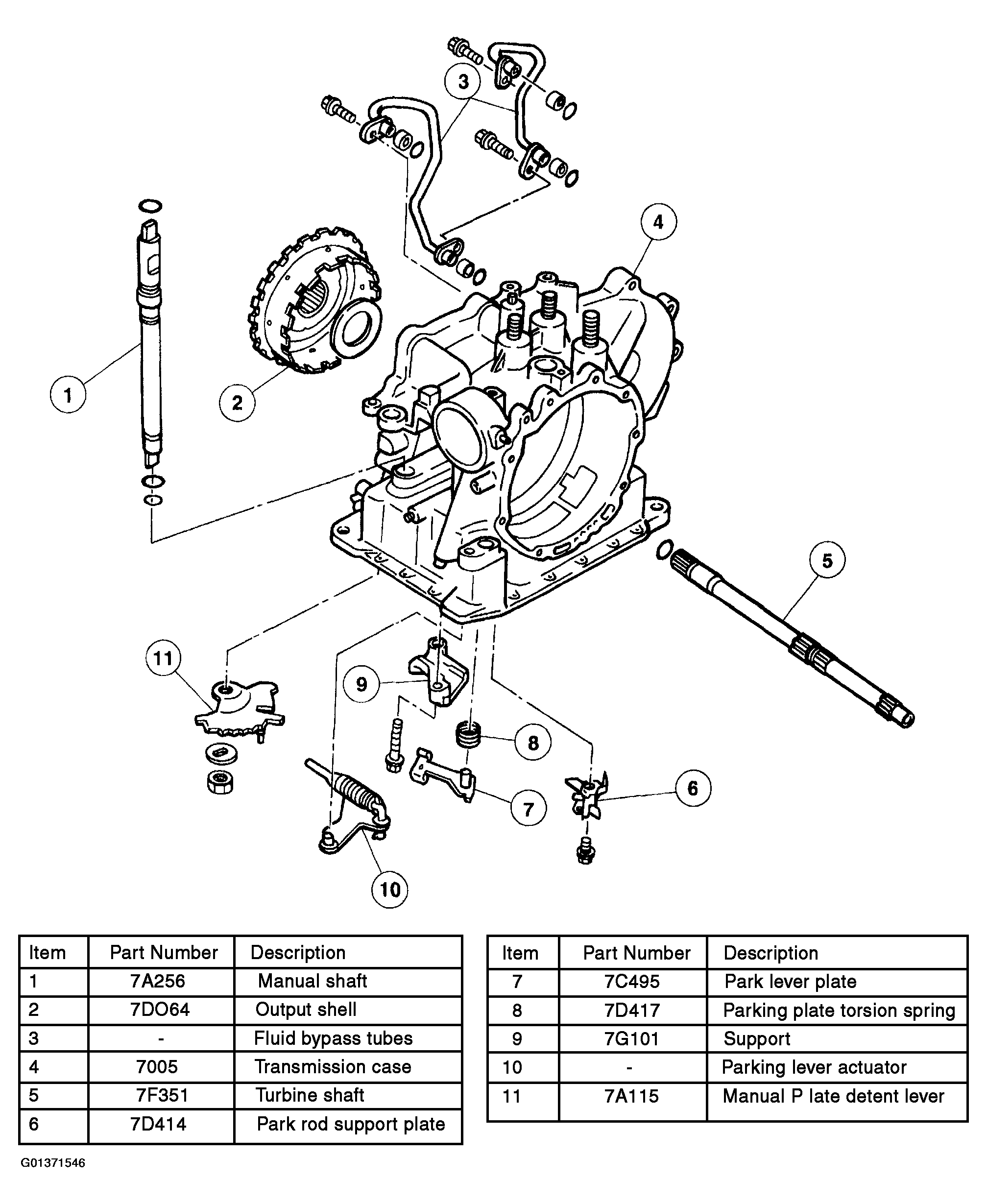

Fig 1: Exploded View Of Automatic Transmission - Internal Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
