Transaxle Connector Layouts

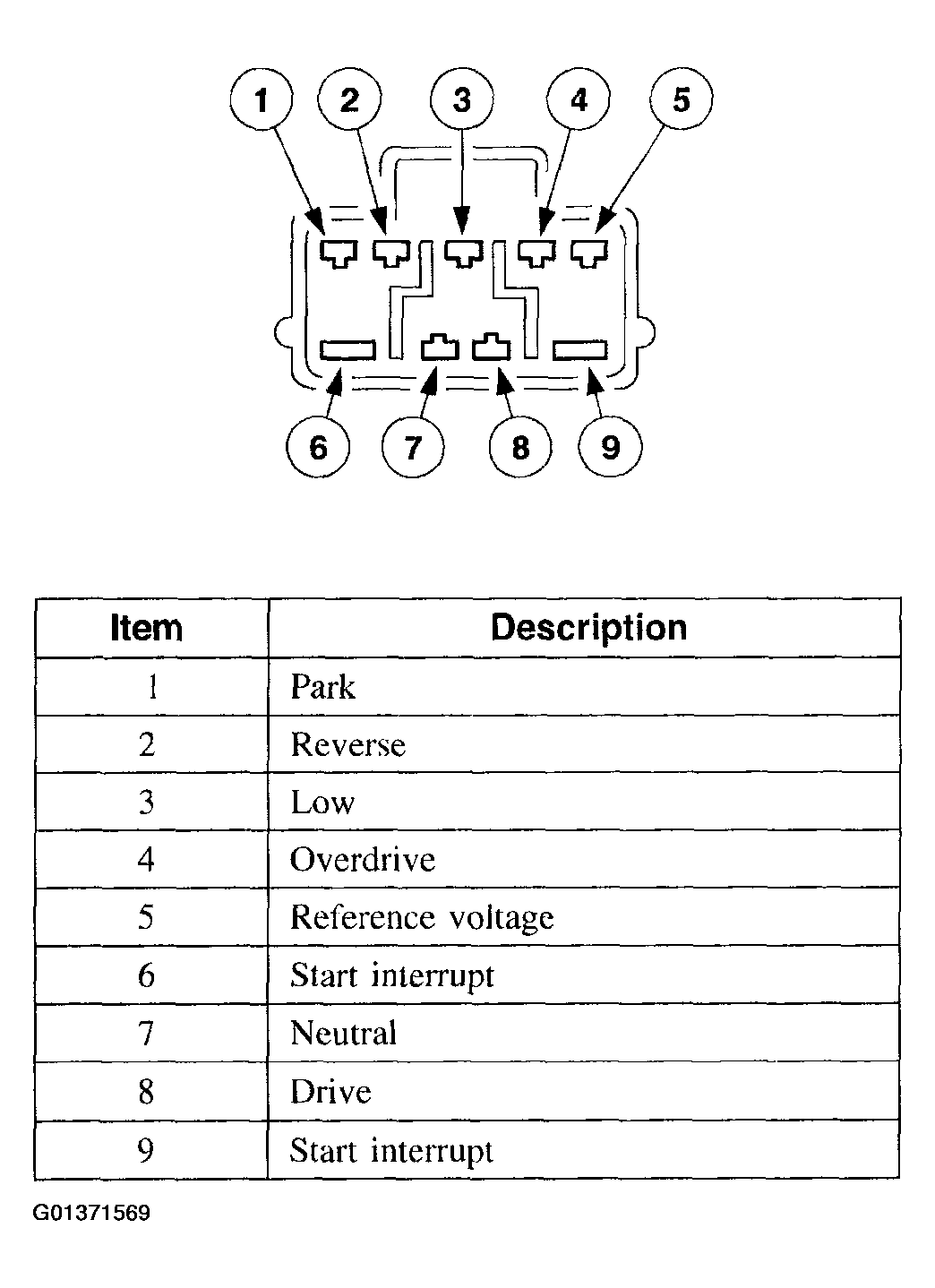

Fig 1: Identifying Digital Transaxle Range Sensor C122 Harness Side
G01371569Courtesy of FORD MOTOR CO.

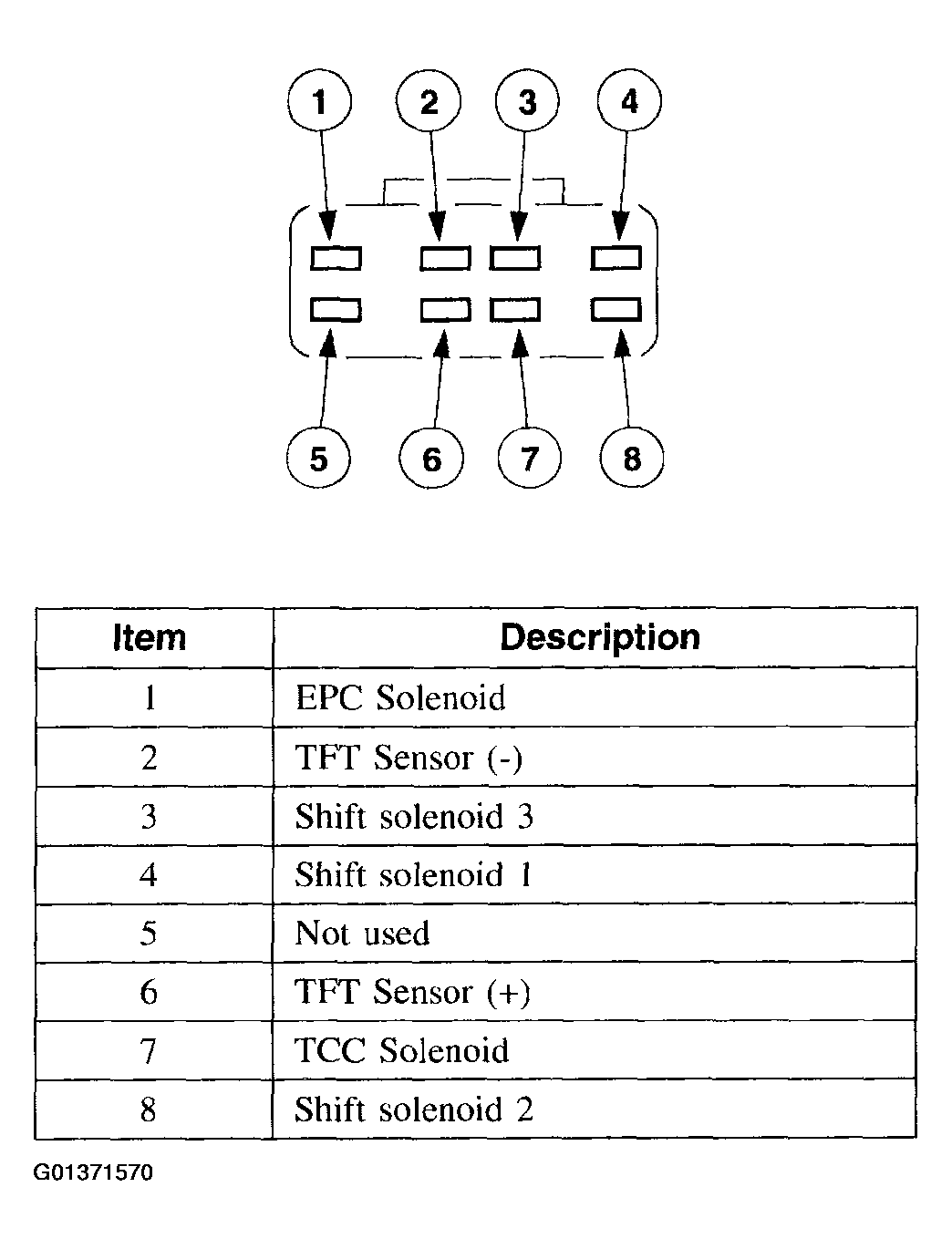

Fig 2: Identifying Transaxle Harness C191 Harness Side
G01371570Courtesy of FORD MOTOR CO.
