Disassembly And Assembly Of Subassemblies: Accumulators: Notes

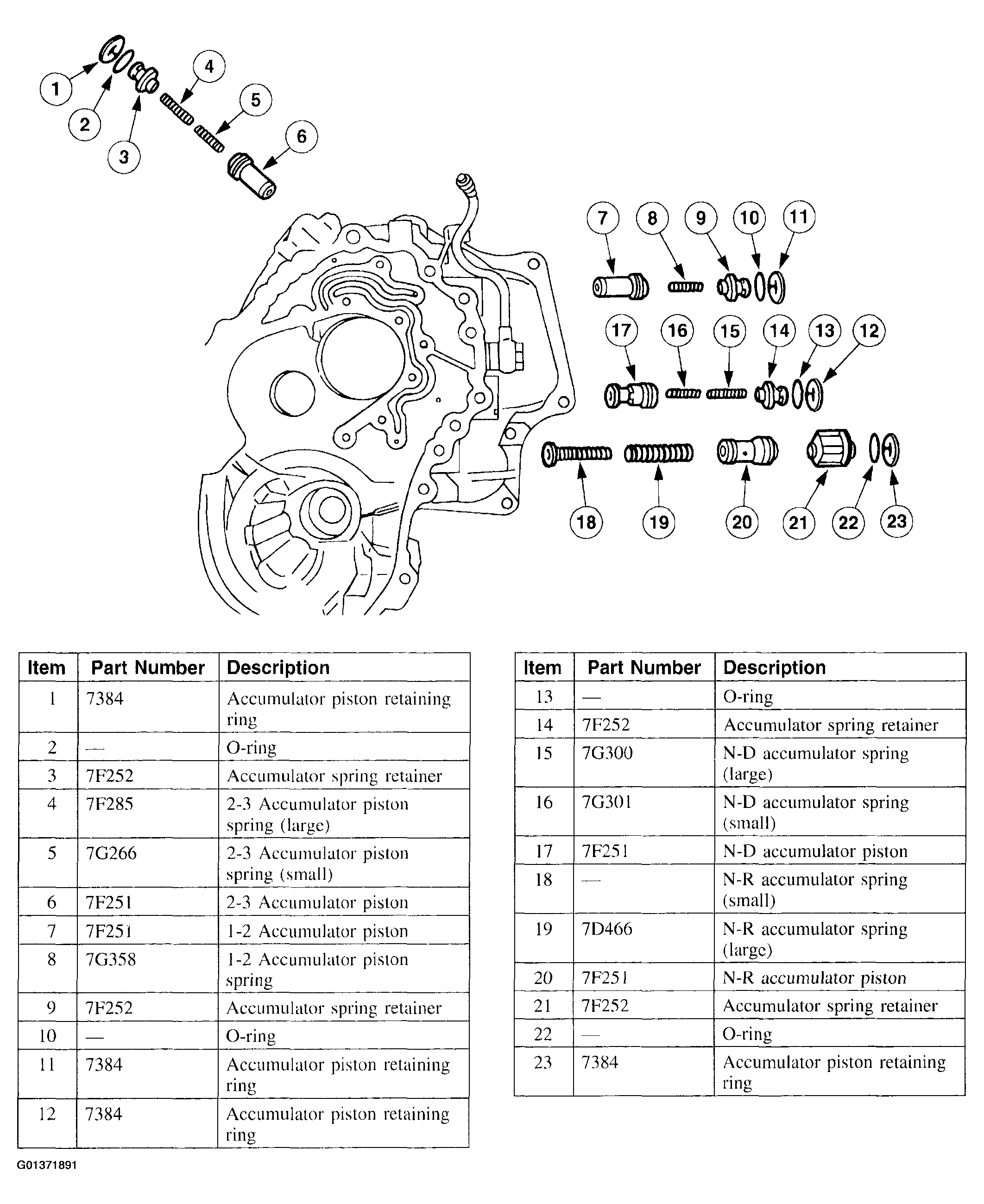

Fig 1: Disassembled View Of Accumulators
G01371891Courtesy of FORD MOTOR CO.
