Special Tool(s)

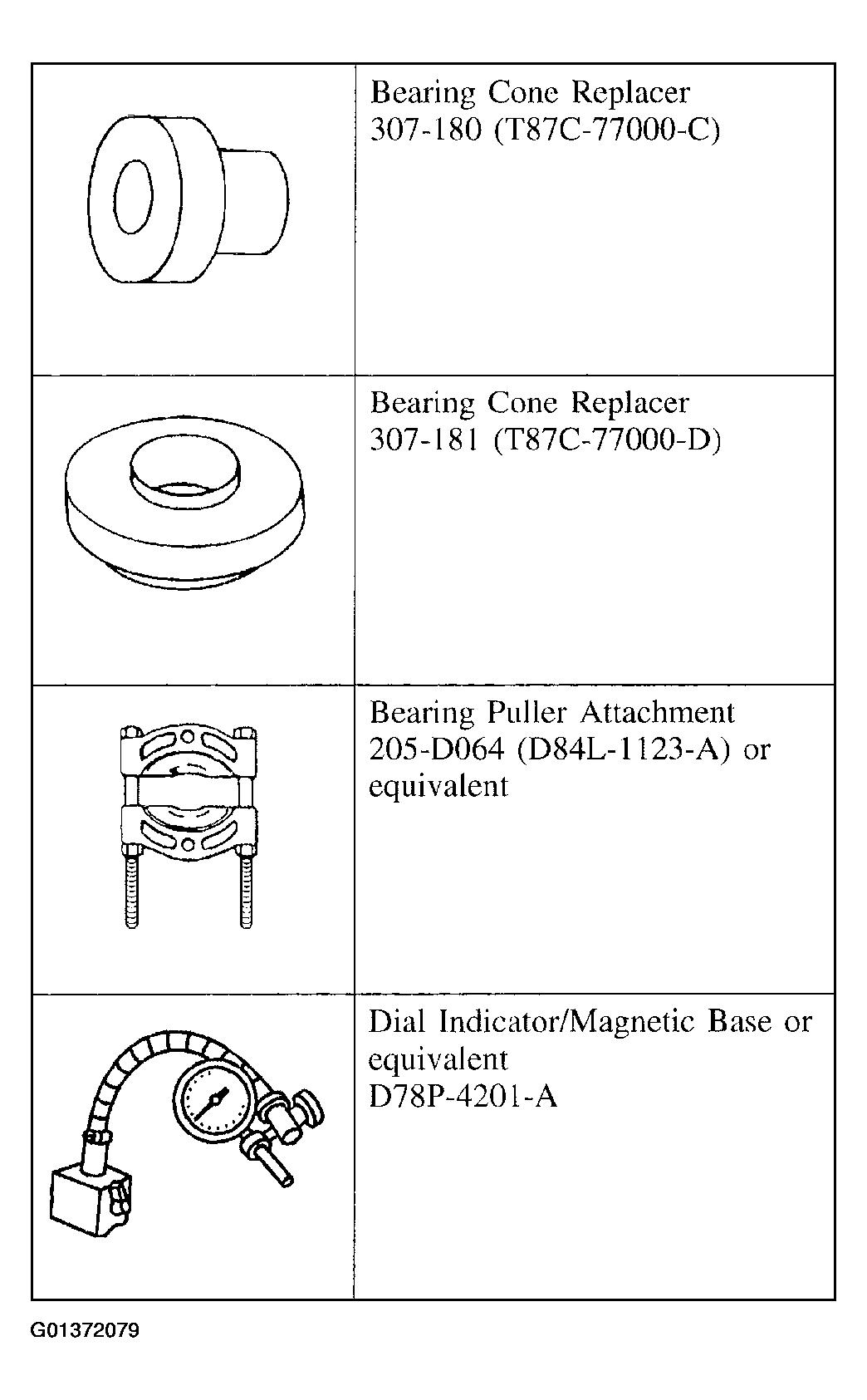

Fig 1: Identifying Special Tool(s) (1 Of 2)
G01372079Courtesy of FORD MOTOR CO.

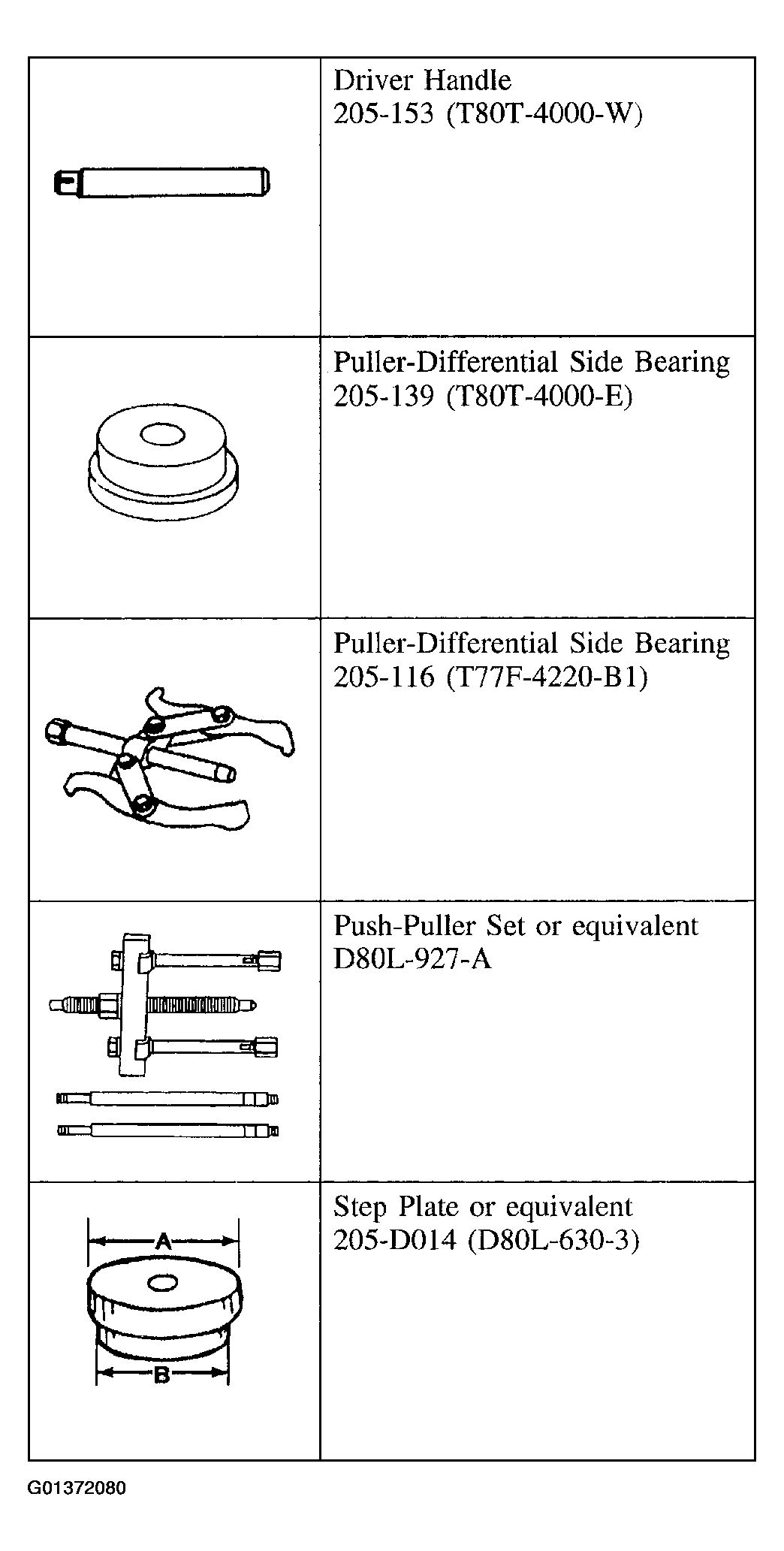

Fig 2: Identifying Special Tool(s) (2 Of 2)
G01372080Courtesy of FORD MOTOR CO.

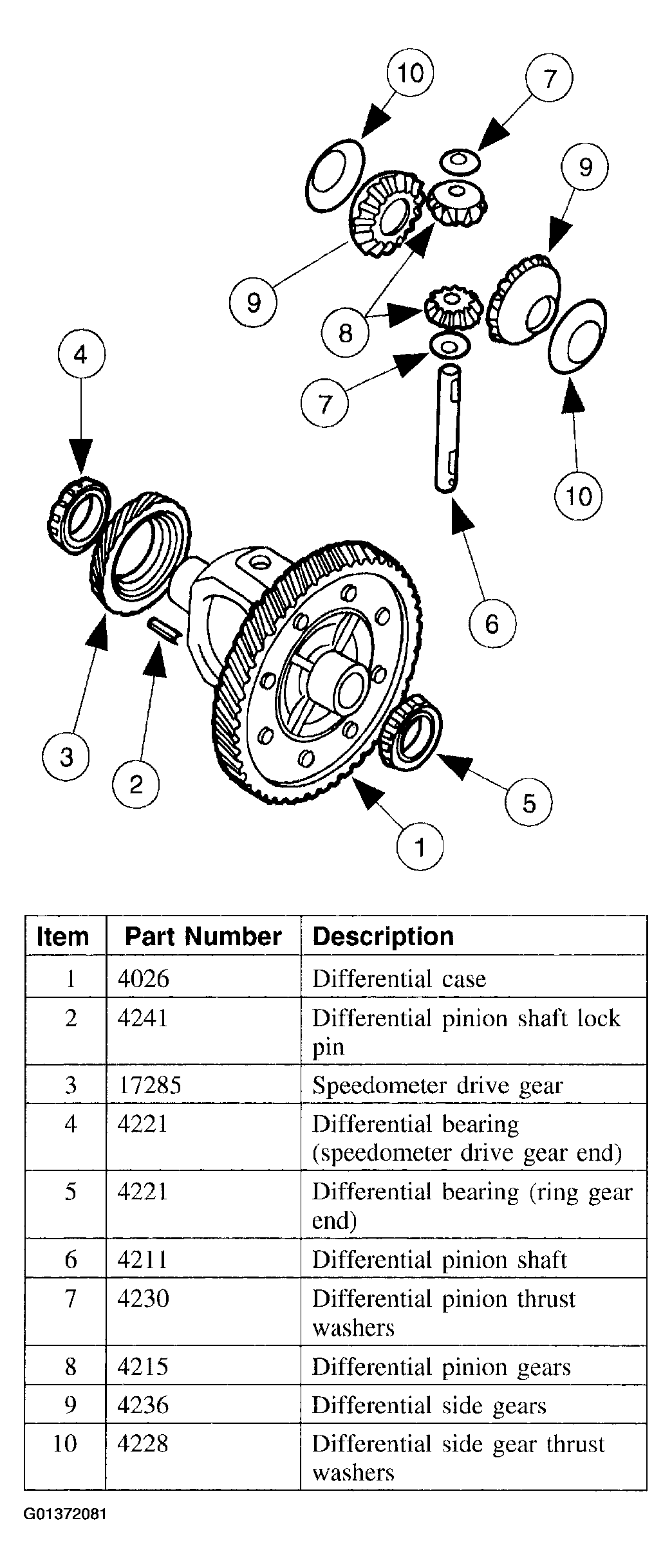

Fig 3: Exploded View Of Differential Components
G01372081Courtesy of FORD MOTOR CO.
