Fluid Pump Assembly: Notes

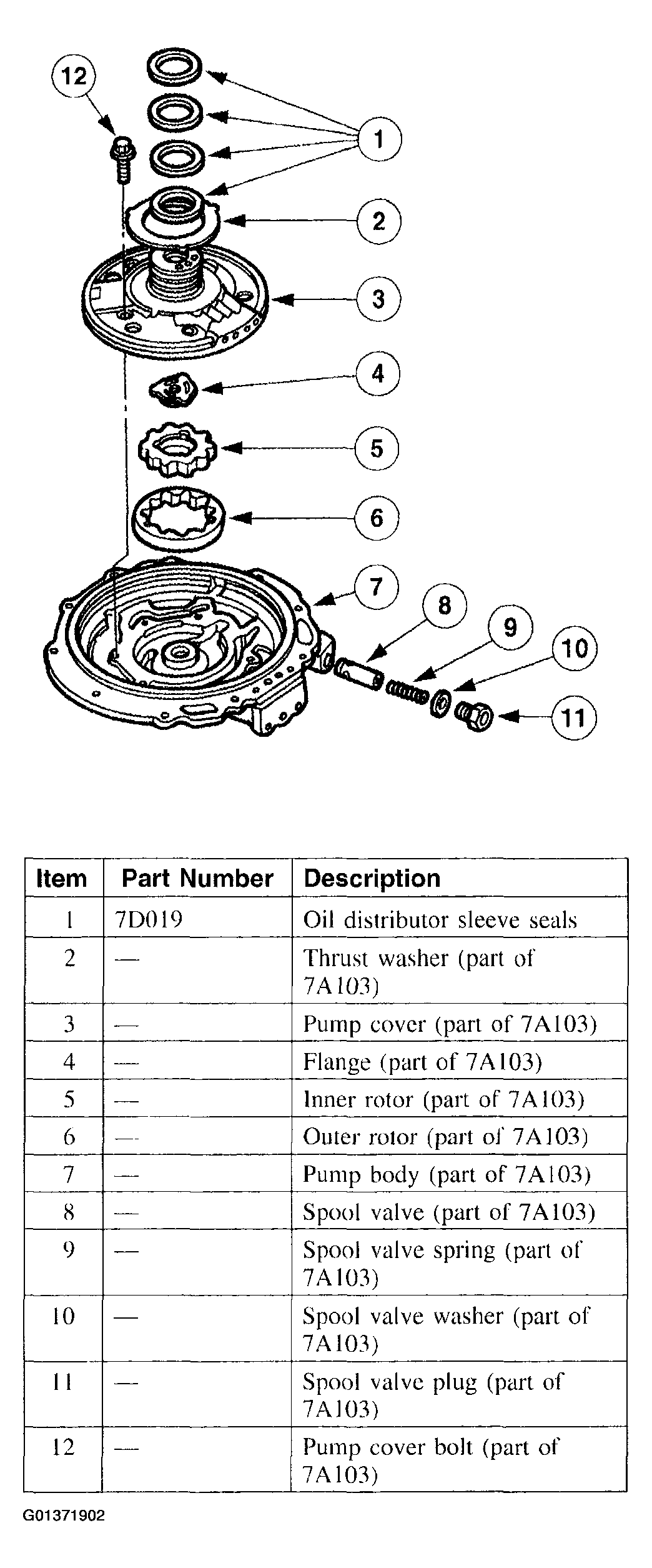

Fig 1: Exploded View Of Fluid Pump Assembly
G01371902Courtesy of FORD MOTOR CO.
