Low/Reverse Clutch Piston Assembly - Clutch: Notes

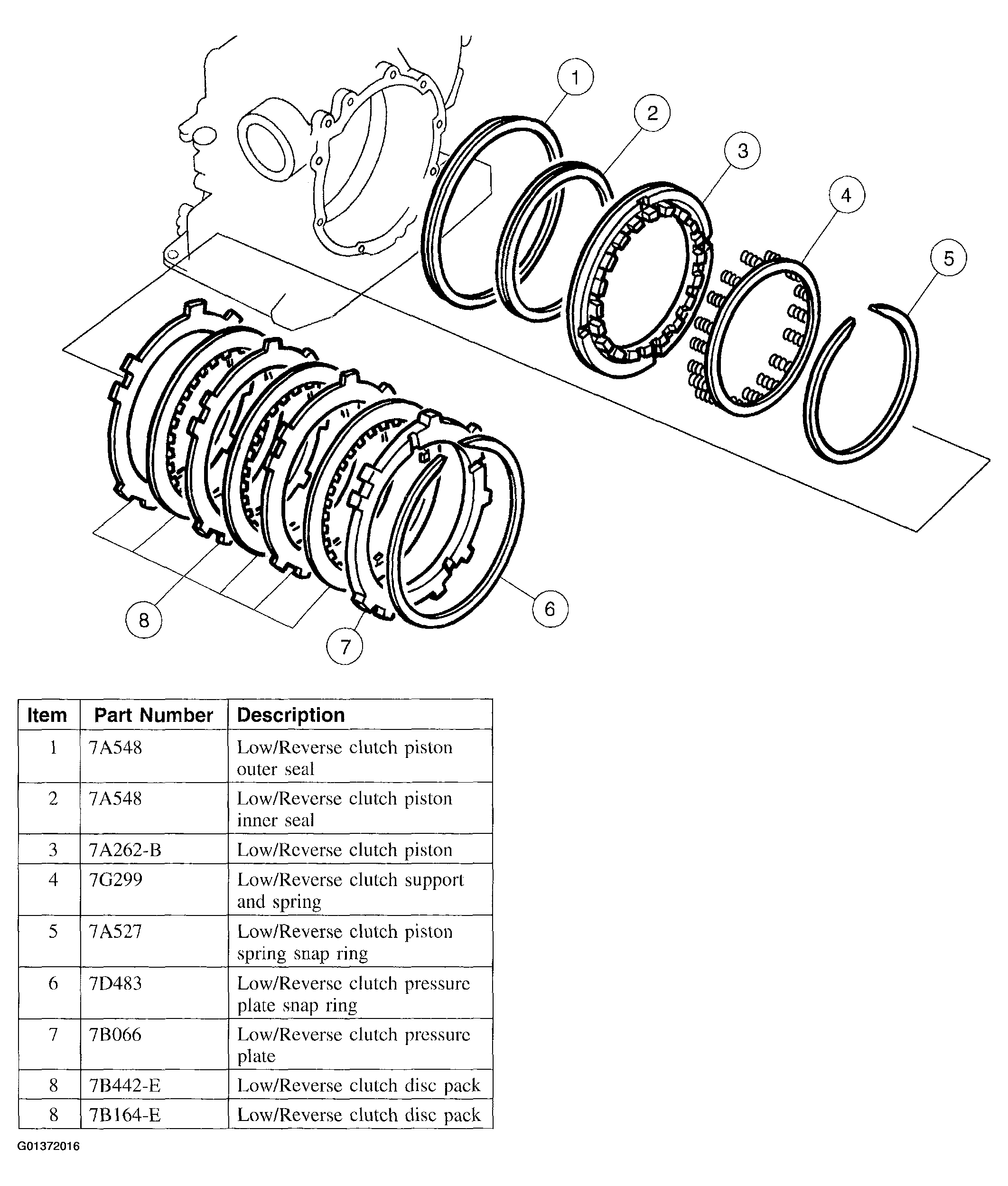

Fig 1: Exploded View Of Low/Reverse Clutch Piston Assembly - Clutch
G01372016Courtesy of FORD MOTOR CO.
