Premain and Lower Control Valve Bodies

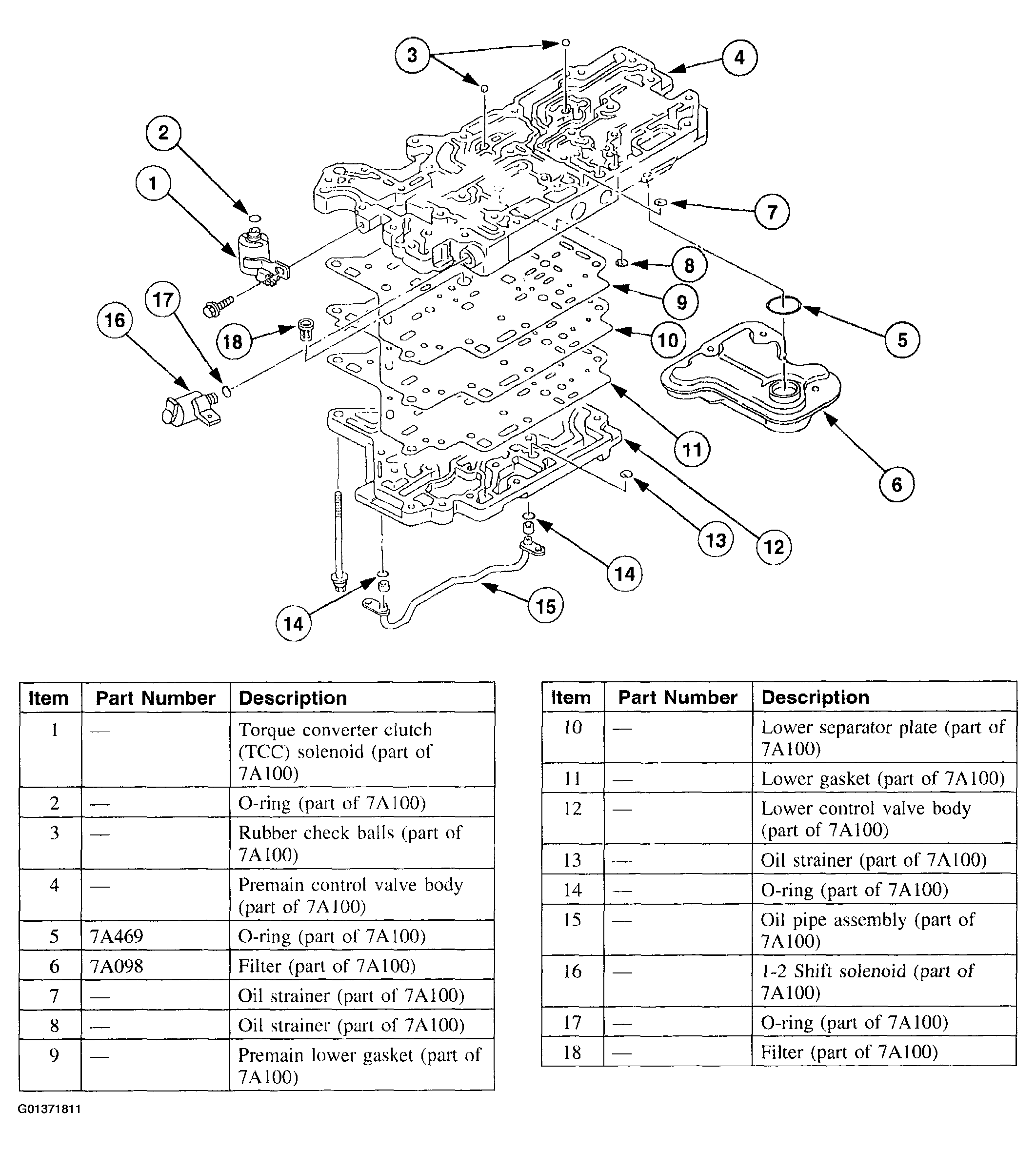

Fig 1: Disassembled View Of Premain and Lower Control Valve Bodies
G01371811Courtesy of FORD MOTOR CO.
