Premain Control Valve Body

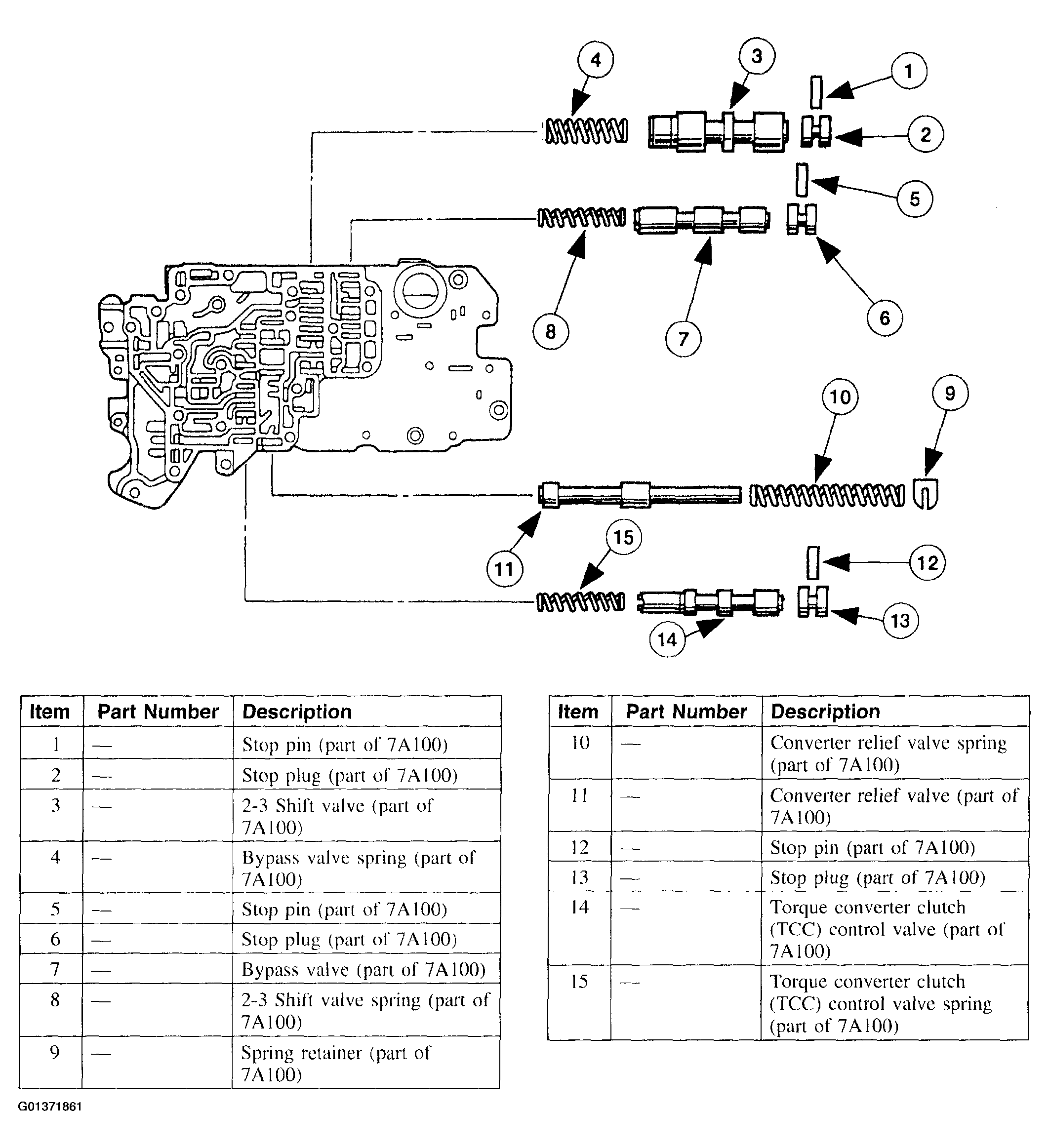

Fig 1: Disassembled View Of Premain Control Valve Body
G01371861Courtesy of FORD MOTOR CO.
