Main Control Valve Body - Upper: Notes

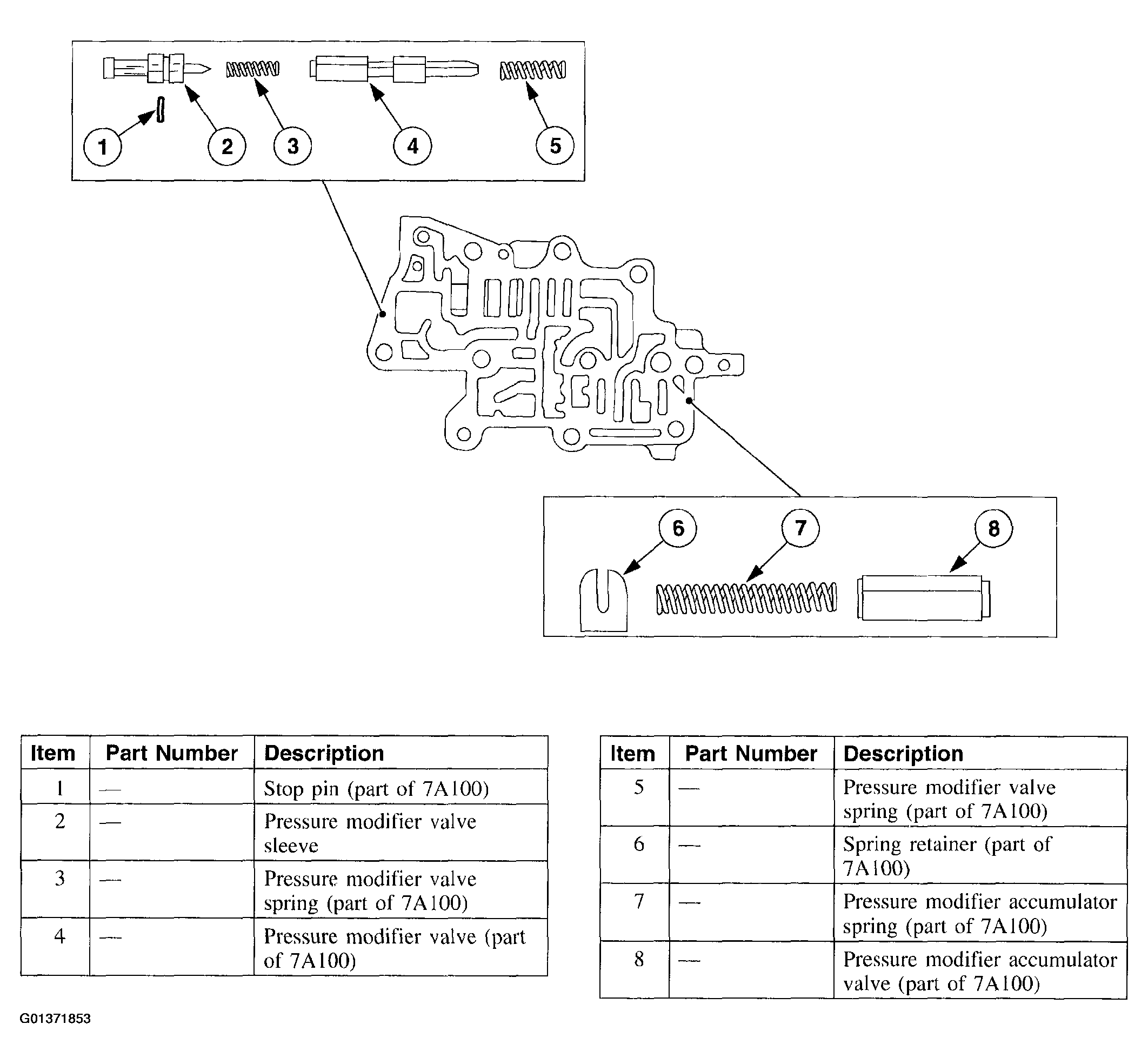

Fig 1: Disassembled View Of Upper Control Valve Body
G01371853Courtesy of FORD MOTOR CO.
