Main Control Valve Body: Notes

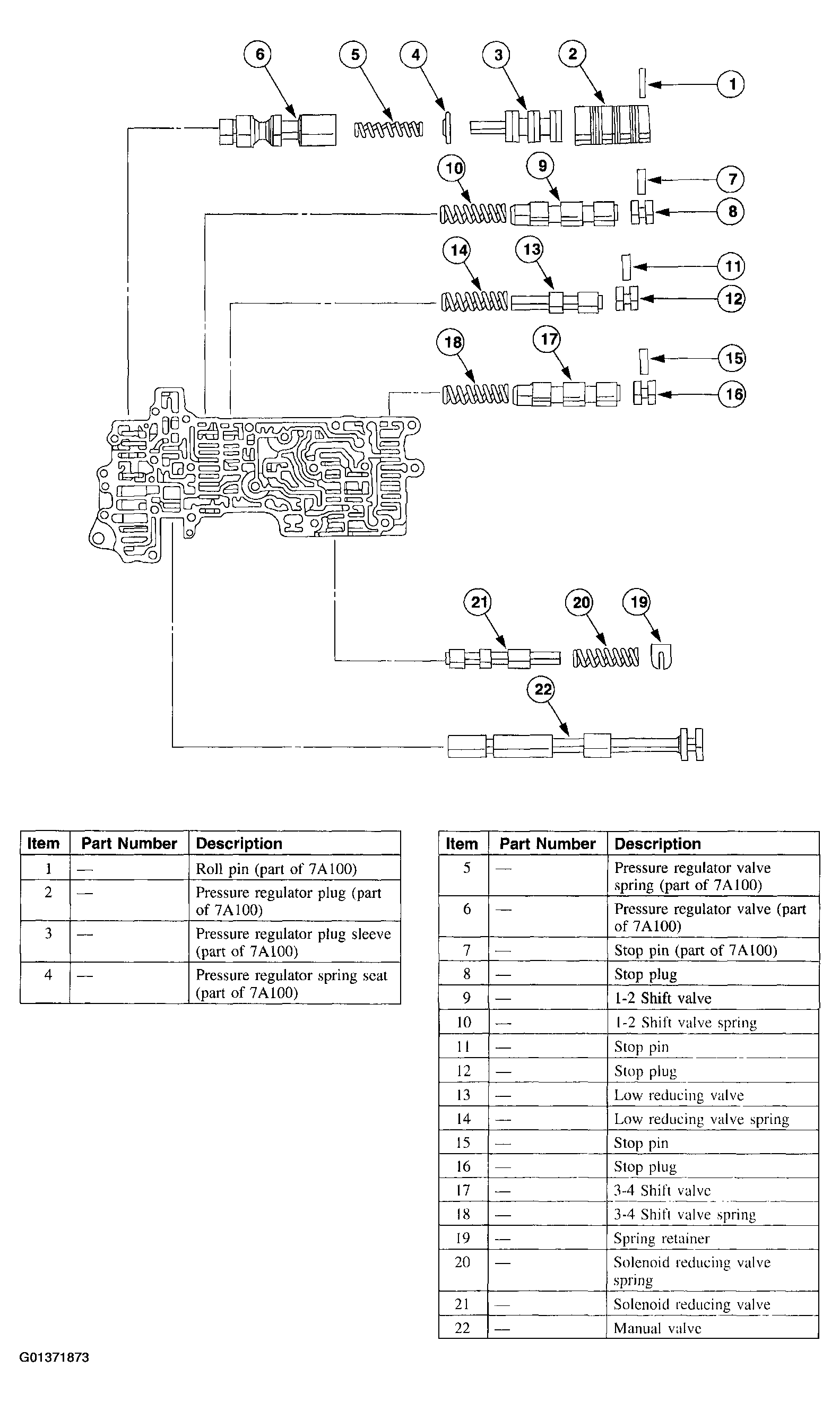

Fig 1: Disassembled View Of Main Control Valve Body
G01371873Courtesy of FORD MOTOR CO.
