Line Pressure Specification Chart

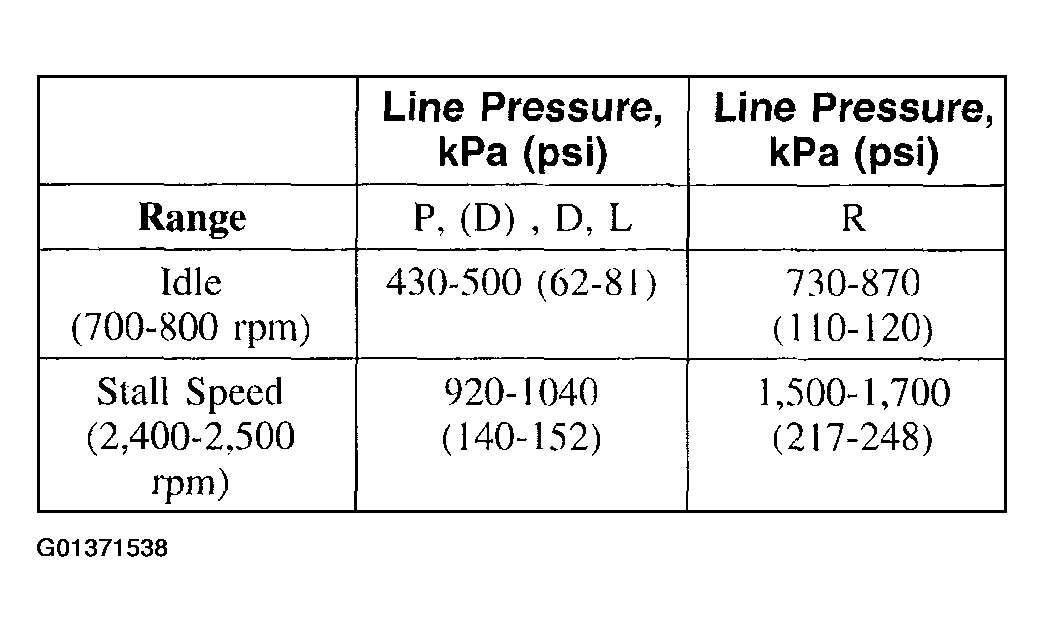

Fig 1: Line Pressure Specification Chart
G01371538Courtesy of FORD MOTOR CO.
