Bezel - Transmission Control Selector Dial: Removal

1. Remove the knob; refer to KNOB - GEARSHIFT LEVER .
2. Remove the floor console; refer to INSTRUMENT CLUSTER AND PANEL ILLUMINATION .
3. Remove the screws from the transmission control selector dial bezel.

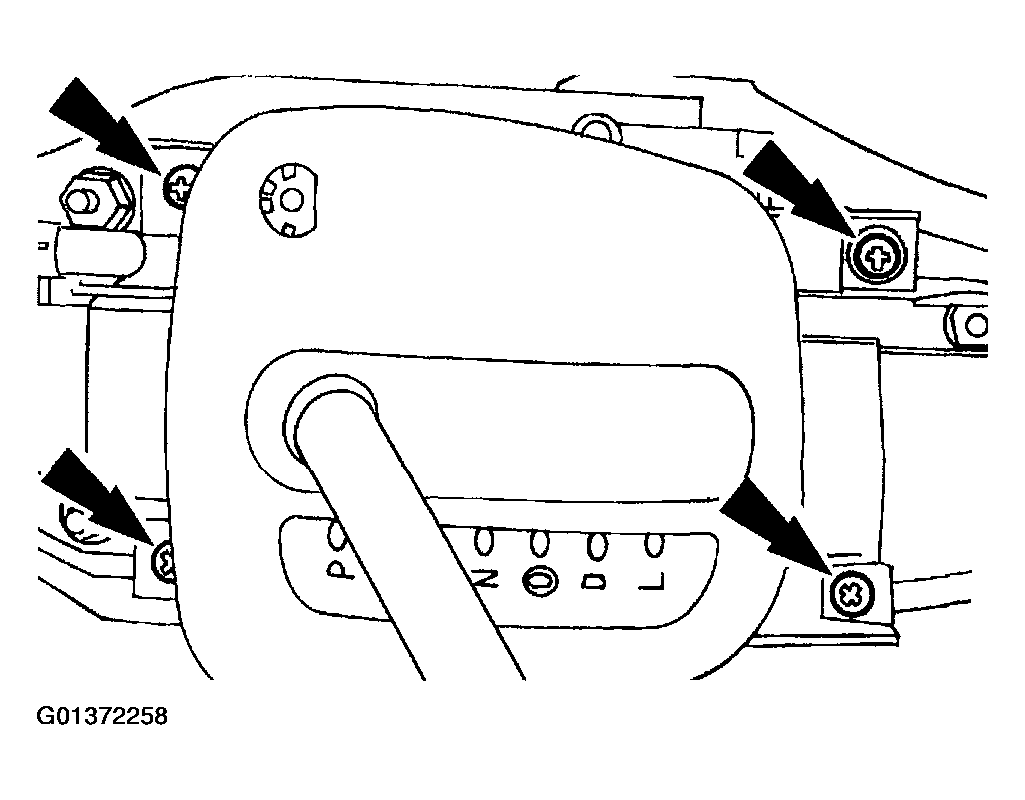

   Fig 1: Removing Screws From Transmission Control Selector Dial Bezel

   Courtesy of FORD MOTOR CO.
4. Disconnect the indicator lamp socket and remove the bezel.

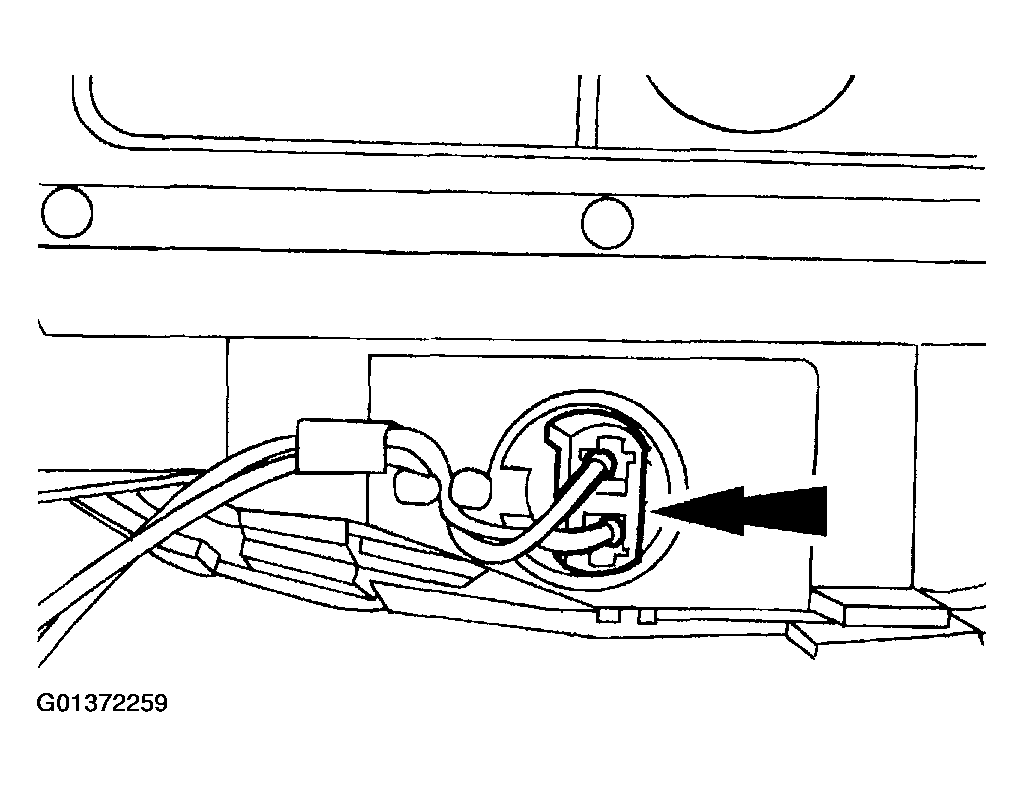

Fig 2: Disconnecting Indicator Lamp Socket And Remove Bezel

Courtesy of FORD MOTOR CO.
