Brake Shift Interlock Actuator: Removal

Remove the transmission control selector dial bezel; refer to BEZEL - TRANSMISSION CONTROL SELECTOR DIAL .
Disconnect the brake shift interlock actuator electrical connector.

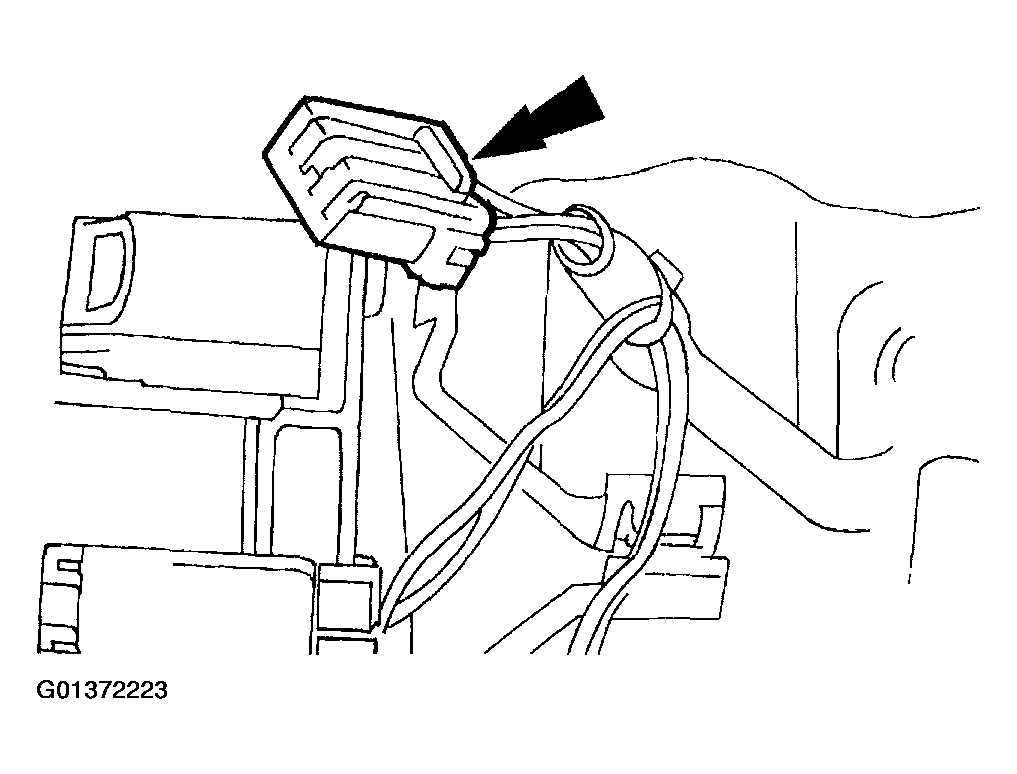

Fig 1: Disconnecting Brake Shift Interlock Actuator Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the park range switch electrical connector.

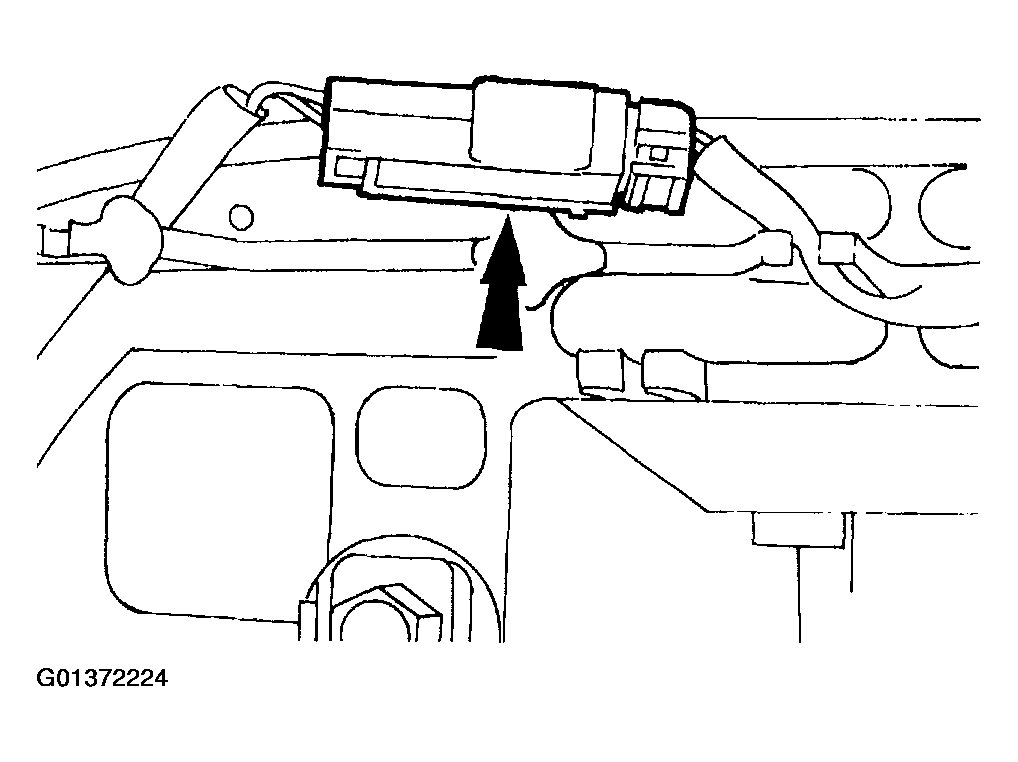

Fig 2: Disconnecting Park Range Switch Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the screws and the brake shift interlock actuator.

Fig 3: Removing Brake Shift Interlock Actuator
Courtesy of FORD MOTOR CO.
