Module - Remote Anti-Theft Personality (Rap): Removal

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .

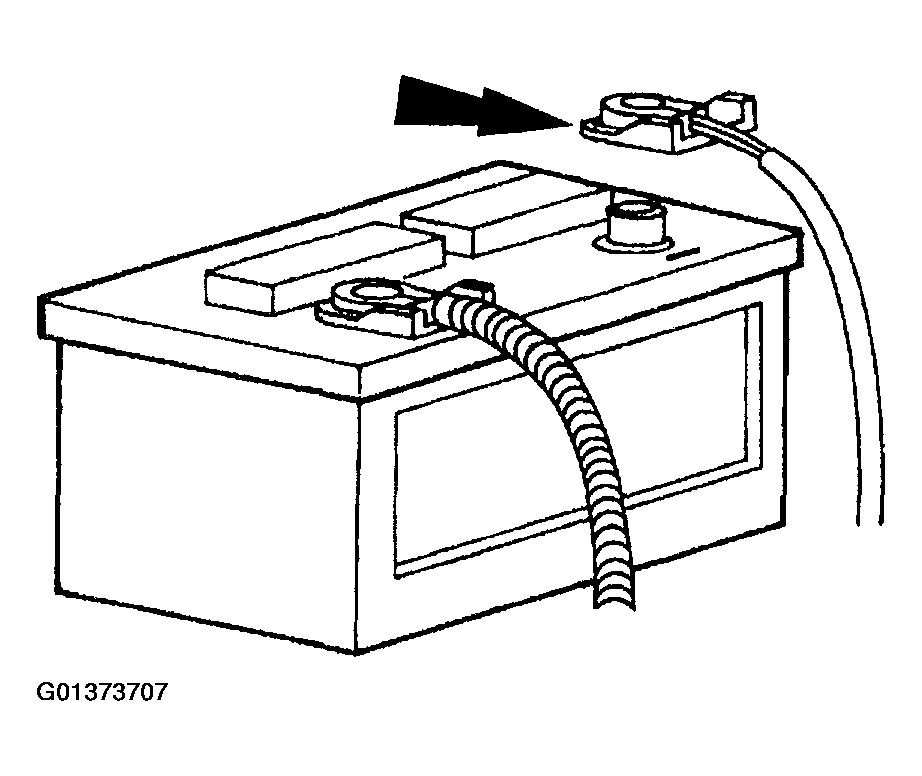

Fig 1: Disconnecting Battery Ground Cable
Courtesy of FORD MOTOR CO.
Remove the quarter trim panel; refer to INTERIOR TRIM AND ORNAMENTATION .
- For Coupe and Sedan, remove the RH trim panel.
Disconnect the two electrical connectors, the ground strap from the sheet metal and the remote anti-theft personality (RAP) module antenna.

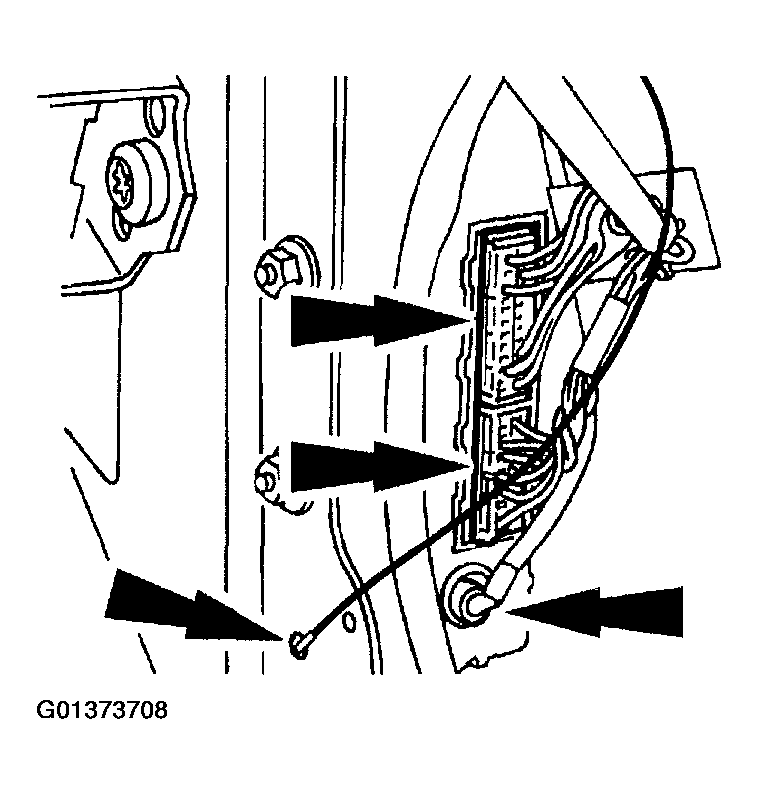

Fig 2: Disconnecting RAP Module
Courtesy of FORD MOTOR CO.

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

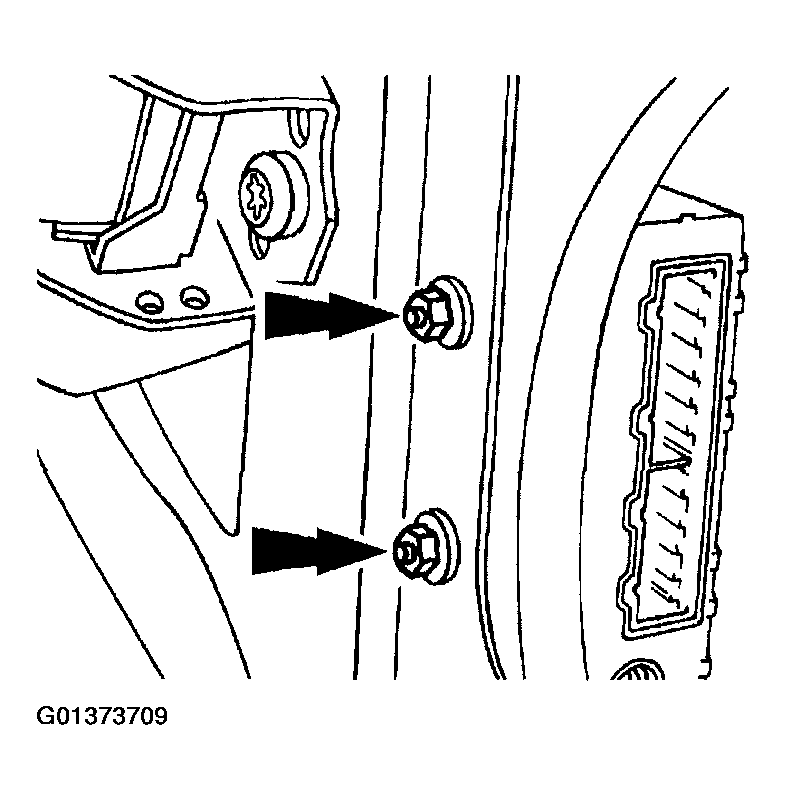

Fig 3: Removing Nuts And RAP Module

Courtesy of FORD MOTOR CO.

Remove the nuts and the RAP module.
Lift the two tabs and remove the RAP module from the bracket.

Fig 4: Removing RAP Module From Bracket
Courtesy of FORD MOTOR CO.
