Module - Warning Chime: Removal

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

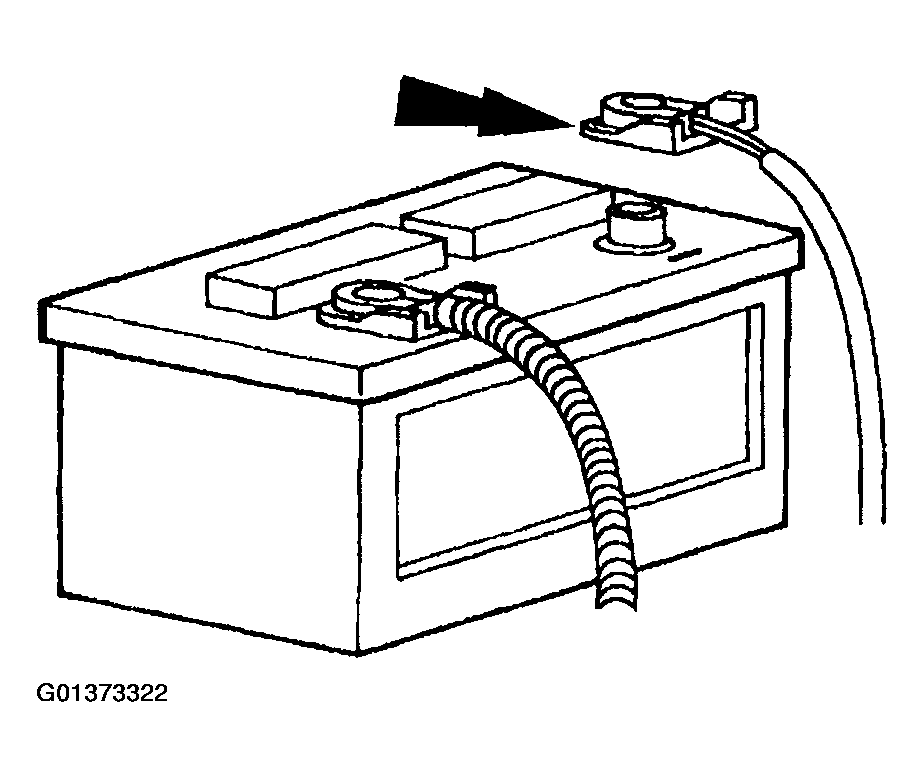

Fig 1: Disconnecting The Battery Ground Cable

Courtesy of FORD MOTOR CO.

Disconnect the battery ground cable (14301).
Remove the scuff plate, the pushpins and the LH cowl side trim panel (02345).

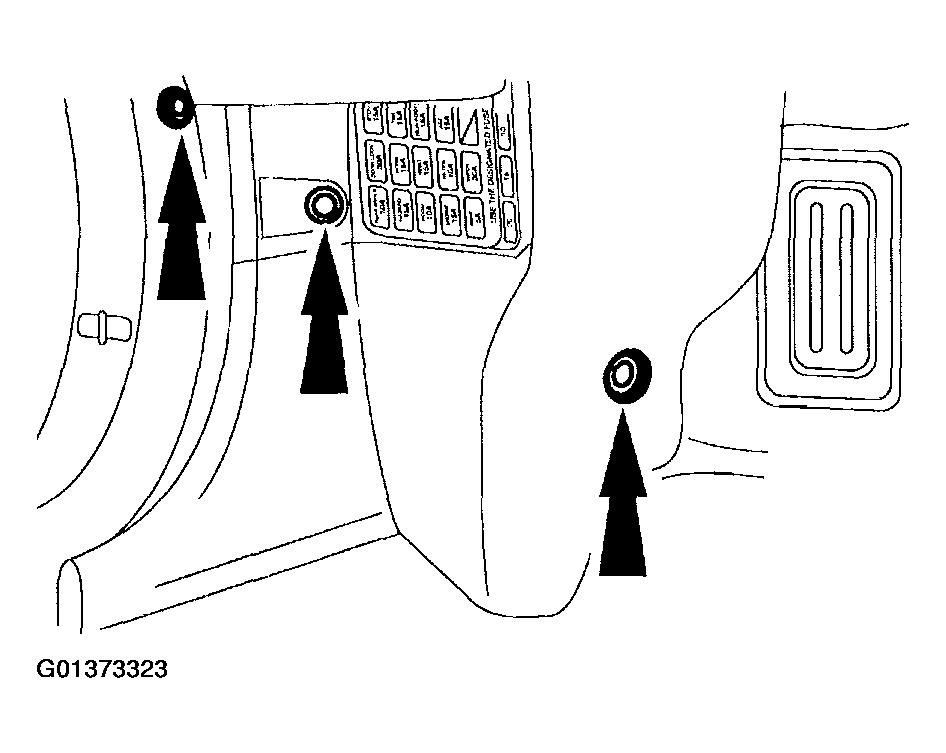

Fig 2: Removing The Scuff Plate And The Pushpins
Courtesy of FORD MOTOR CO.
Remove the nut and disconnect the interior fuse junction panel from the upper mounting tab.

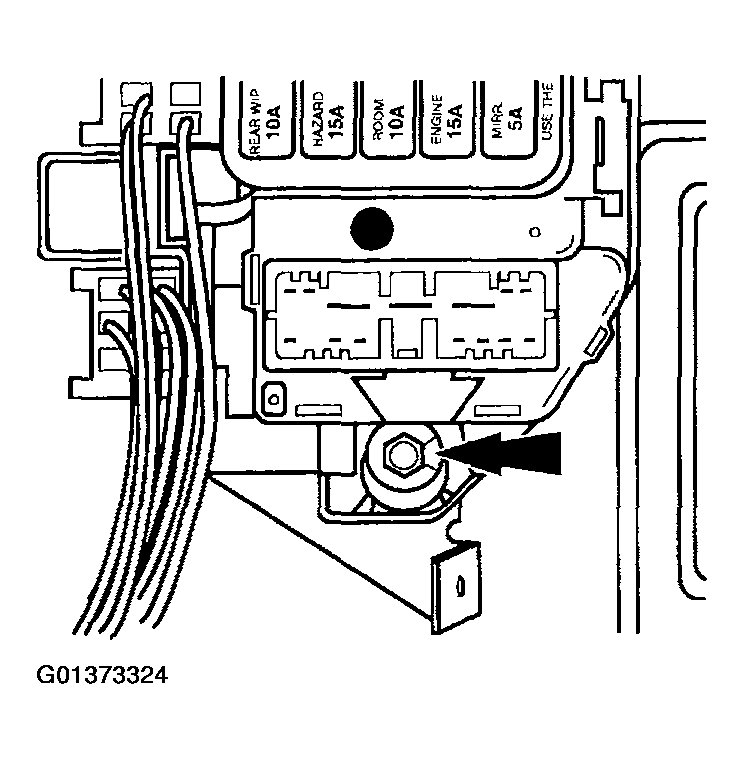

Fig 3: Removing The Nut
Courtesy of FORD MOTOR CO.
Position the fuse junction panel to gain access to the module.
1. Release the retainer clips.
2. Remove the module.

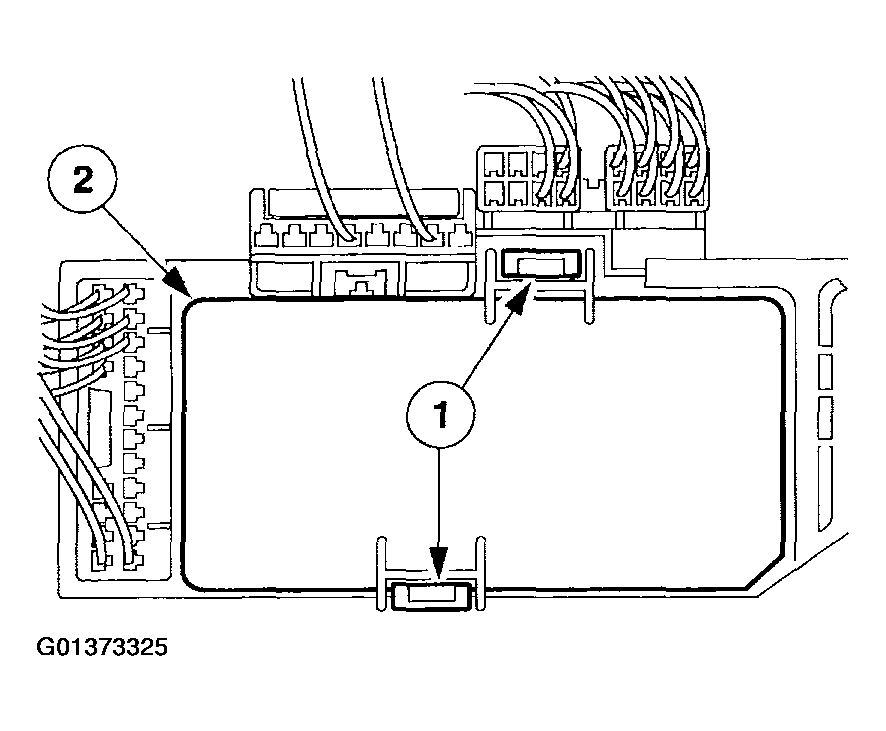

Fig 4: Removing Module
Courtesy of FORD MOTOR CO.
